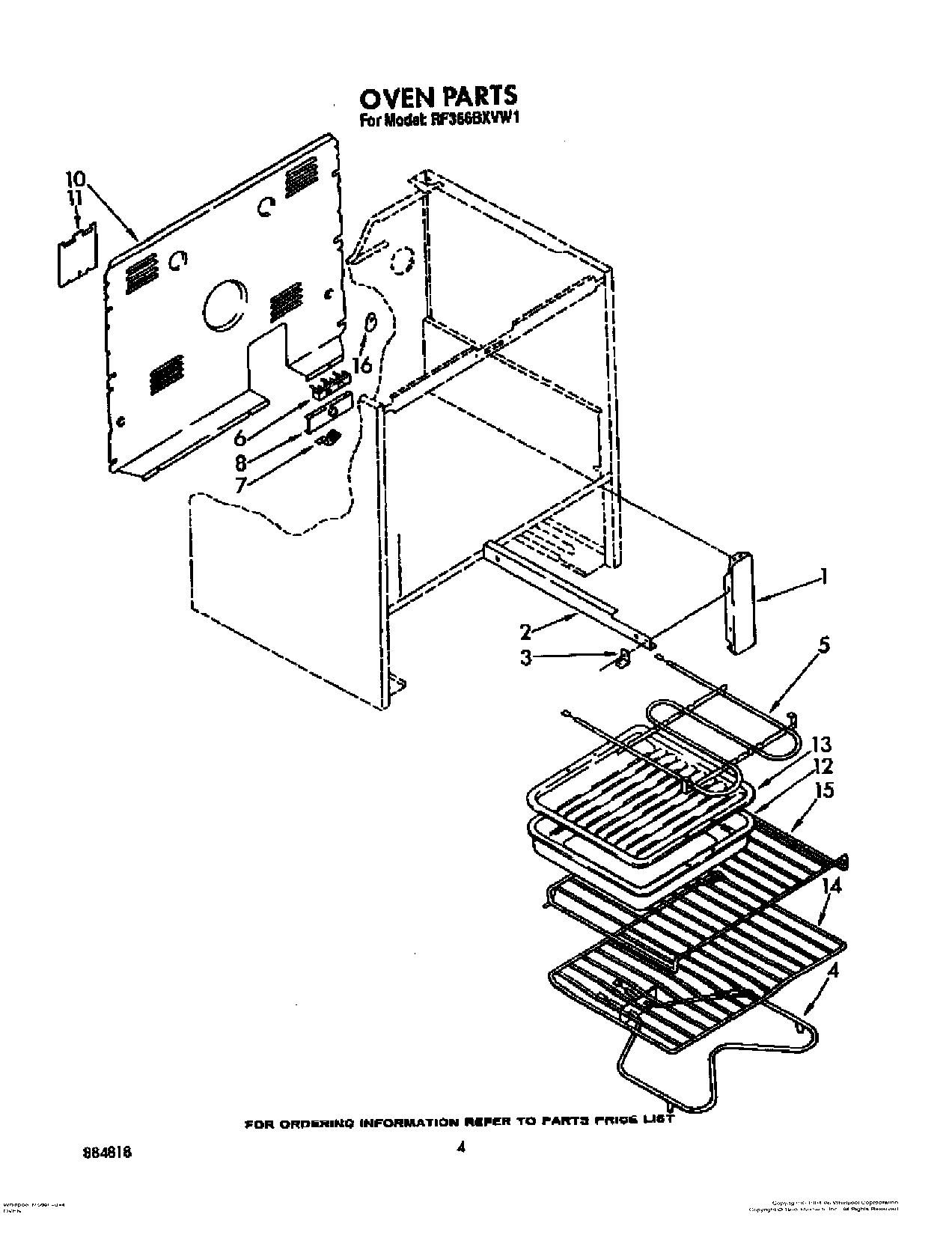

RF366BXVW1 03 – OVEN, OPTIONAL

RF366BXVW1 03 – OVEN, OPTIONAL

Written by

in

RF366BXVW1 03 – OVEN, OPTIONAL

Products

Position	Product
	WPL ARI122886A
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	Rotisserie Kit (RCK 81)
16	Wire (14 Ga. 150 c Green)
16	dressing, element
16	Screw, 10A x 1/2 (2) (Black)
16	Wire, 25“ Roll (White 14 GA.)
16	Wire (14 Ga. 150 c Orange)
16	Leveler (Thinner) (2oz.)
16	Wire (14 Ga. 150 c Yellow)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	WPL 311982
16	1
16	Enamel, Coffee (1 Qt. Uncut)
16	350930 Whirlpool White Spray Paint
16	Grease
16	8212471 Whirlpool Oven Paint
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	WPL 72112
16	350942 Whirlpool Spray Paint
16	WPL 310433
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	350956 Whirlpool Spray Assembly
