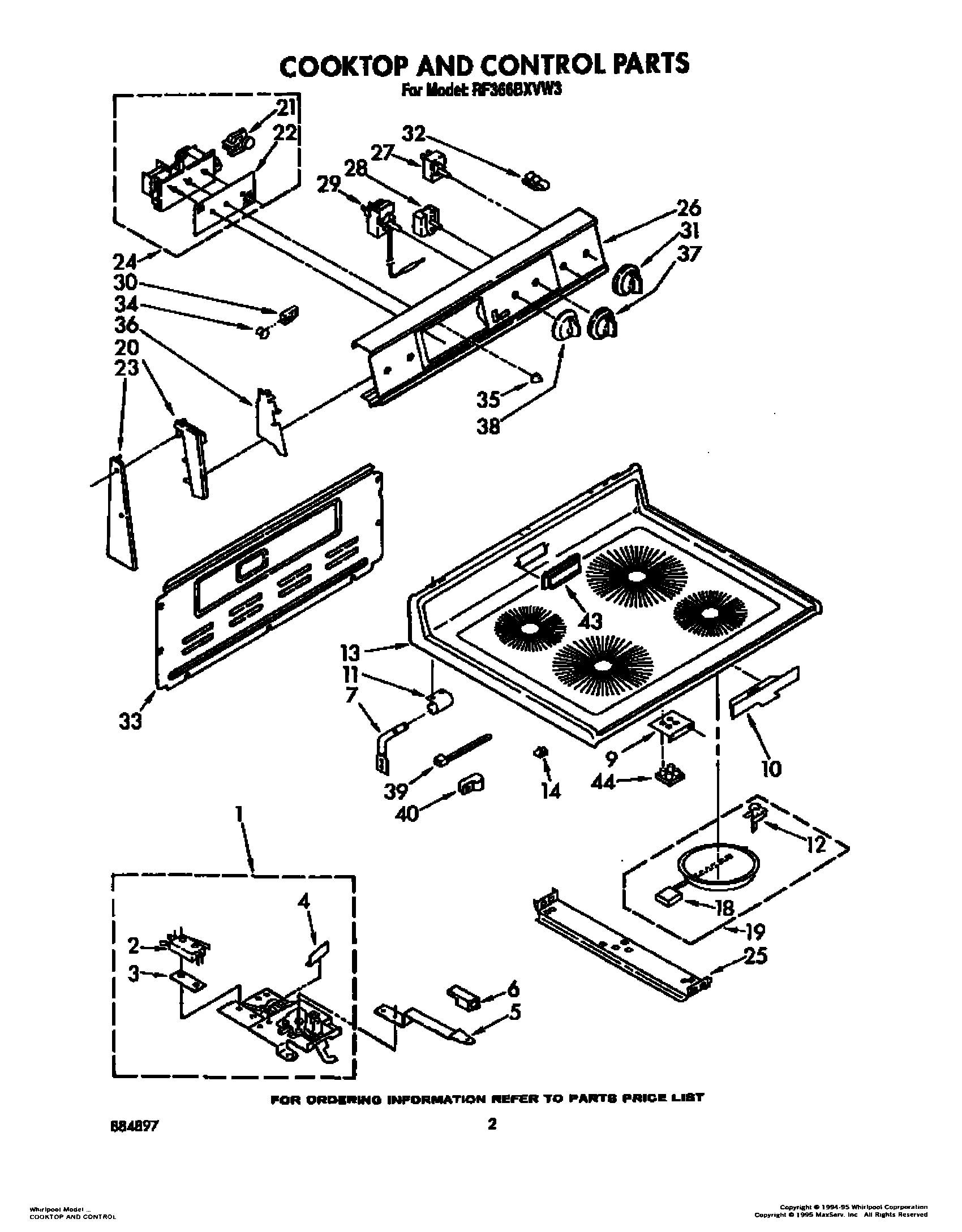

RF366BXVW3 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3149507
	Instructions, Installation
	WPL LIT3150554
	WPL LIT884897
	WPL LIT3150573
1	Latch & Switch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
9	Bracket, Light
10	Shield, Probe
11	Bracket, Cooktop (2)
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	cooktop (almond)
13	Cooktop (White)
14	Clip
18	Limiter, Temp. (180 MM – LR)
18	Limiter, Temp. (200 MM – RF)
18	Limiter, Temp. (250 mm (LF))
18	Limiter Temp. (8“ – RR)
19	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
19	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
19	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
19	WP8185663 Whirlpool Surface Element
20	End Cap R.H.
20	End Cap L.H.
21	Motor, Timer
22	Glass, Timer
23	Screw,
23	End Trim L.H.
23	Washer
24	Timer, Clock (Includes No.6)
25	Bracket, (2) Element Support
26	Panel, Control
26	Washer
27	WP3148955 Whirlpool Infinite Switch
27	WP3148952 Whirlpool Oven Infinite Switch
28	Switch, Selector
29	WP313808 Whirlpool Screw
29	Thermostat, Oven
30	Light, Indicator (250V)
30	Light, Indicator (Surface Unit On)
31	WP3149983 Whirlpool Knob
32	Clip, Tube
33	Harness-Conduit Asm.
33	SCREW
34	Lens, Amber
35	Spring (3)
35	WP3169181 Whirlpool Knob
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
37	Knob, Selector
38	Knob, Oven Temp.
39	Cable Tie
40	WP308605 Whirlpool Refrigerator Clamp
40	Screw (2)
43	Clip, Vent Cover
43	Cover, Vent (White)
43	cover, vent (almond)
44	Light, Indicator
