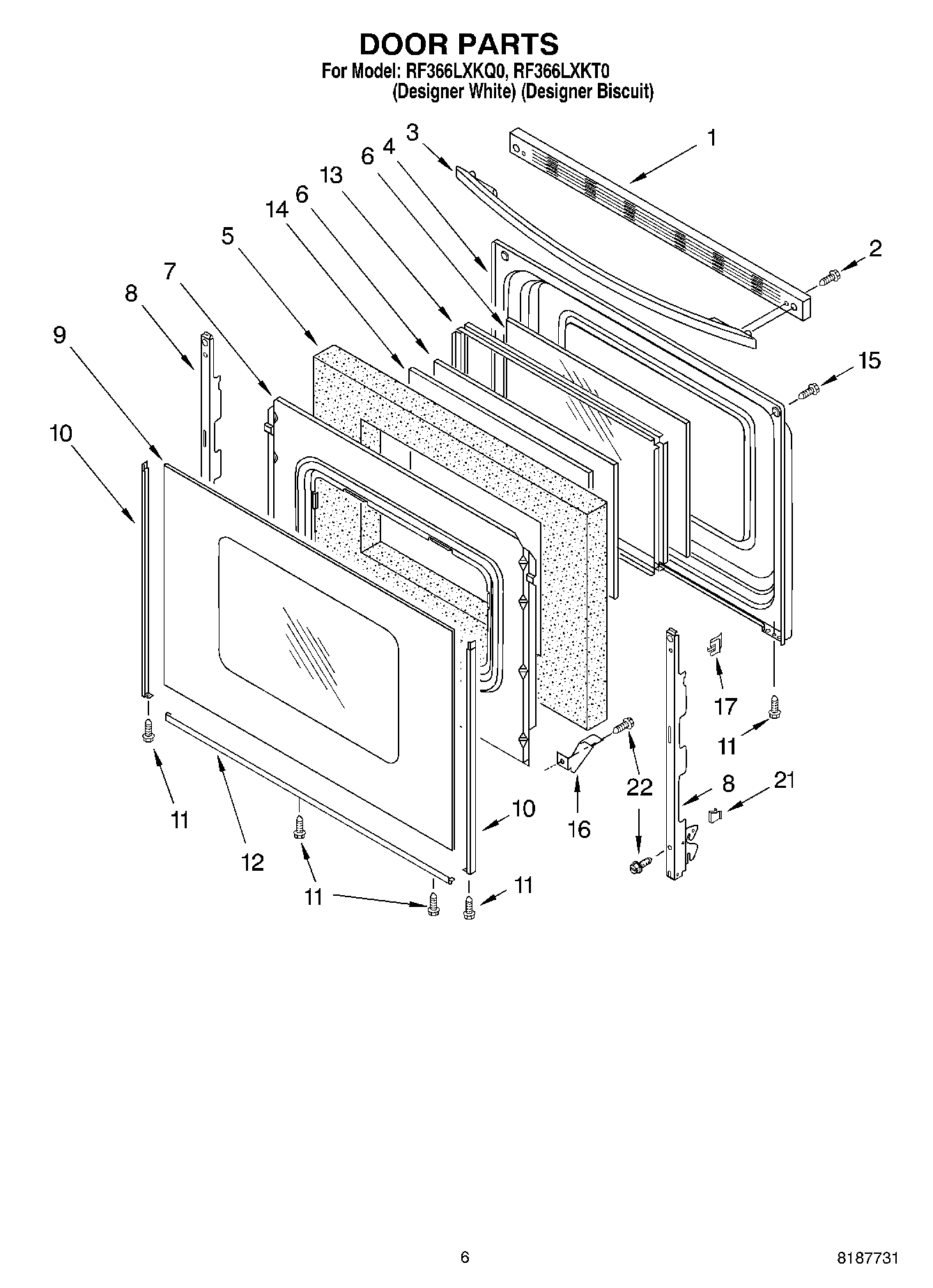

RF366LXKQ0 05 – DOOR

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WP8053807 Whirlpool Oven Door Hinge
9	WP9762476 Whirlpool Door Glass
9	Glass, Door (Biscuit)
10	WP8523167 Whirlpool Door Trim Assembly
10	WP8523172 Whirlpool Left Door Trim
10	WP8523173 Whirlpool Door Trim
10	WP8523166 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
12	WP8523178 Whirlpool Door Trim
13	WPW10316950 Whirlpool Window Frame
14	Seal, Window
15	WP179051 Whirlpool Screw
16	WP3196794 Whirlpool Glass Bracket
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	3184020 Whirlpool Oven Wire
22	8212471 Whirlpool Oven Paint
22	1
22	3196696 Whirlpool Clip
22	Wire (14 Ga. 200 c Brown)
22	Grease
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	WPL 8523708
22	WP3196154 Whirlpool Screw Assembly
22	511873 Whirlpool Refrigerator Paint
22	WPL 8524088
22	WPL 8524089
22	WPL 8523718
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	350942 Whirlpool Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	285006 Whirlpool Spray
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	3400964 Whirlpool Oven Clip
22	814381 Whirlpool Pin
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	8528351 Whirlpool Clip
22	350930 Whirlpool White Spray Paint
