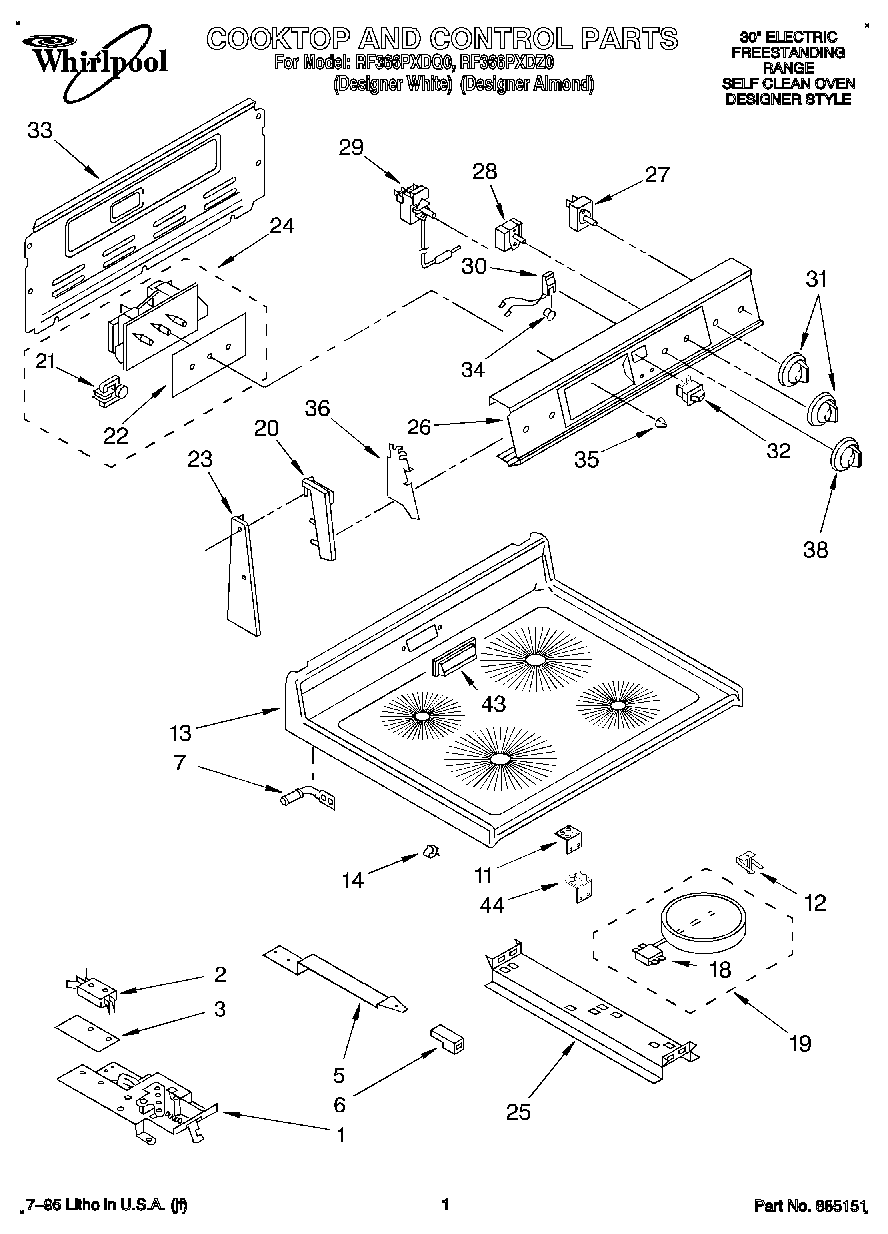

RF366PXDQ0 01 – COOKTOP AND CONTROL
Written by
in
RF366PXDQ0 01 – COOKTOP AND CONTROL
Products
Position
Product
1
Latch Mechanism
2
Screw (2)
2
Safety Switch
3
Insulator, Switch
5
Handle, Latch
5
Screw
6
Knob, Latch
6
Designer Almond
6
WP486579 Whirlpool Air Conditioner Screw
7
Pin, Cooktop (2)
11
Bracket, Light
12
Spring, Locator
12
WP486754 Whirlpool Compactor Screw
13
WP308685 Whirlpool Microwave Screw
13
Cooktop (Almond)
13
Cooktop (Designer White)
14
Clip
18
Limiter, Temp. (2100W, LF-RR)
18
Limiter, Temp. (2400W – LF)
18
Limiter, Temp. (1700W, RF-LR)
18
Limiter, Temp. (1400W – LR)
19
Element, Surface (Includes No. 18) (2400W – LF)
19
Element, Surface (Includes No.1) (2100W, LF-RR)
19
Element, Surface (Includes No. 18) (1400W – LR)
19
Element, Surface (Includes No.1) (1700W, RF-LR)
20
End Cap R.H. (Designer White)
20
End Cap L.H. (Designer White)
20
End Cap R.H. (Designer Almond)
20
End Cap L.H. (Designer Almond)
21
Motor, Timer
21
Screw
22
Glass, Timer
23
End Trim R.H. (Designer White)
23
End Trim (LH, Designer White)
23
Panel, Control (White)
23
End Trim (LH, Designer Almond)
23
End Trim R.H. (Designer Almond)
24
Control, Oven Assembly
24
Designer Almond (Includes No.6)
25
Bracket, (2) Element Support
25
Screw (2)
26
Panel, Control (Designer Almond)
26
Panel, Control (Designer White)
27
WP3148952 Whirlpool Oven Infinite Switch
27
WP3148955 Whirlpool Infinite Switch
28
Switch, Selector (5 Position)
28
Screw, 8-32 x 3/16 (2)
29
WP313808 Whirlpool Screw
29
Thermostat, 0ven
30
Light, Indicator (250V)
30
Indicator Light (Surface Unit On)
31
WP3196232 Whirlpool Knob
31
WPL 3188723
32
Switch, Rocker (White)
32
Switch, Rocker (Designer Almond)
33
Rear Cover Contr
33
SCREW
34
Lens, Amber
35
WP3169181 Whirlpool Knob
35
Designer Almond
36
Shield (2)
36
WP965173 Whirlpool Dishwasher Screw
38
Knob, Thermostat (Designer Almond)
38
Knob, Thermostat (Designer White)
43
Clip, Vent Cover
43
Cover, Vent (White)
43
cover, vent (almond)
44
WPL 3169395
←
