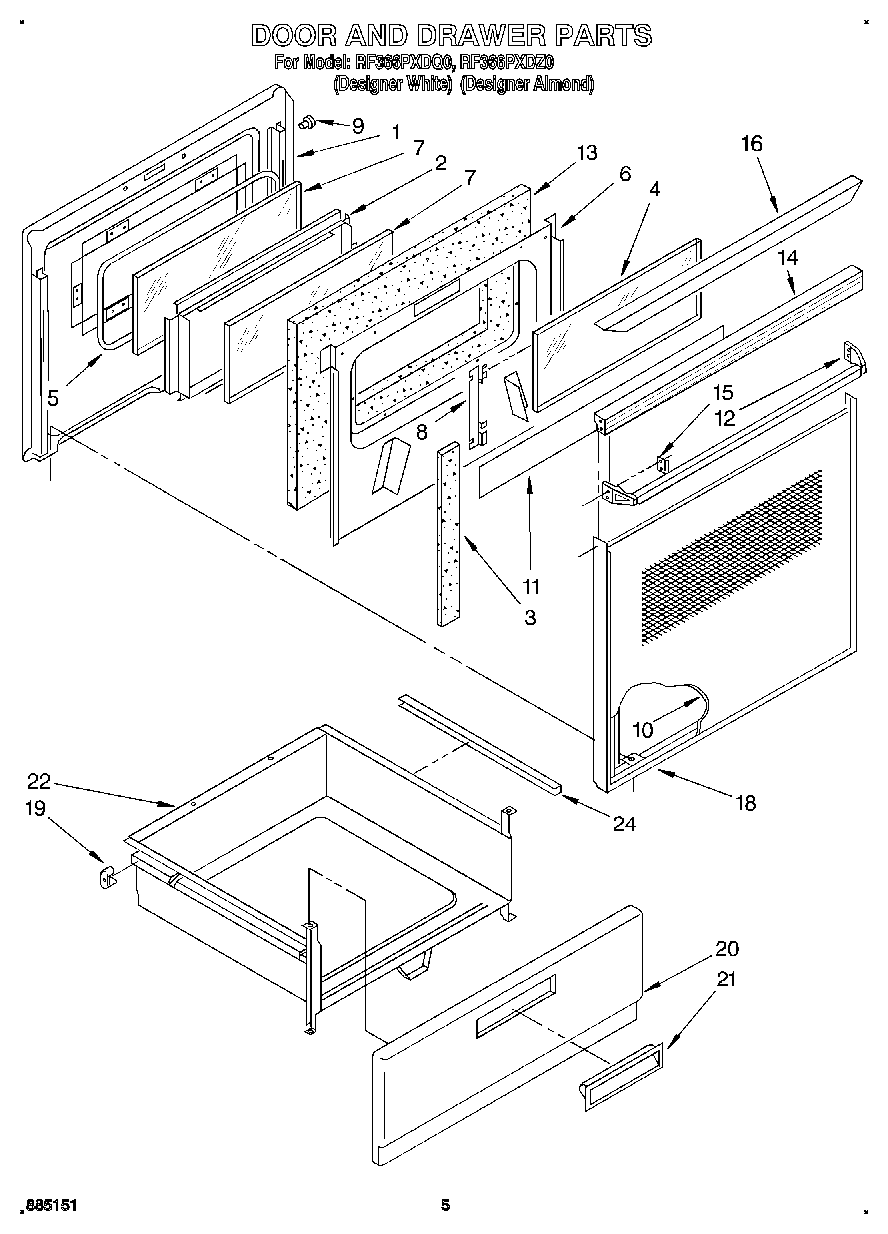

RF366PXDQ0 03 – DOOR AND DRAWER
Written by
in
RF366PXDQ0 03 – DOOR AND DRAWER
Products
Position
Product
1
Liner, Door
2
Frame, Inner
3
Seal, Flange (2)
4
Glass, Clear
5
Seal, Door
6
Retainer,
6
Screw
7
WP3169203 Whirlpool Door Glass
8
Retainer, Glass (2)
8
Screw
9
Bumper (4)
10
Glass Panel, Outer (White)
10
Glass Panel, Outer (Almond)
11
Foil, Door
12
Handle, Door (Almond)
12
WP999367 Whirlpool Refrigerator Screw
12
Handle, Door (White)
13
Insulation, Door
14
Top, Door Frame (Designer White)
14
Top, Door Frame (Designer Almond)
15
Clip, Mtg (2)
16
Cap, Top (Designer Almond)
16
Cap, Top (Designer White)
16
Top, Door Frame (Screw (2))
16
Top, Door Frame (Screw (2))
18
Frame, Door (Almond)
18
Frame, Door (White)
18
Frame, Door (Screw (4))
18
Handle, Door (Screw)
18
Screw
19
Glide, Rear (2)
20
Panel, Drawer (White)
20
Panel, Drawer (Almond)
20
WP488627 Whirlpool Refrigerator Screw
21
Handle, Snap-In (Almond)
21
Handle, Snap-In (White)
22
Drawer, Utility
24
Protector, Drawer (2)
←
