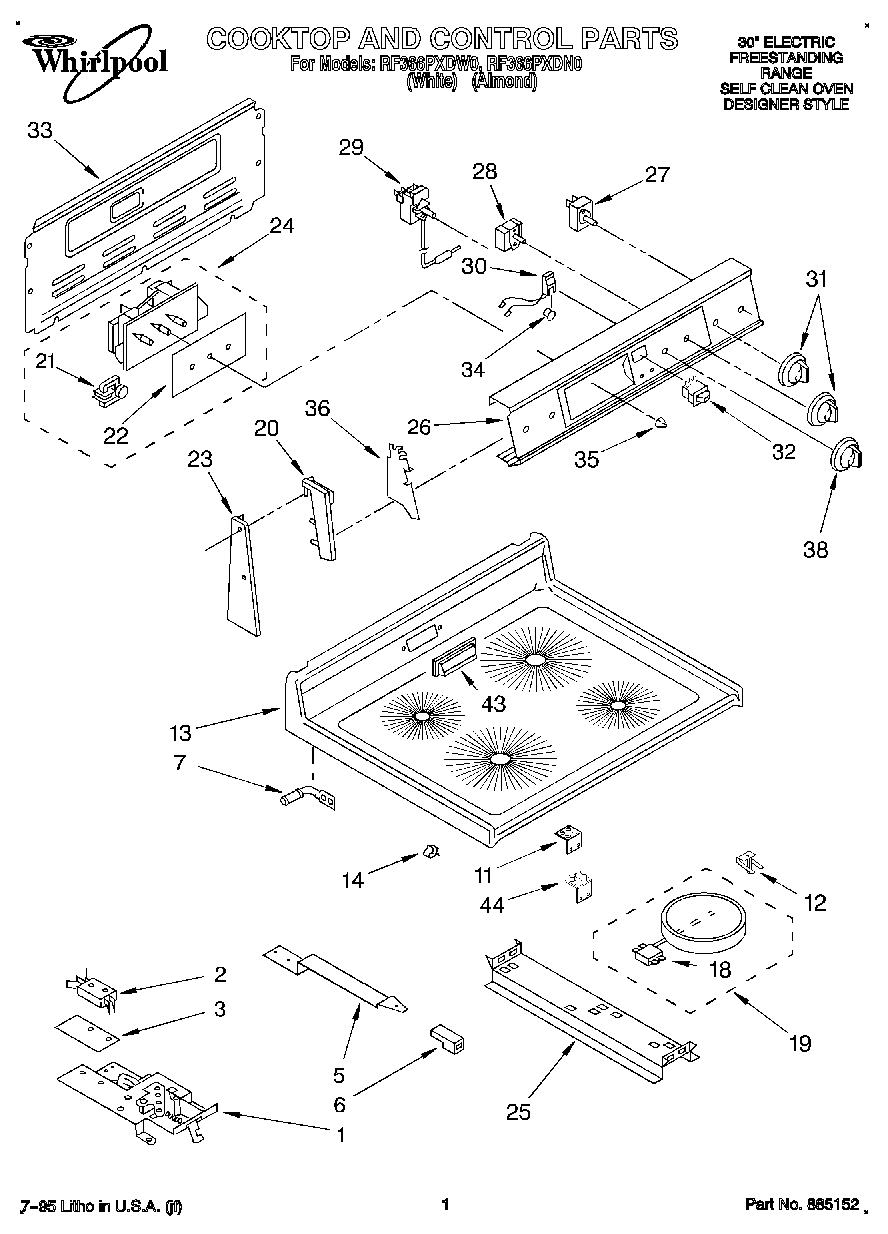

RF366PXDW0 01 – COOKTOP AND CONTROL

Products

Position	Product
1	Latch Mechanism
2	Screw (2)
2	Safety Switch
3	Insulator, Switch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Pin, Cooktop (2)
11	Bracket, Light
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Almond)
13	Cooktop (Designer White)
14	Clip
18	Limiter, Temp. (1400W – LR)
18	Limiter, Temp. (1700W, RF-LR)
18	Limiter, Temp. (2100W, LF-RR)
18	Limiter, Temp. (2400W – LF)
19	Element, Surface (Includes No. 18) (1400W – LR)
19	Element, Surface (Includes No.1) (1700W, RF-LR)
19	Element, Surface (Includes No.1) (2100W, LF-RR)
19	Element, Surface (Includes No. 18) (2400W – LF)
20	End Cap, R.H. (Black)
20	End Cap L.H. (Black)
21	Screw
21	Motor, Timer
22	Glass, Timer
23	Panel, Control (Screw, 8-18 x 5/8 (4))
23	End Trim R.H. (Black)
23	End Trim (LH, Black)
24	Timer, Control
25	Screw (2)
25	Bracket, (2) Element Support
26	Panel, Control (Black)
27	WP3148955 Whirlpool Infinite Switch
27	WP3148952 Whirlpool Oven Infinite Switch
28	Switch, Selector (5 Position)
28	Screw, 8-32 x 3/16 (2)
29	WP313808 Whirlpool Screw
29	Thermostat, 0ven
30	Light, Indicator (250V)
30	Indicator Light (Surface Unit On)
31	WP3196231 Whirlpool Knob
32	Switch, Rocker
33	SCREW
33	Rear Cover Contr
34	Lens, Amber
35	WP3169181 Whirlpool Knob
36	Shield (2)
36	WP965173 Whirlpool Dishwasher Screw
38	Knob, Thermostat (Black)
43	Clip, Vent Cover
43	Cover, Vent (White)
43	cover, vent (almond)
44	WPL 3169395
