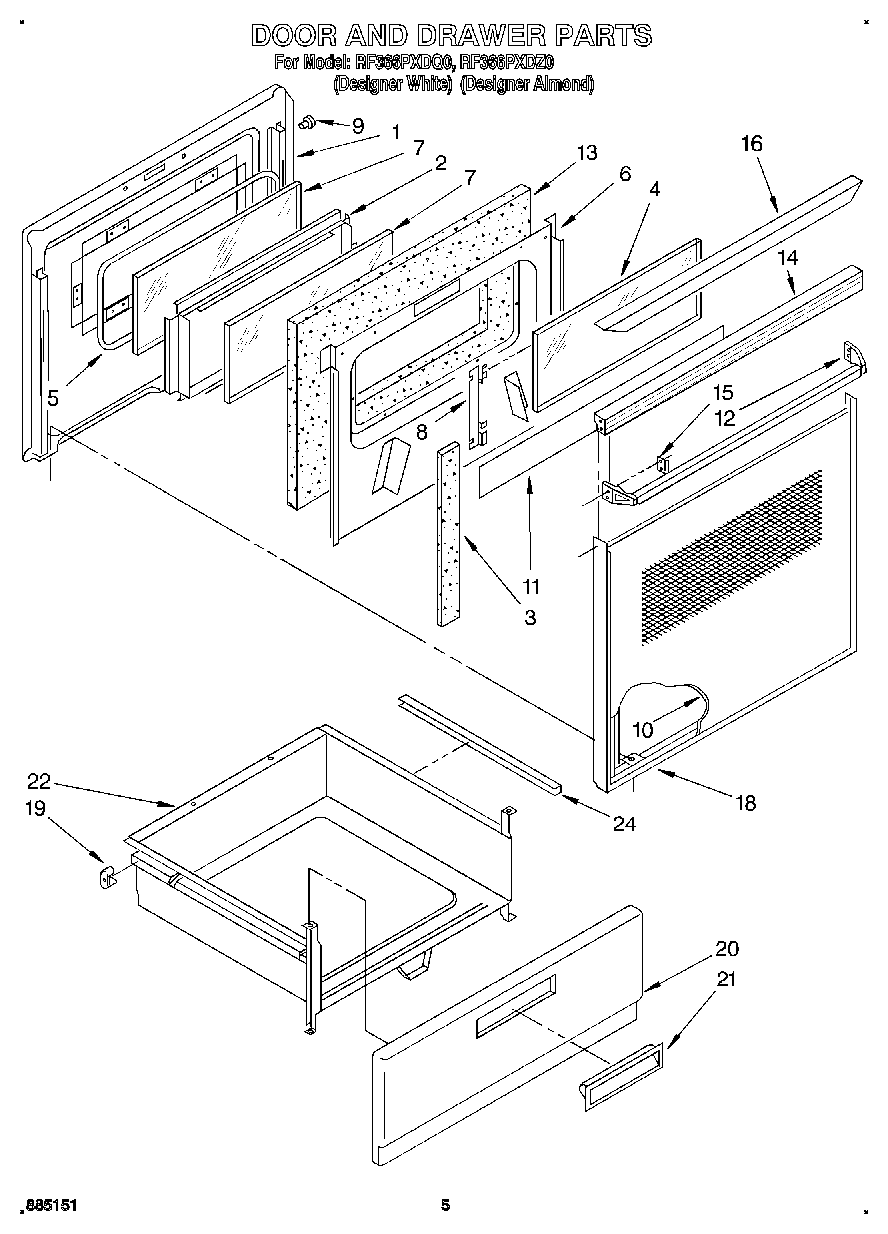

RF366PXDZ0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass Panel, Outer (White)
10	Glass Panel, Outer (Almond)
11	Foil, Door
12	Handle, Door (Almond)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (White)
13	Insulation, Door
14	Top, Door Frame (Designer White)
14	Top, Door Frame (Designer Almond)
15	Clip, Mtg (2)
16	Cap, Top (Designer Almond)
16	Cap, Top (Designer White)
16	Top, Door Frame (Screw (2))
16	Top, Door Frame (Screw (2))
18	Frame, Door (Almond)
18	Frame, Door (White)
18	Frame, Door (Screw (4))
18	Handle, Door (Screw)
18	Screw
19	Glide, Rear (2)
20	Panel, Drawer (White)
20	Panel, Drawer (Almond)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (Almond)
21	Handle, Snap-In (White)
22	Drawer, Utility
24	Protector, Drawer (2)
