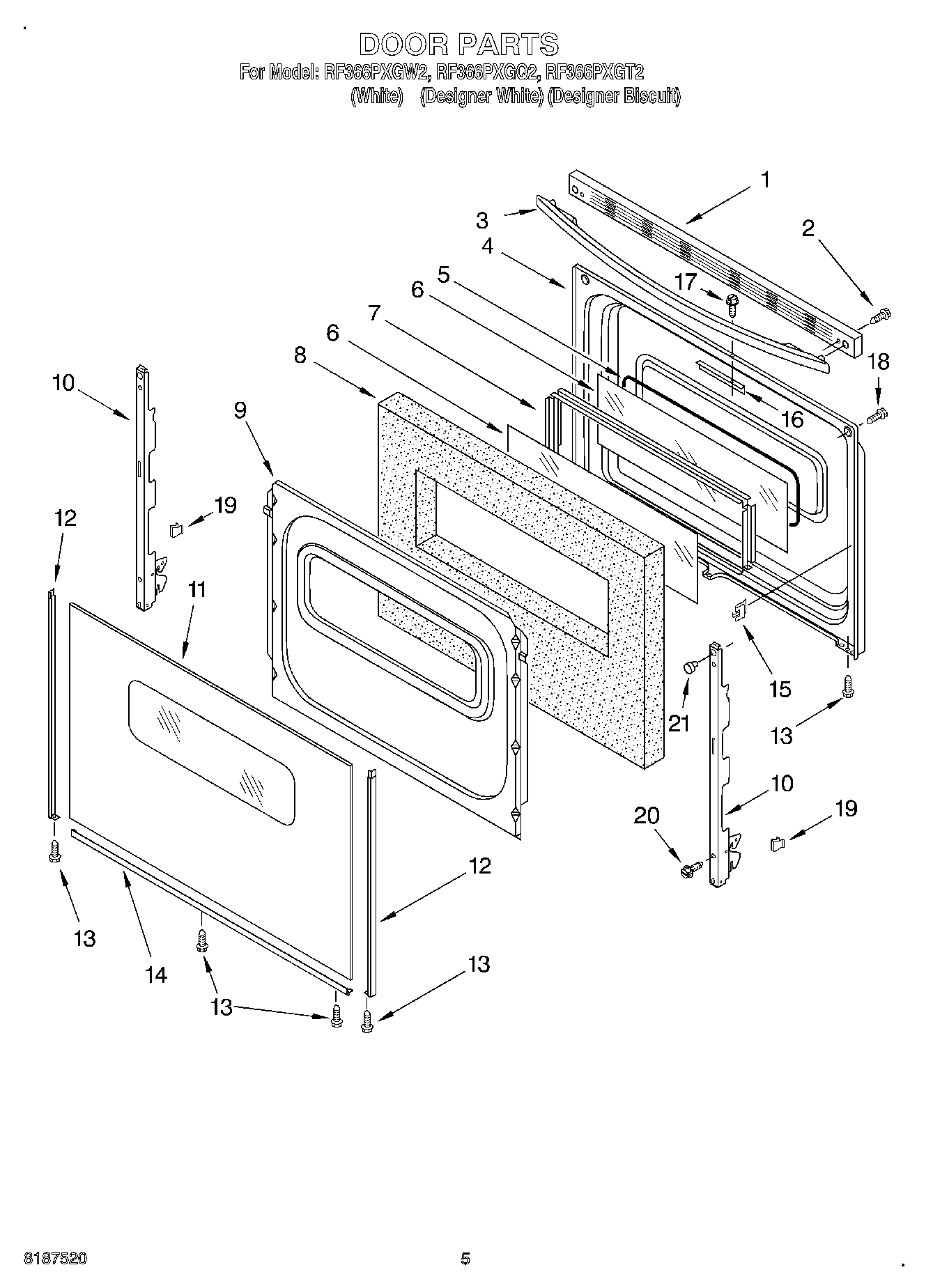

RF366PXGW2 04 – DOOR

RF366PXGW2 04 – DOOR

Written by

in

RF366PXGW2 04 – DOOR

Products

PositionProduct
1Trim, Top (Biscuit)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Door (Biscuit)
11WP9762477 Whirlpool Glass Door
11WP9762476 Whirlpool Door Glass
128184860 Whirlpool Oven Door Trim
13W10491985 Whirlpool Screw
148184858 Whirlpool Door Trim
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
