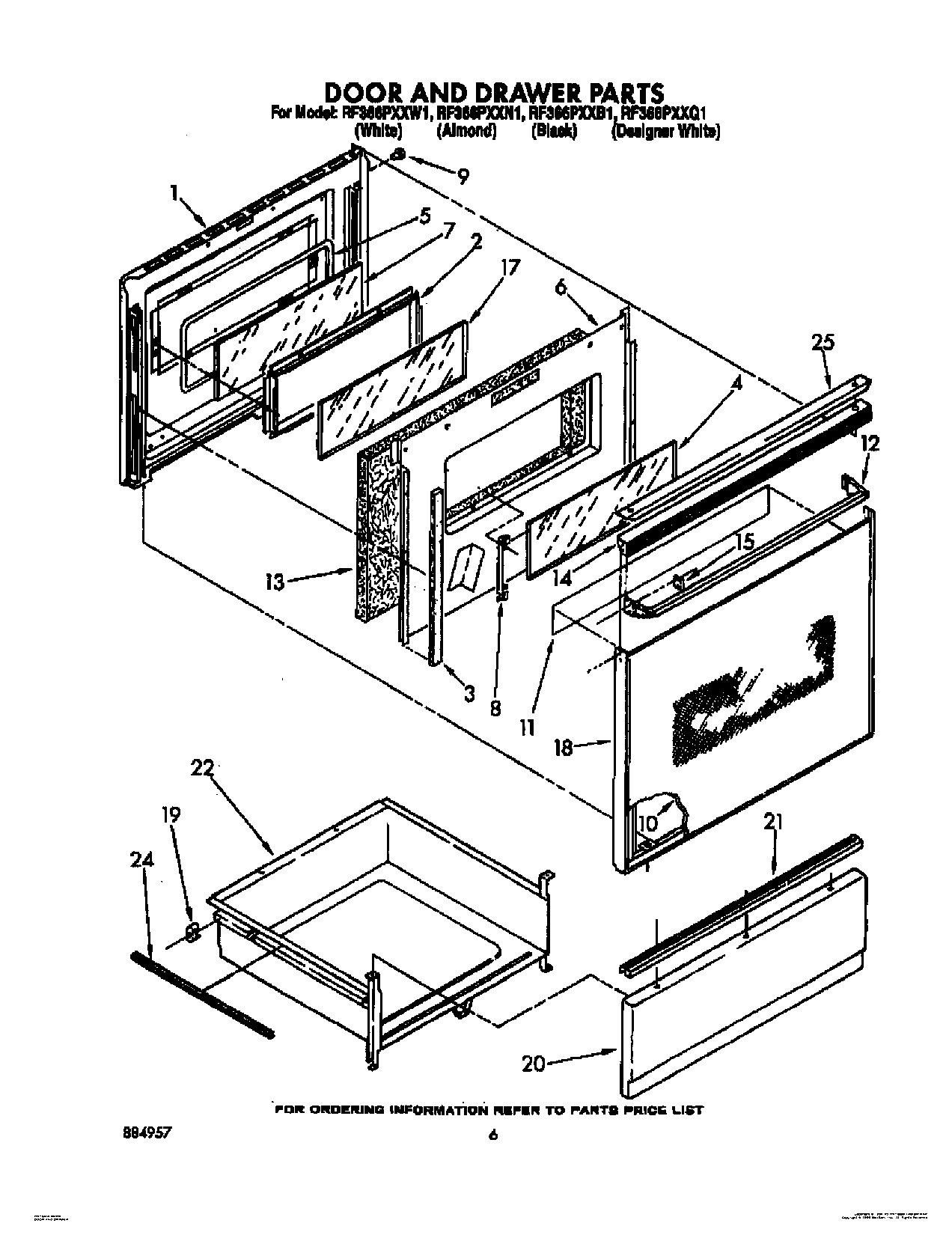

RF366PXXB1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	Handle, Door (White)
12	WP355515 Whirlpool Screw
13	Insulation, Door
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
18	Frame, Door
18	Screw, (2) 10-16 x 1/2
19	Glide, Rear (2)
20	WP488787 Whirlpool Refrigerator Screw
20	Panel Drawer (Black)
20	Panel Drawer (White)
20	Panel, Drawer (Almond)
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Drawer, Utility
24	Protector, Drawer (2)
25	WP308685 Whirlpool Microwave Screw
25	Cap, Top
