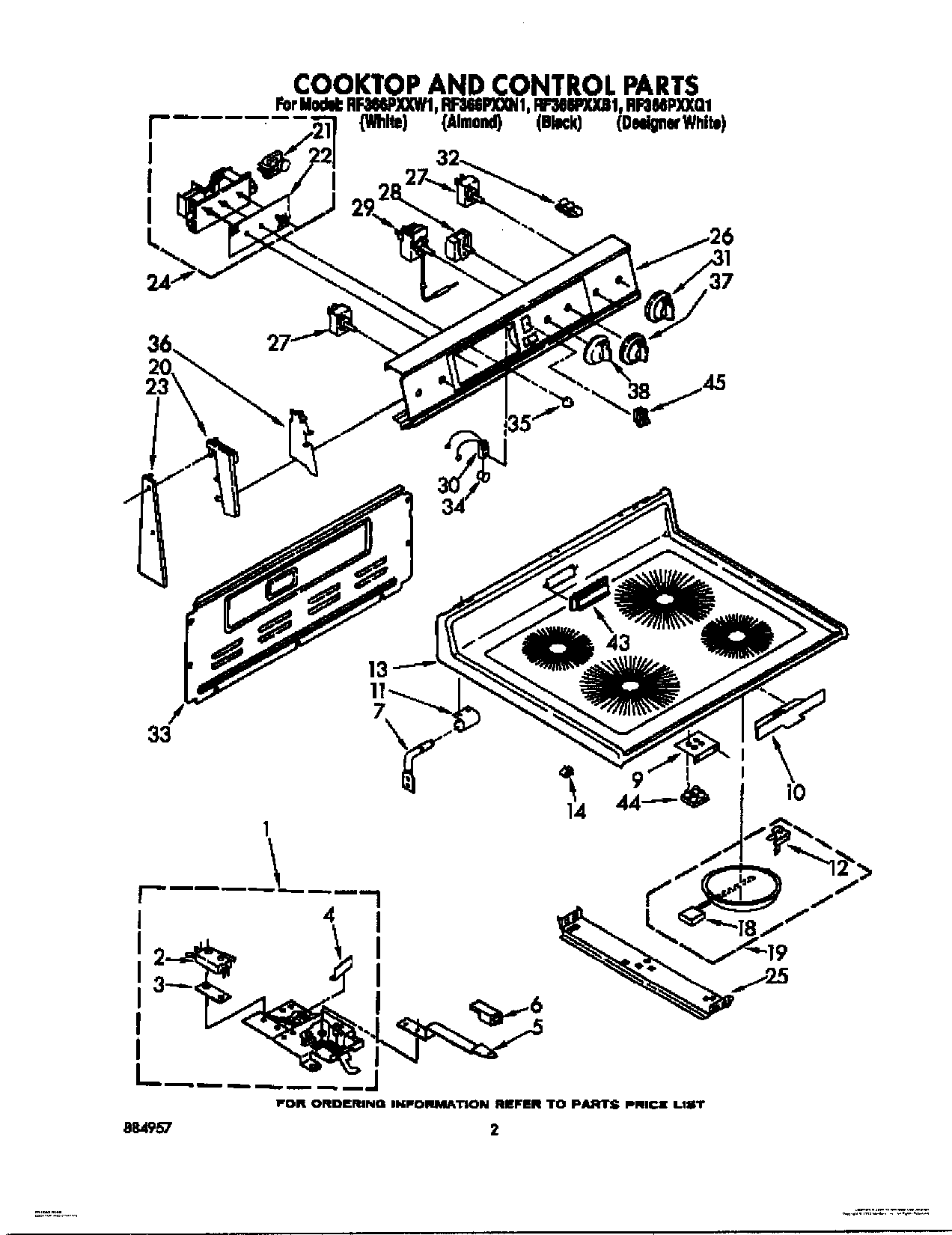

RF366PXXQ1 02 – COOKTOP AND CONTROL

Products

Position	Product
	WPL LIT884957
	WPL LIT3147395
	WPL LIT3149507
	WPL LIT3181612
	WPL LIT3150299
1	Latch & Switch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
9	Bracket, Light
10	Shield, Probe
11	Bracket, Cooktop (2)
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	Cooktop (White)
13	Cooktop (Designer White)
13	Cooktop (Black)
13	cooktop (almond)
14	Clip
18	Limiter Temp. (8`` - RR)
18	Limiter, Temp. (250 mm (LF))
18	Limiter, Temp. (180 MM - LR)
18	Limiter, Temp. (200 MM - RF)
19	Element, Surface (Includes No. 1, No. 3) (200 MM - RF)
19	Element, Surface (Includes No. 1, No. 3) (230 MM - RR)
19	Element, Surface (Includes No. 1, No. 3) (180 MM - LR)
19	WP8185663 Whirlpool Surface Element
20	End Cap R.H.
20	End Cap L.H.
21	Motor, Timer
22	Glass, Timer
23	Screw 10-32x7/16``
23	Screw 10-32x1``
23	Screw,
24	Timer, Auto
24	Timer, Clock (Includes No.6)
25	Screw (2)
25	Bracket, (2) Element Support
26	Washer
26	Panel, Control
26	Panel, Control
27	WP3148955 Whirlpool Infinite Switch
27	WP3148952 Whirlpool Oven Infinite Switch
28	Switch, Selector
29	Thermostat, Oven
29	WP313808 Whirlpool Screw
30	Light, Indicator (250V)
30	Light, Indicator (Surface Unit On)
31	WP3149983 Whirlpool Knob
32	Clip, Tube
33	Harness-Conduit Asm.
33	SCREW
34	Lens, Amber
35	WP3169181 Whirlpool Knob
36	Shield (2)
36	WP965173 Whirlpool Dishwasher Screw
37	Knob, Selector
37	Knob, Selector
38	Knob, Oven Temp.
38	Knob, Thermostat
43	Cover, Vent (White)
43	Clip, Vent Cover
43	cover, vent (almond)
43	Cover, Vent (Black)
44	Light, Indicator
45	WP4314961 Whirlpool Lite Switch
45	3149360 Whirlpool Light Switch
