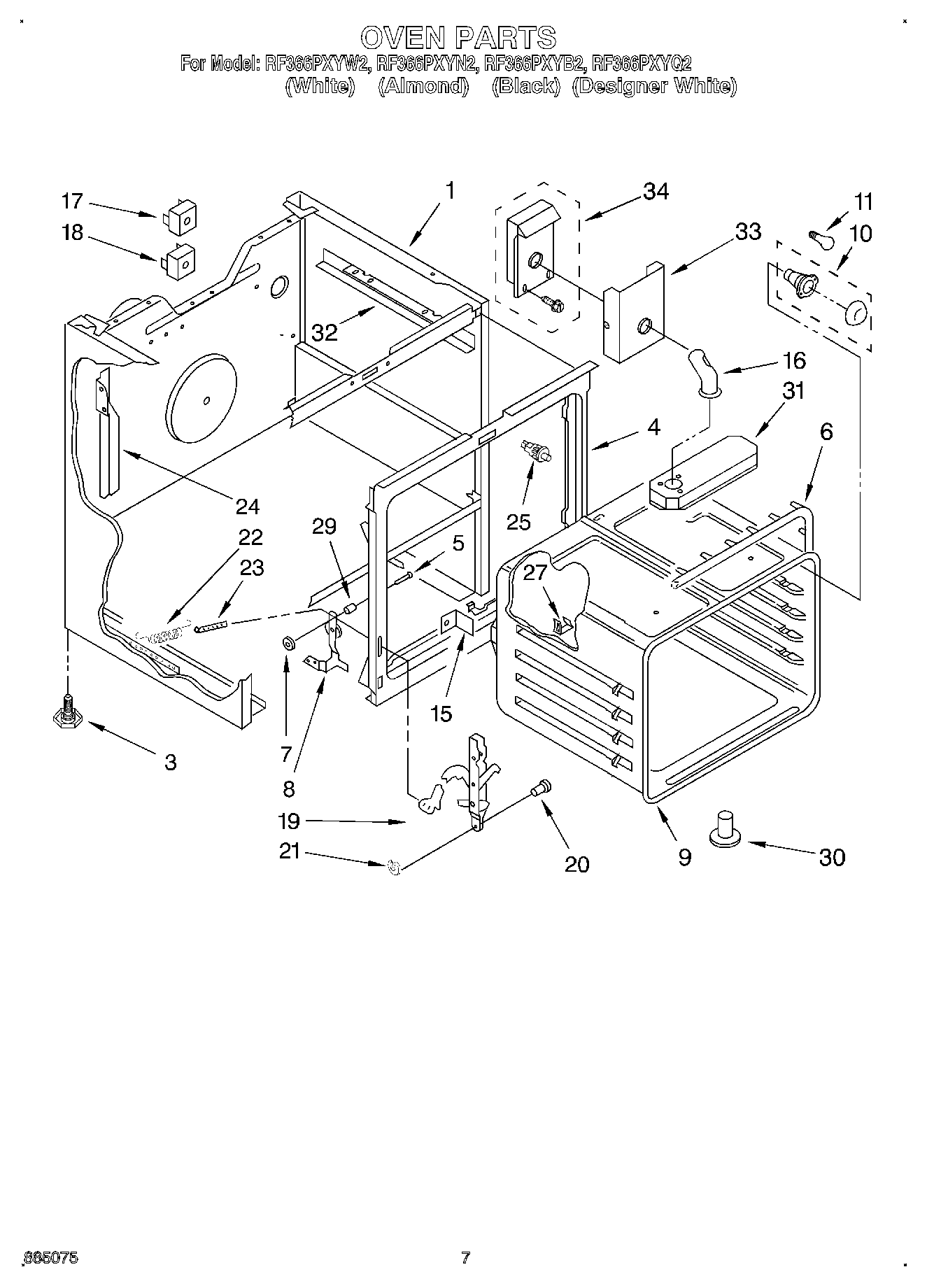

RF366PXYB2 04 – OVEN

RF366PXYB2 04 – OVEN

Written by

in

RF366PXYB2 04 – OVEN

Products

PositionProduct
1Screw
1Main Chassis (Black)
1Main Chassis (White)
1Main Chassis (Almond)
3WPW10058460 Whirlpool Appliance Levelling Leg
4Front Frame
4Screw (Top)
5Pin, Hinge Ear (2)
6Seal, Door
7Pushnut (2)
8Hinge, R.H.
8Hinge, L.H.
9Oven (30“ Pyro)
9Screw (3)
10W11594027 Whirlpool Range Oven Light Socket
11RANGE ONLY 40W 120V APPL BULB
15Bracket, Oven (Mounting)
16Vent, Oven
16WP308685 Whirlpool Microwave Screw
17Sw
18WPL 314215
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22WP308126 Whirlpool Door Spring
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24Wire Cover-Controls (Right)
25Switch, Door
2798005642 Whirlpool Clip
29Snubber, Door (2)
30Tube, Vent
31SCREW
31Box Vent
32Support, Chassis
32WP488729 Whirlpool Refrigerator Door Screw
33Screw (2)
33Shield, Vent
34WP488627 Whirlpool Refrigerator Screw
34Vent, Box
