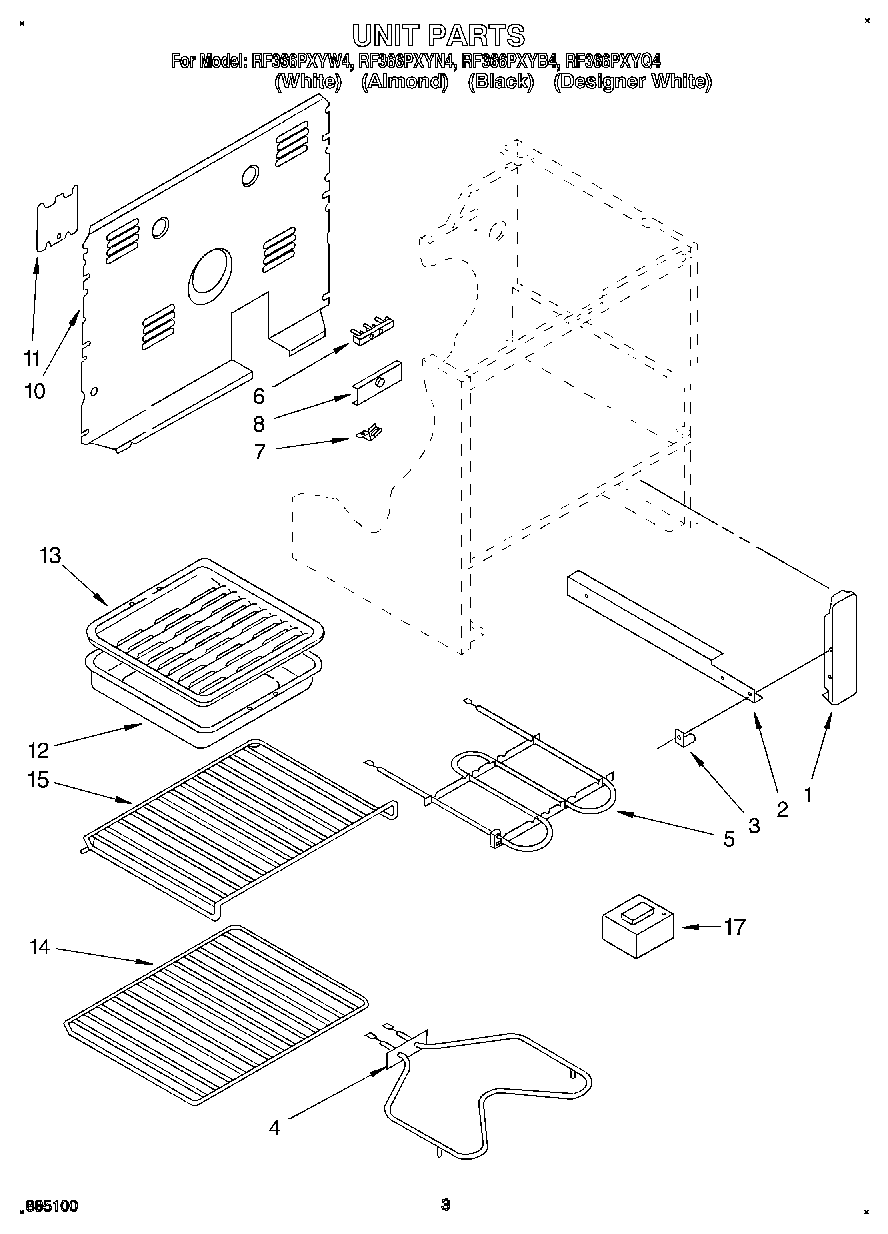

RF366PXYB4 02 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	340184 Whirlpool Screw
17	WPL 3169094
17	WPL 3169093
17	WA906B Whirlpool Cooktop Glass Scraper
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	Block, Balance
