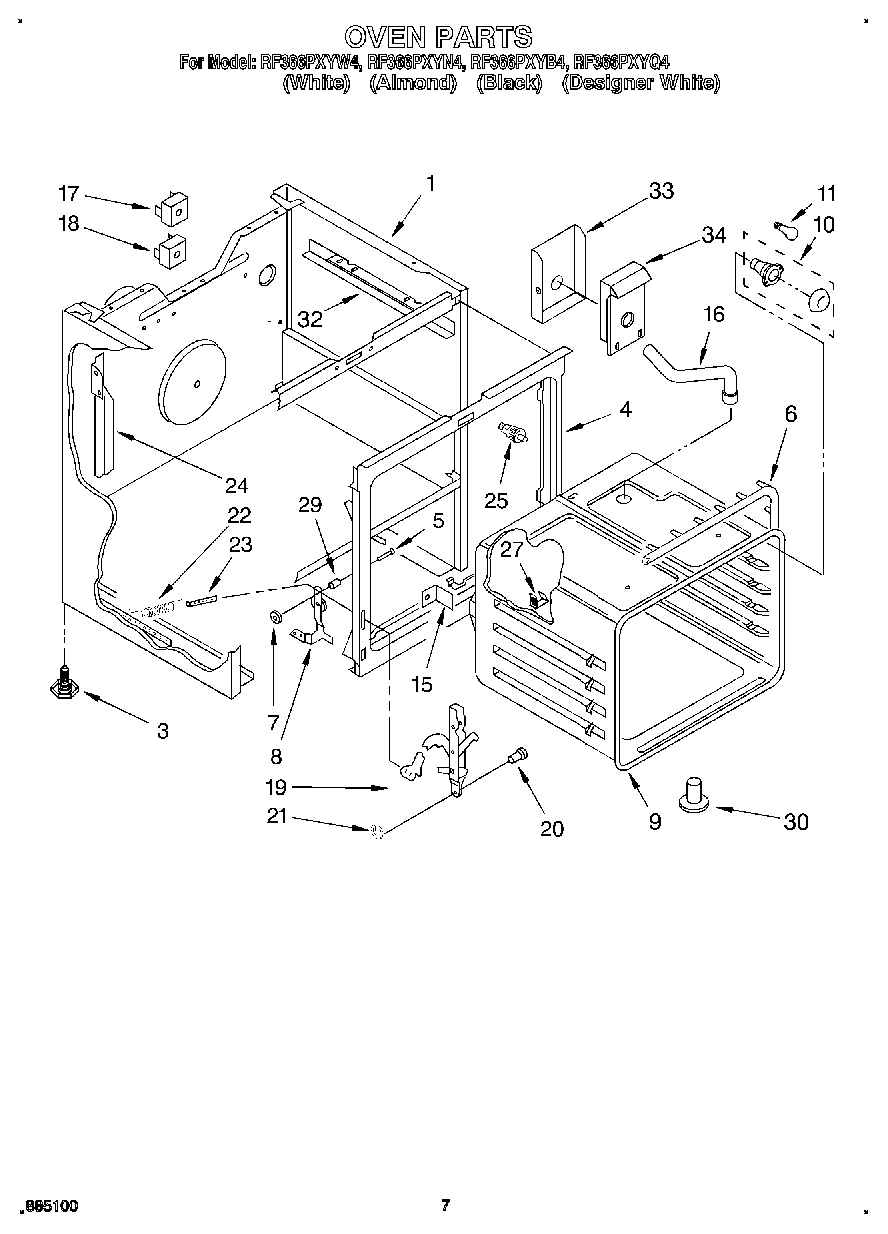

RF366PXYB4 04 – OVEN
Written by
in
RF366PXYB4 04 – OVEN
Products
Position
Product
1
Main Chassis (White)
1
Main Chassis (Black)
1
Main Chassis (Almond)
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Front Frame
4
Screw (Top)
5
Pin, Hinge Ear (2)
6
Seal, Door
7
Pushnut (2)
8
Hinge, L.H.
8
Hinge, R.H.
9
Oven (30“ Pyro)
9
Screw (3)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
15
Bracket, Oven (Mounting)
16
Screw, 10A x 1/2 (2) (Black)
16
Vent, Oven
17
Sw
18
Switch, Bake
18
WPL 314215
19
Channel, Arm (2)
20
WP307986 Whirlpool Hinge Pin
21
Retainer Ring (2)
22
WP308126 Whirlpool Door Spring
23
WP308125 Whirlpool Microwave Range/Cooktop Anchor
24
Wire Cover
24
Wire Cover-Controls (Right)
25
Switch, Door
27
98005642 Whirlpool Clip
29
Snubber, Door (2)
30
Tube, Vent
30
SCREW
32
Support, Chassis
32
WP3390631 Whirlpool Screw
33
Shield, Vent
33
Screw (2)
34
Vent, Box
34
WP488627 Whirlpool Refrigerator Screw
←
