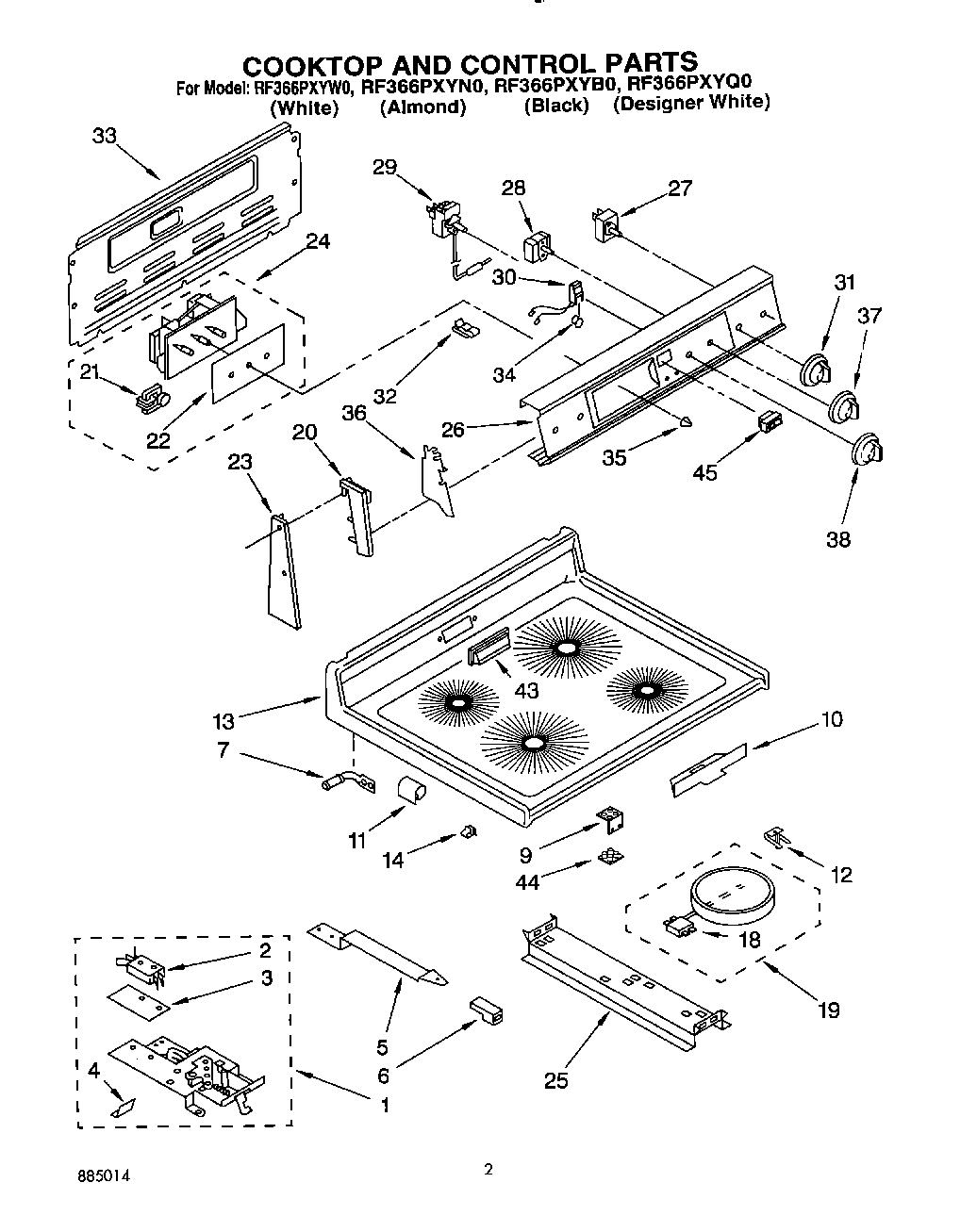

RF366PXYN0 02 – COOKTOP AND CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT885014
	WPL LIT3183555
	WPL LIT3150263
	Video, Ceran Cooktop
	WPL LIT3147395
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
9	Bracket, Light
10	Shield, Probe
11	Bracket, Cooktop (2)
12	Spring, Locator
12	WP486754 Whirlpool Compactor Screw
13	Cooktop (Almond)
13	Cooktop (Black)
13	Cooktop (White)
13	Cooktop (Designer White)
14	Clip
18	Limiter Temp. (7“ – RF)
18	Limiter, Temp. (6“ L.R.)
18	Limiter, Temperature (Use W/3183649 Element)
18	Limiter, Temperature (Use W/3183648 Element)
19	Element, Surface (2100W Right Rear)
19	Element, Surface (1700W Right Front)
19	Element, Surface (1400W Left Rear)
19	WP8185663 Whirlpool Surface Element
20	End Cap R.H.
20	End Cap L.H.
21	Motor, Timer
22	Glass, Timer
23	Screw 10-32×7/16“
23	Screw 10-32×1“
23	Screw,
24	Timer, Control
24	Timer, Clock (Designer White Mdl (Includes No.6))
25	Bracket, (2) Element Support
25	Screw (2)
26	WPL 3184401
26	WPL 3184400
26	Washer
27	WP3148952 Whirlpool Oven Infinite Switch
27	WP3148955 Whirlpool Infinite Switch
28	Switch, Selector
29	Thermostat, Oven
29	WP313808 Whirlpool Screw
30	Light, Indicator
30	Light, Indicator (250V)
31	Knob, (4) Infinite Switch (Designer Mdl)
31	Knob, (4) Infinite Switch (White/Almond/Gold)
32	Clip, Tube
33	Harness-Conduit Asm.
33	SCREW
34	Lens, Amber
35	WP3169181 Whirlpool Knob
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
37	WPL 3183116
37	Knob (Selector)
38	Knob (Temp) (White/Almond)
38	Designer White Mdl
43	Clip, Vent Cover
43	Cover, Vent (White)
43	Cover, Vent (Black)
43	cover, vent (almond)
44	Light, Indicator
45	Switch, Rocker
45	3149360 Whirlpool Light Switch
