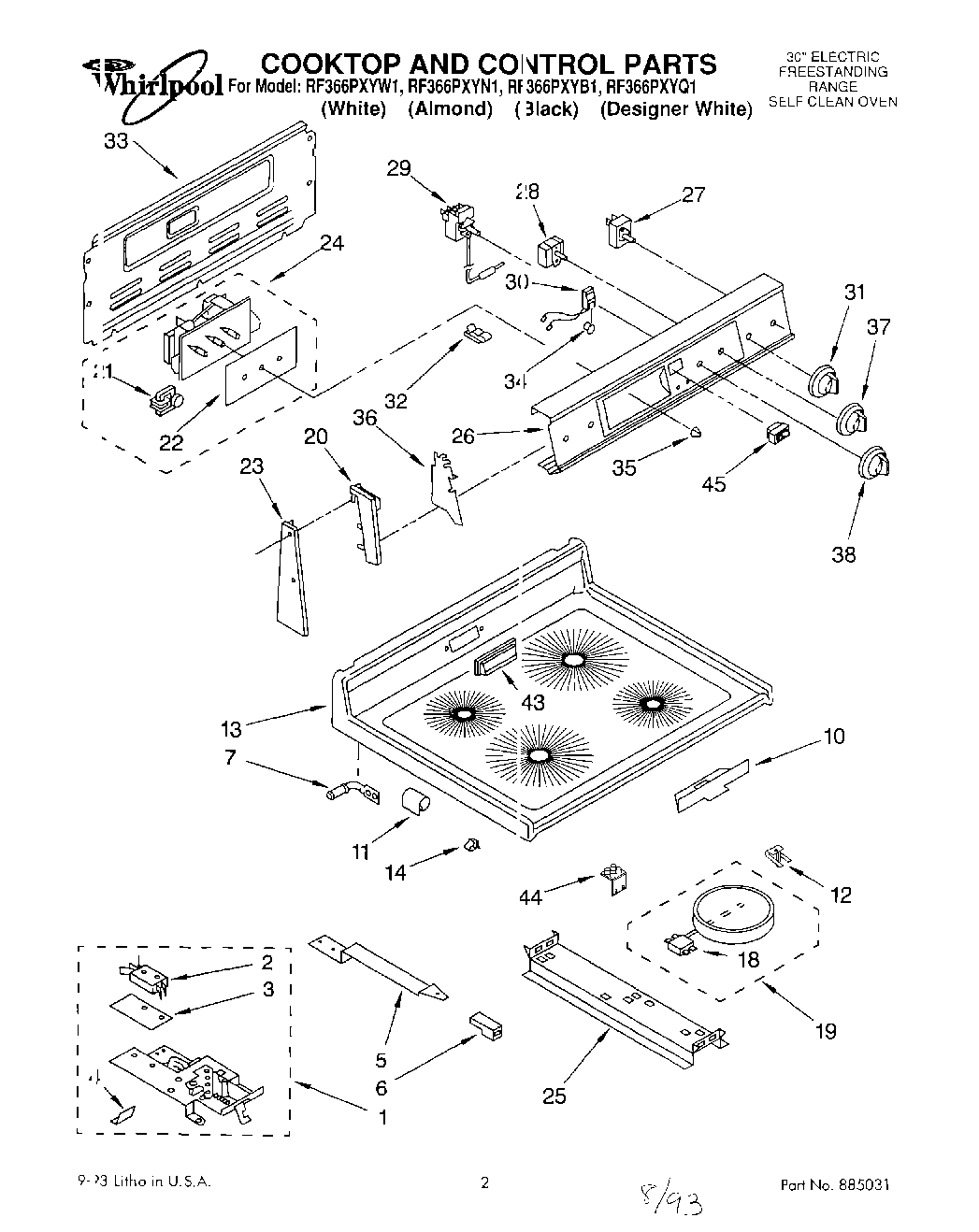

RF366PXYN1 01 – COOKTOP AND CONTROL, LIT/OPTIONAL

RF366PXYN1 01 – COOKTOP AND CONTROL, LIT/OPTIONAL

Written by

in

RF366PXYN1 01 – COOKTOP AND CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT885031
WPL LIT3150263
WPL LIT3181612
WPL LIT677973
Instructions, Installation
Video, Ceran Cooktop
1Latch & Switch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Screw
5Handle, Latch
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Pin, Cooktop (2)
10Shield, Probe
11Bracket, Cooktop (2)
12Spring, Locator
12WP486754 Whirlpool Compactor Screw
13WP308685 Whirlpool Microwave Screw
13Cooktop (White)
13Cooktop (Almond)
13Cooktop (Black)
13Cooktop (Designer White)
14Clip
18Limiter, Temperature (Use W/3183648 Element)
18Limiter, Temperature (Use W/3183649 Element)
18Limiter, Temp. (6“ L.R.)
18Limiter Temp. (7“ – RF)
19WP8185663 Whirlpool Surface Element
19Element, Surface (2100W Right Rear)
19Element, Surface (1700W Right Front)
19Element, Surface (1400W Left Rear)
20End Cap L.H.
20End Cap R.H.
21Motor, Timer
22Glass, Timer
23Screw,
23Screw 10-32×7/16“
23Screw 10-32×1“
24Timer, Clock (Designer White Mdl (Includes No.6))
24Timer, Control
25Screw (2)
25Bracket, (2) Element Support
26WPL 3184401
26Washer
26WPL 3184400
27WP3148952 Whirlpool Oven Infinite Switch
27WP3148955 Whirlpool Infinite Switch
28Switch, Selector
29WP313808 Whirlpool Screw
29Thermostat, Oven
30Light, Indicator (250V)
30Light, Indicator (Includes No. 12) (Surface Unit On)
31Knob, (4) Infinite Switch (Designer Mdl)
31Knob, (4) Infinite Switch (White/Almond/Gold)
32Clip, Tube
33SCREW
33Harness-Conduit Asm.
34Lens, Amber
35WP3169181 Whirlpool Knob
36WP965173 Whirlpool Dishwasher Screw
36Shield (2)
37WPL 3183116
37Knob (Selector)
38Designer White Mdl
38Knob (Temp) (White/Almond)
43Cover, Vent (Black)
43Cover, Vent (White)
43Clip, Vent Cover
43cover, vent (almond)
44Hot Light Assembly
453149360 Whirlpool Light Switch
45WP4314961 Whirlpool Lite Switch
