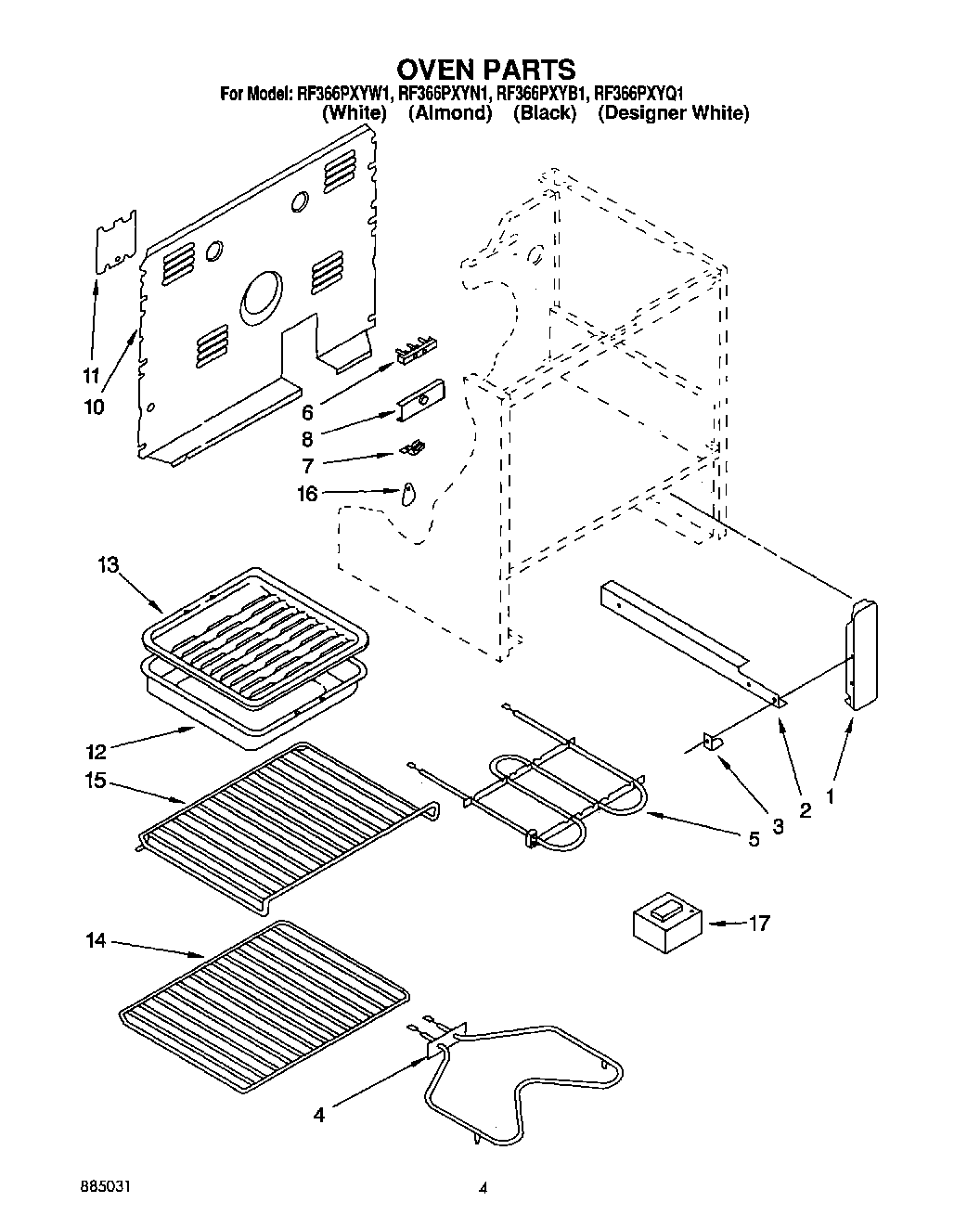

RF366PXYN1 02 – OVEN, OPTIONAL

RF366PXYN1 02 – OVEN, OPTIONAL

Written by

in

RF366PXYN1 02 – OVEN, OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
16	Screw (2)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Grease
17	Wire (14 Ga. 150 c Green)
17	WPL 3169094
17	Block, Balance
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	8212471 Whirlpool Oven Paint
17	Leveler (Thinner) (2oz.)
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	340184 Whirlpool Screw
17	350930 Whirlpool White Spray Paint
17	Enamel, Coffee (1 Qt. Uncut)
17	1
17	WPL 3169093
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	Wire, 25“ Roll (White 14 GA.)
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	WA906B Whirlpool Cooktop Glass Scraper
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350956 Whirlpool Spray Assembly
