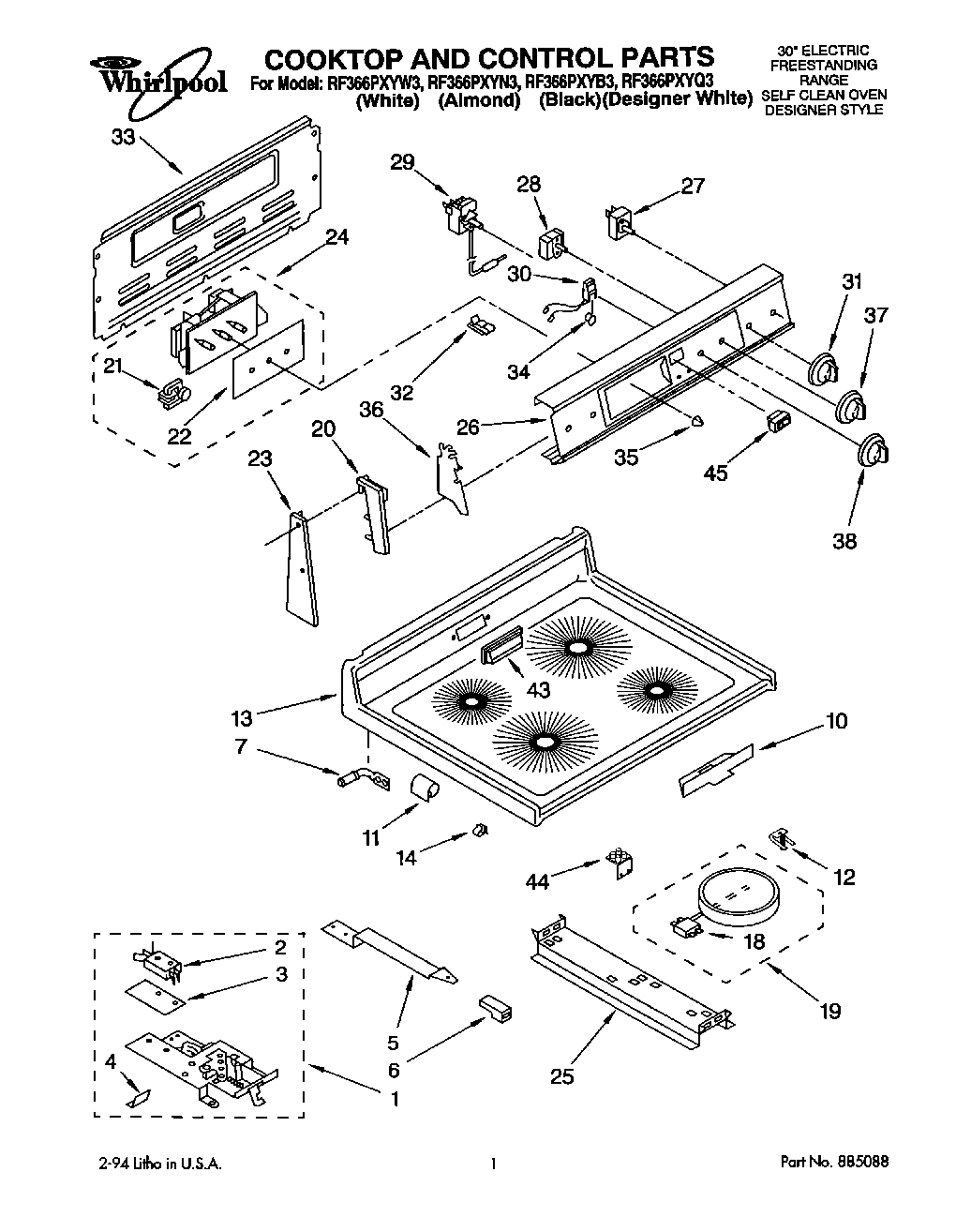

RF366PXYQ3 01 – COOKTOP AND CONTROL

RF366PXYQ3 01 – COOKTOP AND CONTROL

Written by

in

RF366PXYQ3 01 – COOKTOP AND CONTROL

Products

Position	Product
1	Latch & Switch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
10	Shield, Probe
11	Bracket, Cooktop (2)
12	WP486754 Whirlpool Compactor Screw
12	Spring, Locator
13	Cooktop (White)
13	Cooktop (Almond)
13	Cooktop (Designer White)
13	Cooktop (Black)
13	WP308685 Whirlpool Microwave Screw
14	Clip
18	Limiter, Temperature (Use W/3183649 Element)
18	Limiter, Temp. (6“ L.R.)
18	Limiter Temp. (7“ – RF)
18	Limiter, Temperature (Use W/3183648 Element)
19	Element, Surface (2100W Right Rear)
19	Element, Surface (1700W Right Front)
19	Element, Surface (1400W Left Rear)
19	WP8185663 Whirlpool Surface Element
20	End Cap R.H.
20	End Cap L.H.
21	Motor, Timer
22	Glass, Timer
23	Screw 10-32×7/16“
23	Screw,
23	Screw 10-32×1“
24	Timer, Control
24	Control, Oven Assembly
25	Screw (2)
25	Bracket, (2) Element Support
26	WPL 3184401
26	Washer
26	WPL 3184400
27	WP3148952 Whirlpool Oven Infinite Switch
27	WP3148955 Whirlpool Infinite Switch
27	Screw, 8-32 x 3/16 (2)
28	Switch, Selector
29	WP313808 Whirlpool Screw
29	Thermostat, 0ven Pyro
30	Light, Indicator (250V)
30	Light, Indicator (Includes No. 12) (Surface Unit On)
31	Knob, (4) Infinite Switch (White/Almond/Gold)
31	Knob, (4) Infinite Switch (Designer Mdl)
32	Clip, Tube
33	SCREW
33	Rear Cover Contr
34	Lens, Amber
35	WP3169181 Whirlpool Knob
36	WP965173 Whirlpool Dishwasher Screw
36	Shield (2)
37	WPL 3183116
37	Knob (Selector)
38	Knob (Temp) (White/Almond)
38	Designer White Mdl
43	Cover, Vent (White)
43	cover, vent (almond)
43	Cover, Vent (Black)
43	Clip, Vent Cover
44	Hot Light Assembly
45	3149360 Whirlpool Light Switch
45	WP4314961 Whirlpool Lite Switch
