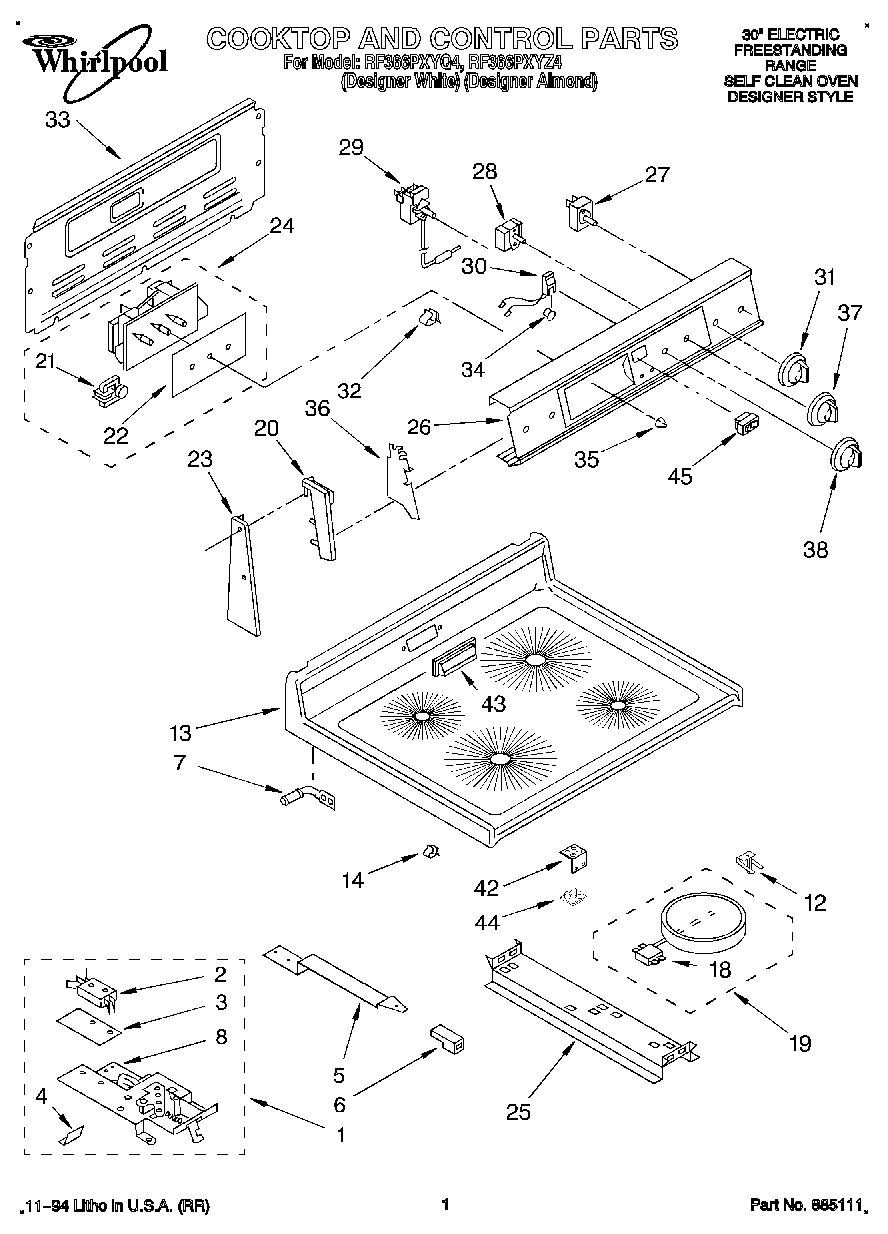

RF366PXYZ4 01 – COOKTOP AND CONTROL

RF366PXYZ4 01 – COOKTOP AND CONTROL

Written by

in

RF366PXYZ4 01 – COOKTOP AND CONTROL

Products

PositionProduct
1Latch & Switch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Shield, Latch
4Screw
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Designer Almond
7Pin, Cooktop (2)
8Latch Mechanism
12WP486754 Whirlpool Compactor Screw
12Spring, Locator
13WP308685 Whirlpool Microwave Screw
13Cooktop (Almond)
13Cooktop (Designer White)
14Clip
18Limiter, Temperature (Use W/3183648 Element)
18Limiter, Temperature (Use W/3183649 Element)
18Limiter Temp. (7“ – RF)
18Limiter, Temp. (6“ L.R.)
19WP8185663 Whirlpool Surface Element
19Element, Surface (2100W Right Rear)
19Element, Surface (1700W Right Front)
19Element, Surface (1400W Left Rear)
20End Cap R.H.
20End Cap L.H.
20Designer Almond
20Designer Almond
21Motor, Timer
22Glass, Timer
23End Trim R.H. (Designer Almond)
23Screw,
23Screw 10-32×7/16“
23Screw 10-32×1“
23End Trim (LH, Designer Almond)
24Control, Oven Assembly
24Designer Almond (Includes No.6)
25Bracket, (2) Element Support
25Screw (2)
26WPL 3184401
26Washer
26Designer Almond
27WP3148955 Whirlpool Infinite Switch
27Screw, 8-32 x 3/16 (2)
27WP3148952 Whirlpool Oven Infinite Switch
28Switch, Selector
29WP313808 Whirlpool Screw
29Thermostat, 0ven Pyro
30Light, Indicator (Includes No. 12) (Surface Unit On)
30Light, Indicator (250V)
31Knob, (4) Infinite Switch (Designer Mdl)
31Designer Almond
32Clip, Snap-In
33Rear Cover Contr
33SCREW
34Lens, Amber
35WP3169181 Whirlpool Knob
35Designer Almond
36Shield (2)
36WP965173 Whirlpool Dishwasher Screw
37WPL 3183116
37WPL 3183111
38Designer Almond
38Designer White Mdl
42Bracket, Light
43Cover, Vent (White)
43Clip, Vent Cover
43cover, vent (almond)
44WPL 3169395
453149360 Whirlpool Light Switch
45Switch, Rocker (Almond)
