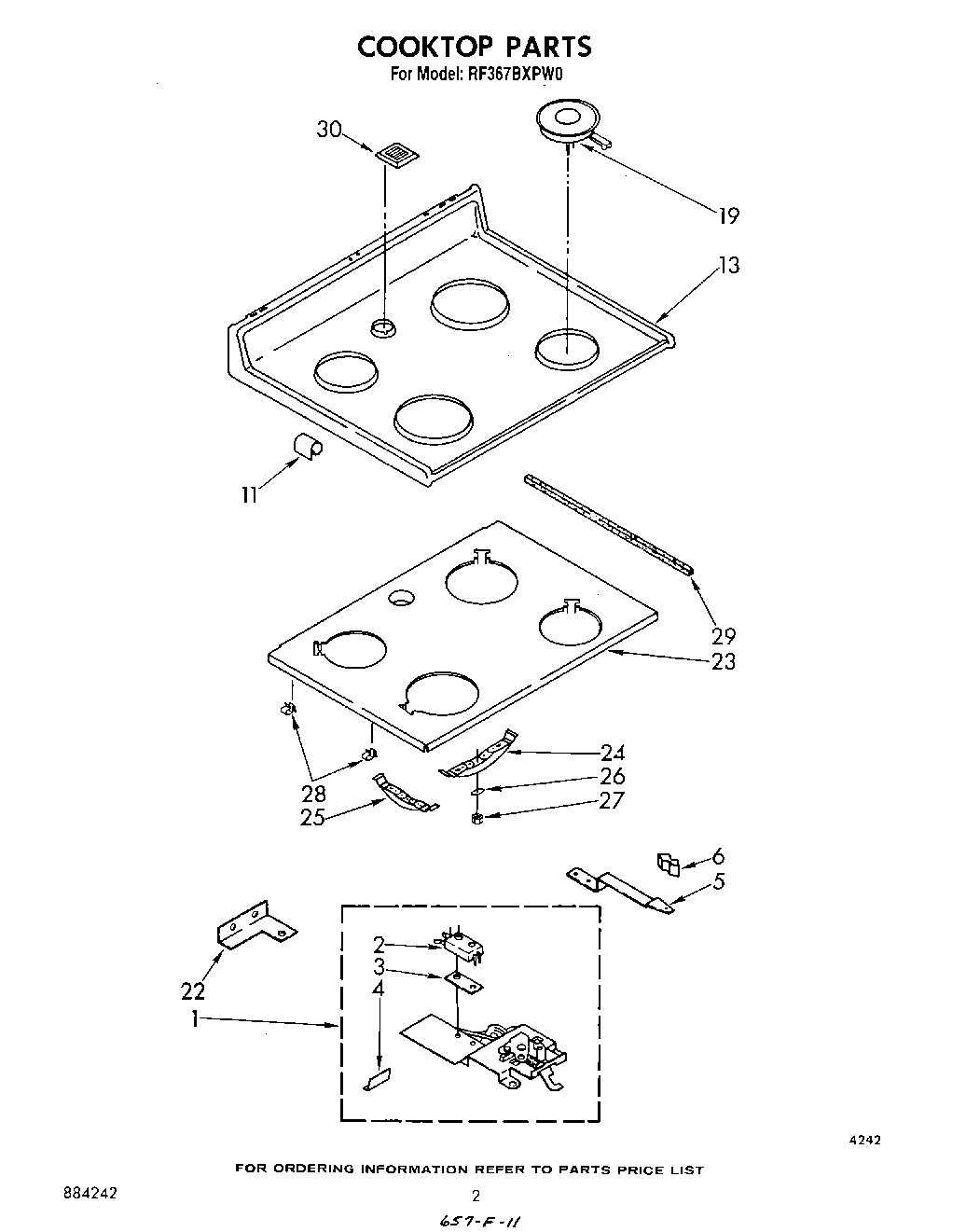

RF367BXPW0 02 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
	WP3147132 Whirlpool Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
4	WP313808 Whirlpool Screw
5	Handle, Latch
5	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
6	Knob, Latch
11	SCREW
11	Bracket, Cooktop (2)
13	Cooktop (Platinum)
13	Cooktop (Toast)
13	Cooktop (Harvest Gold)
13	Cooktop (Almond)
13	Cooktop (White)
19	WP660532 Whirlpool Oven Surface Element
19	WP3147131 Whirlpool Surface Element
22	WPL 312320
22	Screw, 10A x 1/2 (2) (Black)
23	Cooktop, Support
24	bracket, element (1.5 KW)
25	bracket, element (2.0 KW)
25	8“ Surface Unit (2)
26	Spring, Leaf
27	hex nut (8)
28	Clip
29	Seal, Air Duct
30	Cover, Vent
