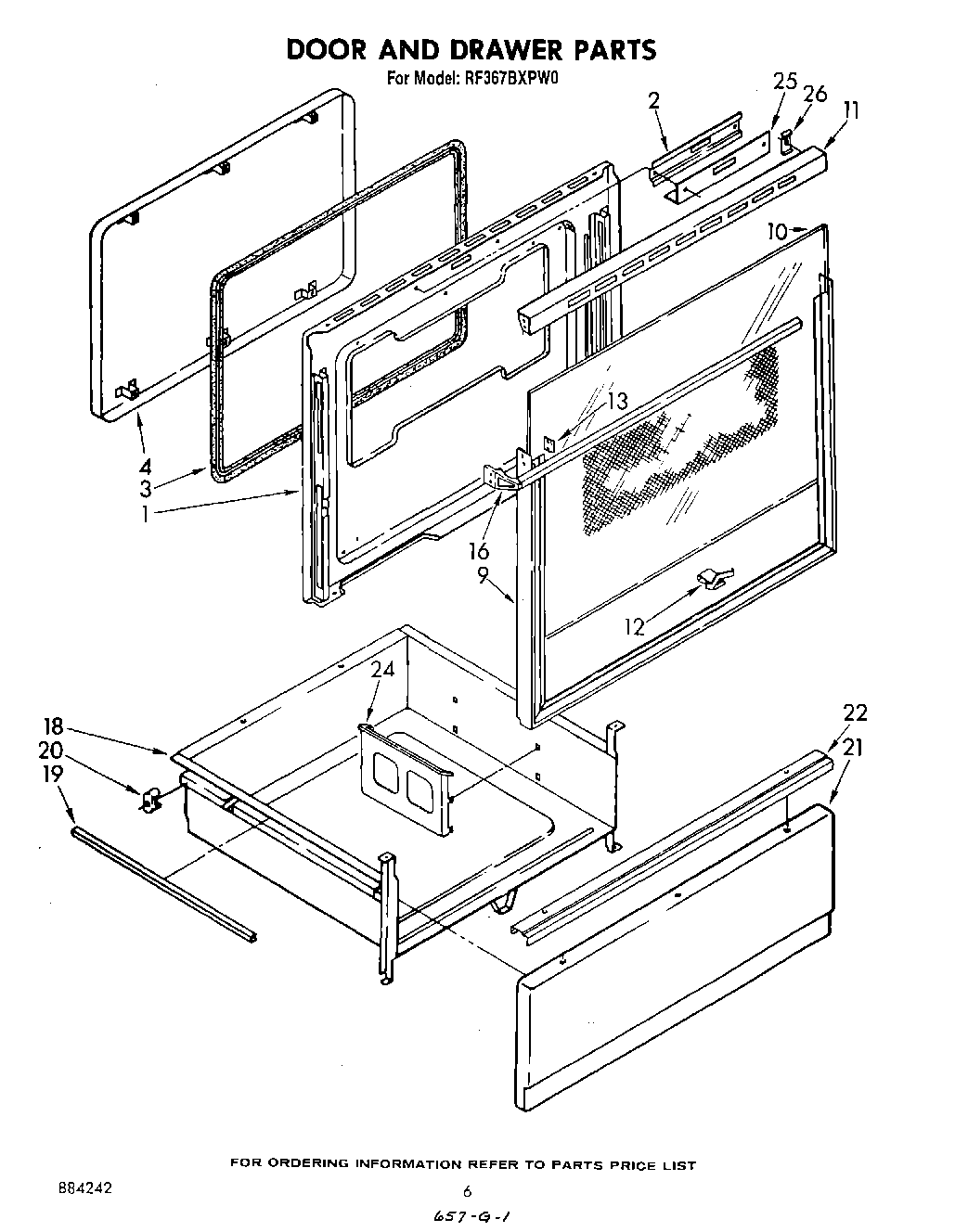

RF367BXPW0 05 – DOOR AND DRAWERadmin2025-04-26T12:23:26+00:00RF367BXPW0 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Screw (3) |
| 2 | Channel, Latch |
| 3 | Seal, Fiberglass |
| 4 | Panel, Inner |
| 9 | frame, door 30`` |
| 10 | Glass, Outer |
| 11 | Top, Door Frame |
| 11 | WP90296 Whirlpool Clip |
| 12 | clip, glass (10) |
| 13 | screw (3) |
| 16 | WP355515 Whirlpool Screw |
| 16 | Handle, Oven Door |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | Panel, Drawer (Toast) |
| 21 | Panel Drawer (Harvest Gold) |
| 21 | Panel, Drawer (Platinum) |
| 21 | Panel, Drawer (Almond) |
| 21 | Panel Drawer (White) |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 24 | Rack, Literature |
| 25 | Screw |
| 25 | Shield, Insulation |
| 26 | hold down, glass (2) |
