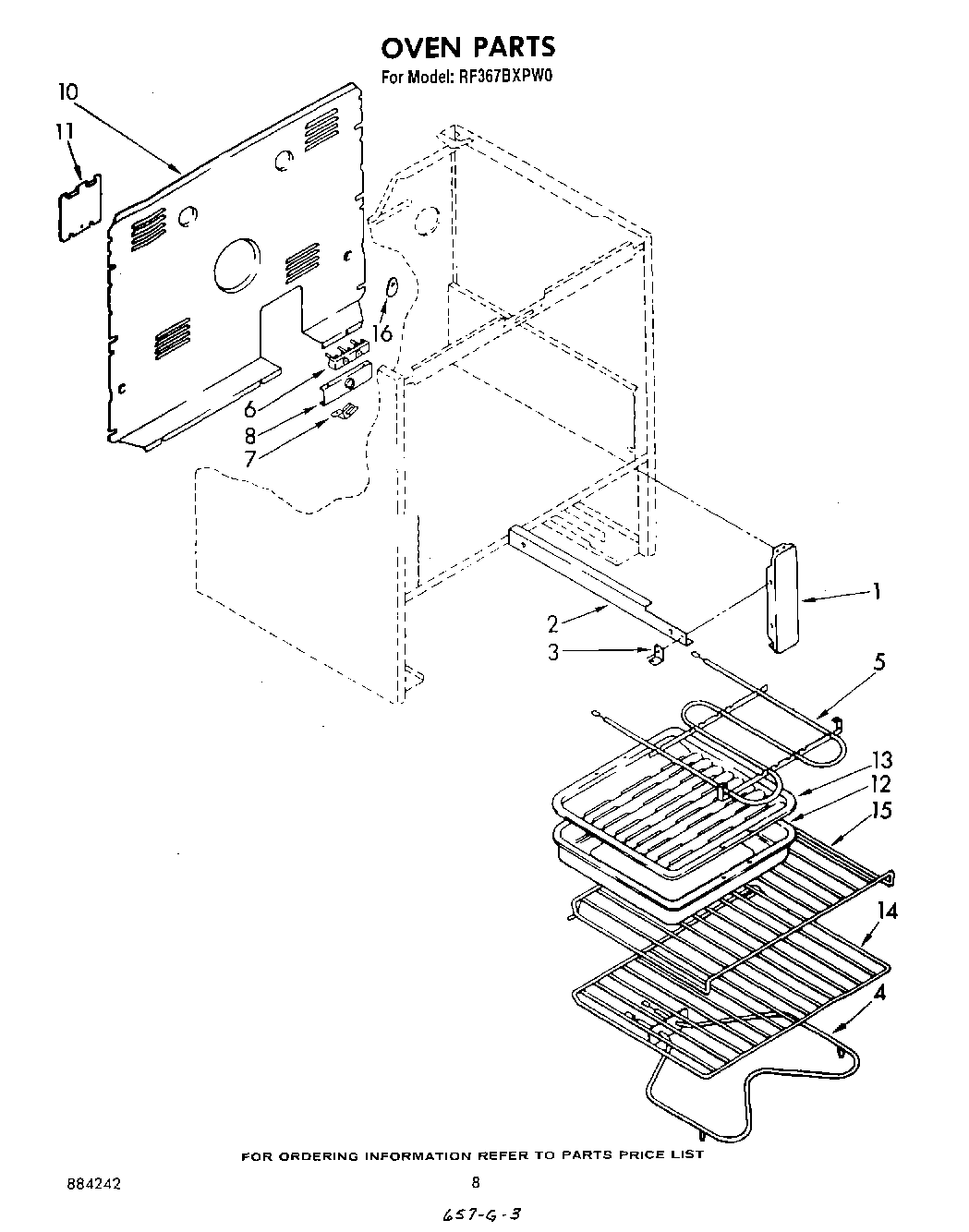

RF367BXPW0 06 – OVEN(CONTINUED), LITERATURE AND OPTIONAL

RF367BXPW0 06 – OVEN(CONTINUED), LITERATURE AND OPTIONAL

Written by

in

RF367BXPW0 06 – OVEN(CONTINUED), LITERATURE AND OPTIONAL

Products

Position	Product
	Unit, Broil (208V)
	WPL LIT313298
	WPL LIT313473
	WPL LIT884242
	511873 Whirlpool Refrigerator Paint
	WP312309 Whirlpool Bake Element
	WPL LIT313358
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (12 Ga. 150 c Black)
16	1
16	Leveler (Thinner) (2oz.)
16	Golden Harvest
16	Rotisserie Kit (RCK 81)
16	8212471 Whirlpool Oven Paint
16	Grease
16	Screw, 10A x 1/2 (2) (Black)
16	Enamel, New Avocado (1 Qt. Uncut)
16	Enamel, Coffee (1 Qt. Uncut)
16	dressing, element
16	Wire (14 Ga. 150 c Orange)
16	WPL 72112
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	350942 Whirlpool Spray Paint
16	WPL 799832
16	WPW10208653 Whirlpool Insulation
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	350930 Whirlpool White Spray Paint
