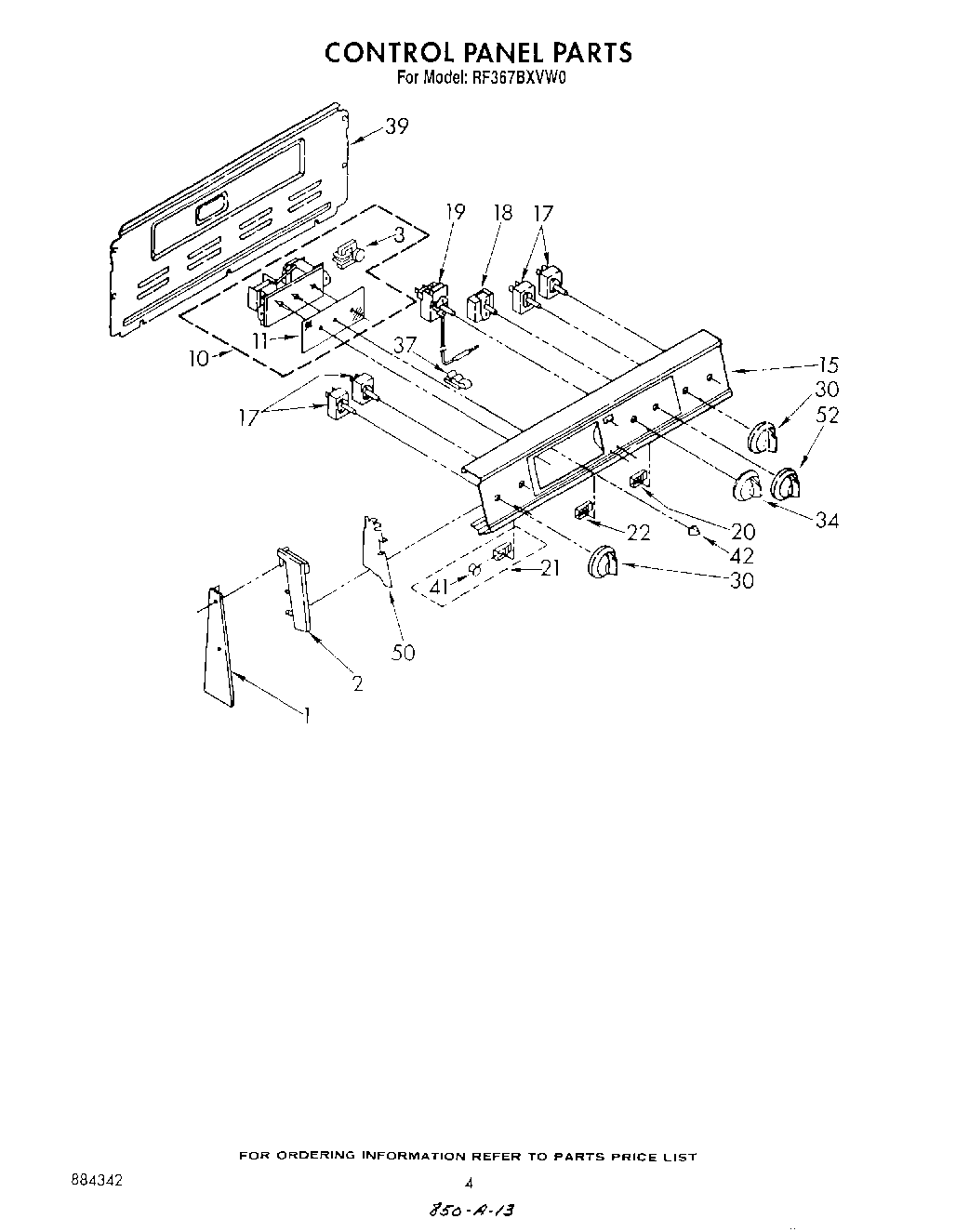

RF367BXVW0 03 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Motor, Timer
10	Timer, Clock (Includes No.6)
11	Glass, Timer
15	Washer
15	Panel, Control
17	SWITCH-INF
17	WP3148952 Whirlpool Oven Infinite Switch
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
22	Indicator Light (1)
30	Knob, Control (4)
34	Screw
34	Knob, Control (2)
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	Spring (3)
42	WP3169181 Whirlpool Knob
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	KNOB, CONTROL
52	WP688805 Whirlpool Spring Clip
