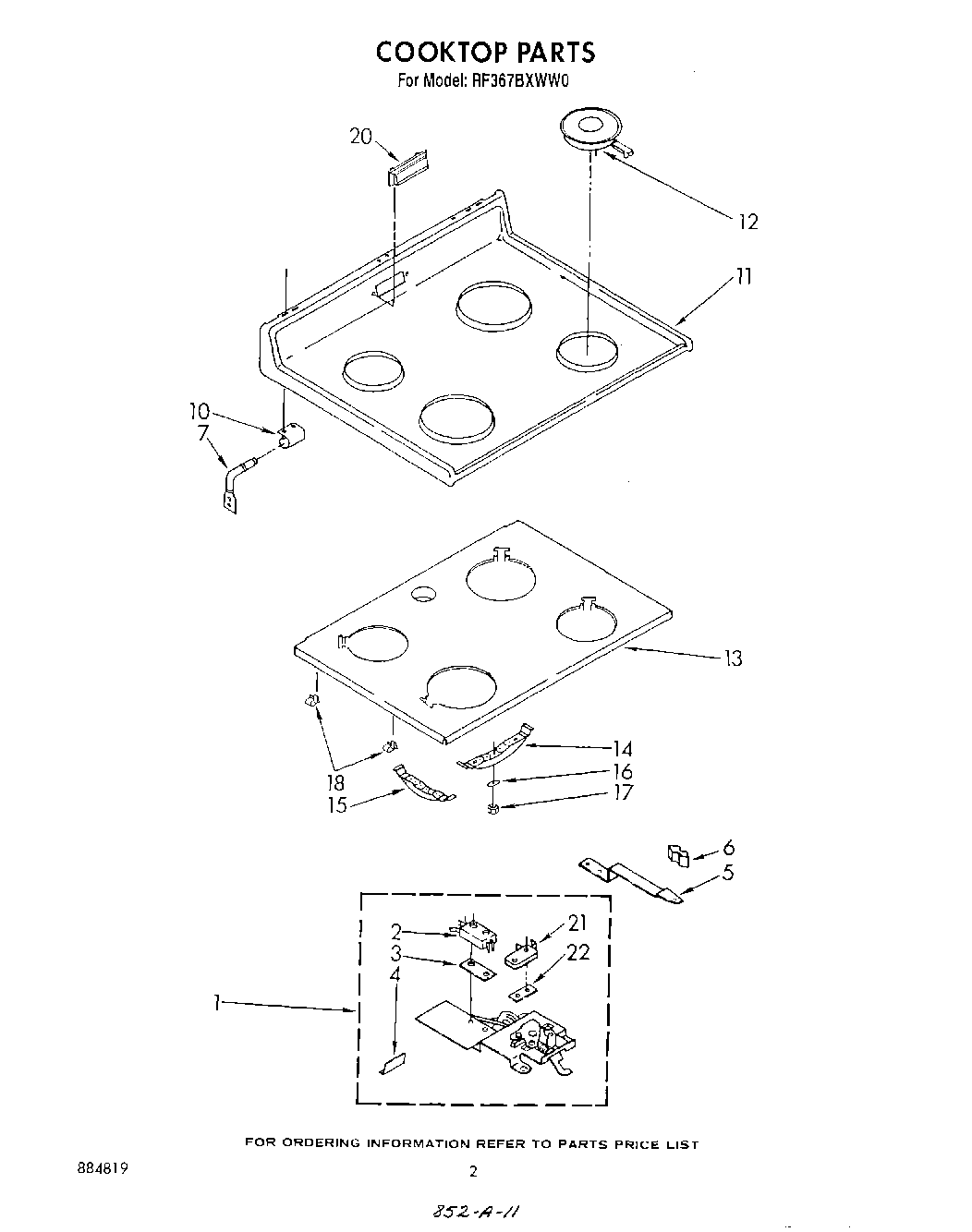

RF367BXWW0 02 – COOKTOP

Products

Position	Product
	List, Parts
	WPL LIT313358
	WPL LIT3148614
	WPL LIT3149916
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
4	WP486579 Whirlpool Air Conditioner Screw
5	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	Knob, Latch
7	Pin, Cooktop (2)
8	WPL 3149270
10	Bracket, Cooktop (2)
10	SCREW
11	Cooktop (Almond)
11	Cooktop (White)
12	WP3147132 Whirlpool Surface Element
12	WP3147131 Whirlpool Surface Element
13	Cooktop Support
14	bracket, element (1.5 KW)
15	bracket, element (2.0 KW)
16	Spring, Leaf
17	hex nut (8)
18	Clip
20	cover, vent (almond)
20	Cover, Vent (White)
20	Clip, Vent Cover
21	Switch, Lock
22	WPL 3147864
