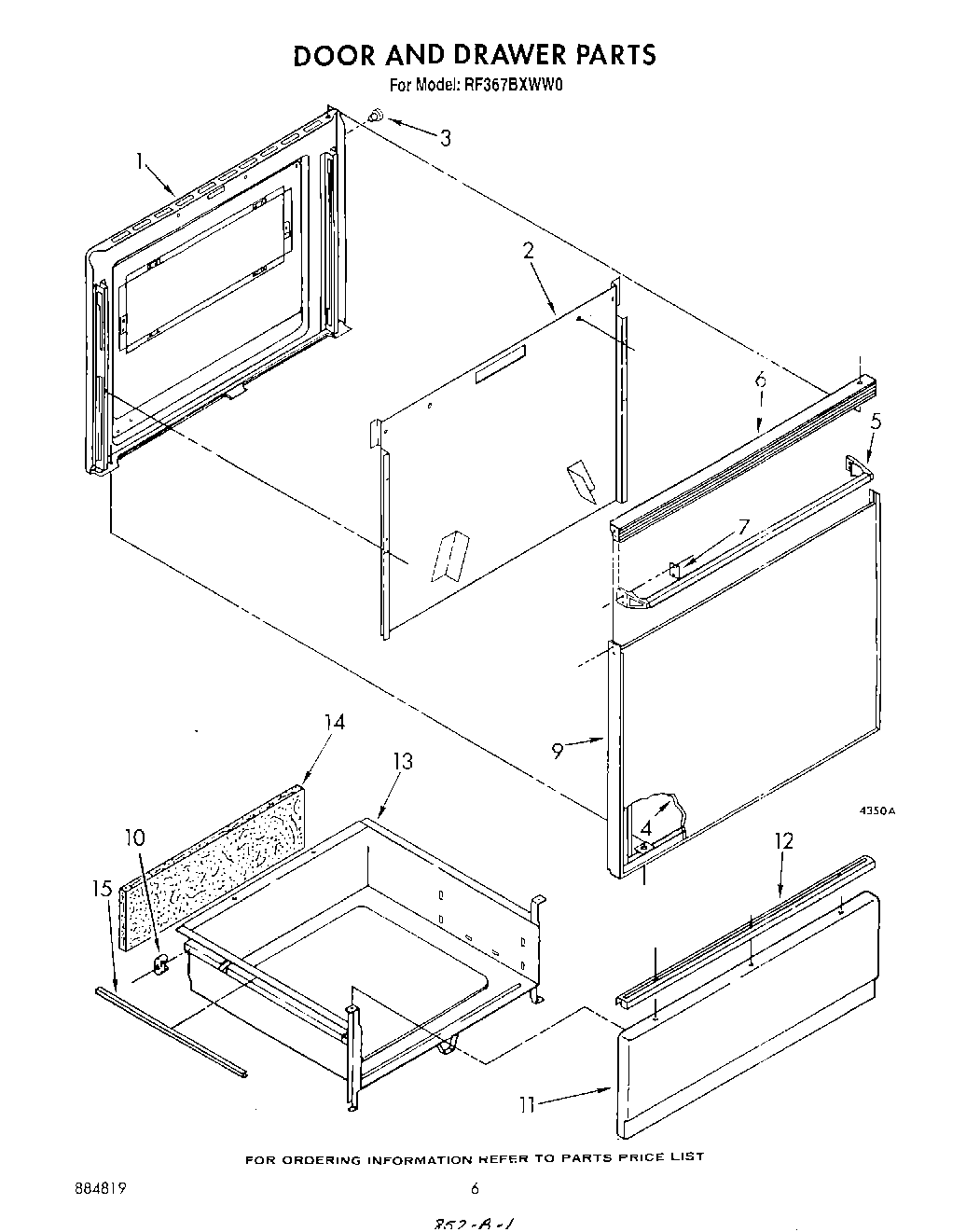

RF367BXWW0 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
2	Retainer, Insulation
2	Screw
3	Bumper (4)
4	Panel, Door (Black Glass)
5	Handle, Oven Door
5	WP355515 Whirlpool Screw
6	Top, Door (Black Model)
7	Clip, Mtg (2)
9	Frame, Door
10	Screw, 10A x 1/2 (2) (Black)
10	Glide, Rear (2)
11	WP488787 Whirlpool Refrigerator Screw
11	Panel, Drawer (Almond)
11	Panel Drawer (White)
12	Handle, Drawer
12	WP488627 Whirlpool Refrigerator Screw
13	Drawer, Utility
14	Pad, Sound
15	Protector, Drawer (2)
