RF367LXKV0 05 – DOOR

RF367LXKV0 05 – DOOR

Written by

in

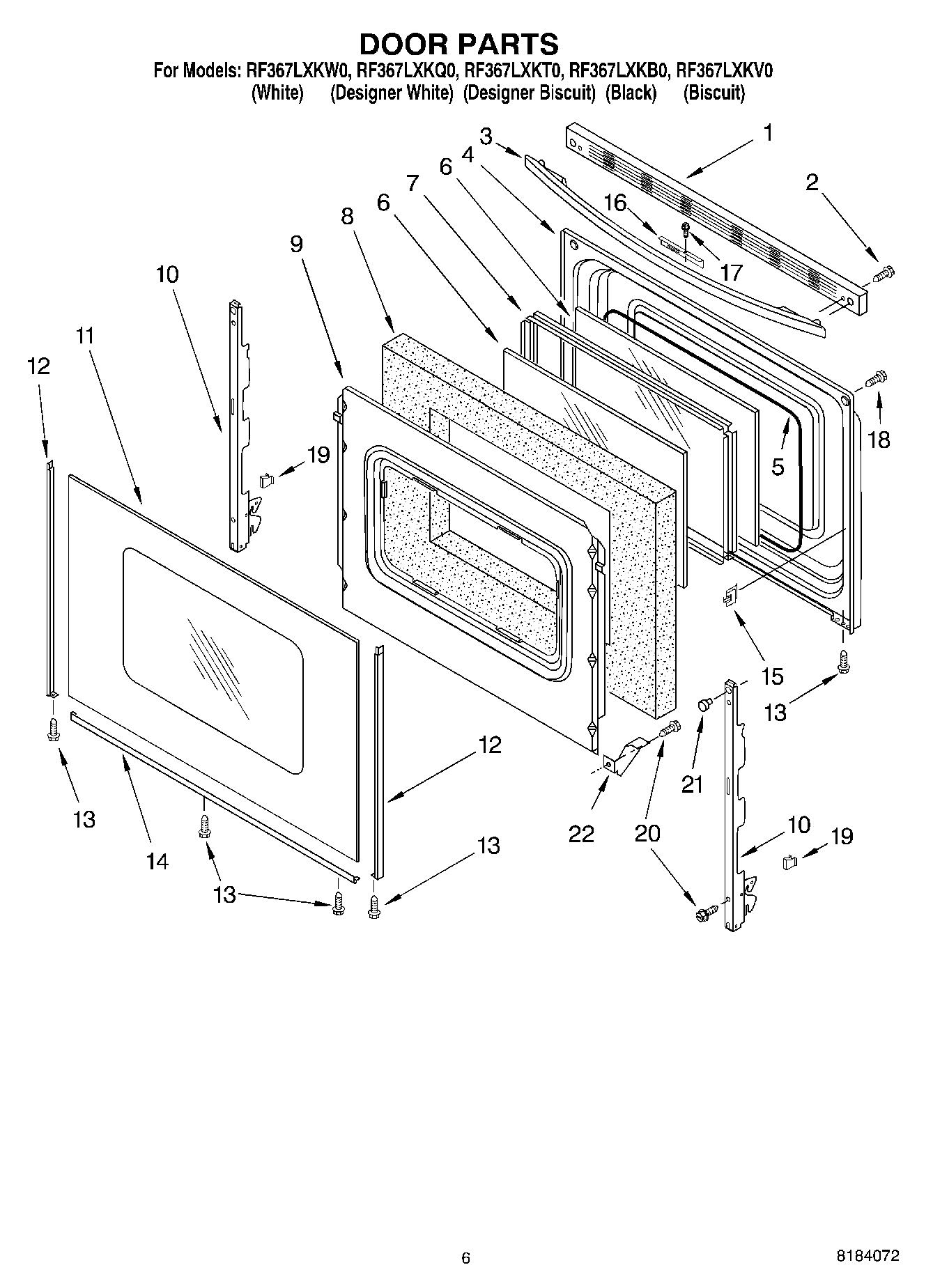

RF367LXKV0 05 – DOOR

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP8053834 Whirlpool Door Glass
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer Door (Biscuit)
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Grease
22	3196696 Whirlpool Clip
22	242831 Whirlpool Oven Wire
22	WP3196154 Whirlpool Screw Assembly
22	WPL 8523162
22	W11396691 Whirlpool Element Receptacle and Wire Kit
22	WPL 8273273
22	WPL 8273335
22	3184020 Whirlpool Oven Wire
22	8212471 Whirlpool Oven Paint
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	511873 Whirlpool Refrigerator Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	350942 Whirlpool Spray Paint
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	285006 Whirlpool Spray
22	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
22	1
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	Clip, Ground Wire
22	3400964 Whirlpool Oven Clip
22	WP3196794 Whirlpool Glass Bracket
22	814381 Whirlpool Pin
22	350930 Whirlpool White Spray Paint
