RF367LXMQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

RF367LXMQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

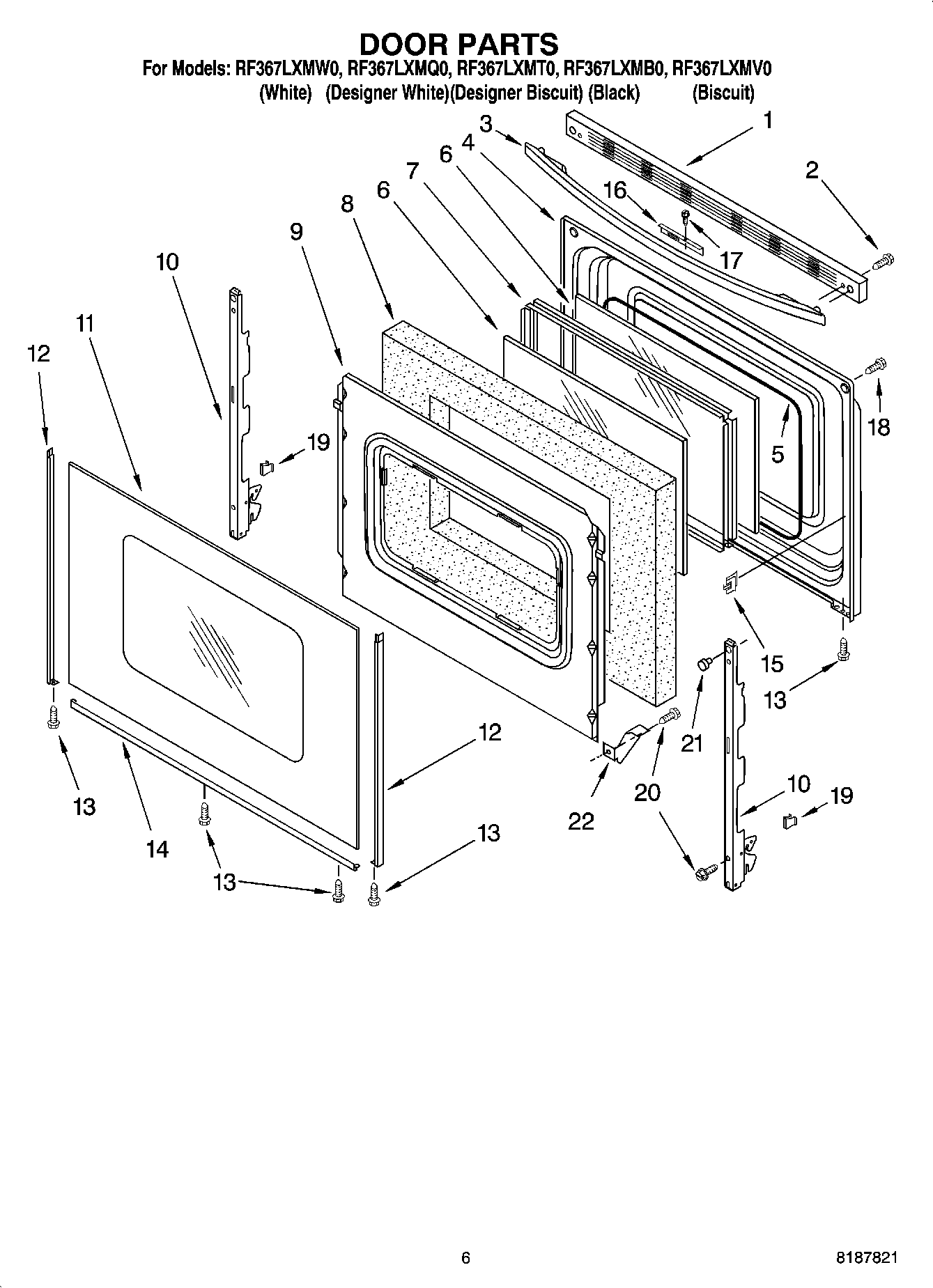

RF367LXMQ0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI122916A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3196696 Whirlpool Clip
	Grease
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	WPL ARI122915A
	WPL ARI122914A
	WPL ARI122913A
	WPL ARI122912A
	WPL ARI122911A
	WPL ARI122910A
	WPL 8523718
	Harness, Wire (Pyro Rocker)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI122917A
	WPL 8316781
	WP3196154 Whirlpool Screw Assembly
	Clip, Ground Wire
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	4392899 Whirlpool Biscuit Touch-Up Paint
	814381 Whirlpool Pin
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	WPL 4454241
	511873 Whirlpool Refrigerator Paint
1	Trim, Top (Black)
1	Trim, Top (Biscuit)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
11	WP8053834 Whirlpool Door Glass
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523173 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523178 Whirlpool Door Trim
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	WP3196794 Whirlpool Glass Bracket
