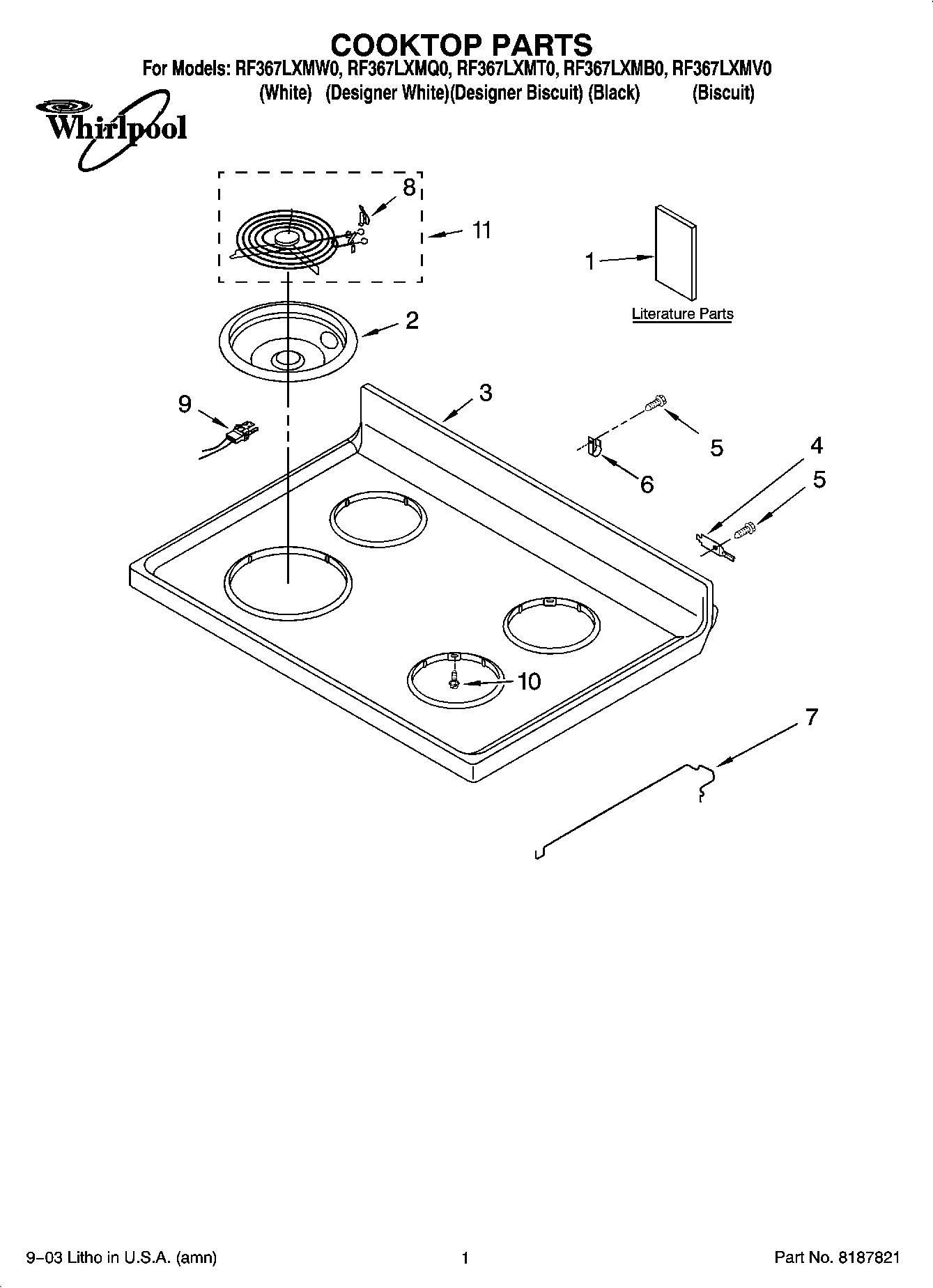

RF367LXMT0 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Guide, Use & Care
1	Literature Parts (English/Spanish)
1	Literature Parts (Installation Instructions (English))
2	8522881 Whirlpool Oven 8" Drip Pan
2	8522882 Whirlpool Oven 6" Drip Pan
2	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2	WPW10290350 Whirlpool Stove Drip Bowl
3	Cooktop (Biscuit)
3	8195534 Whirlpool Cooktop
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP308605 Whirlpool Refrigerator Clamp
7	WP3195812 Whirlpool Cooktop Rod
8	WP3195917 Whirlpool Clip Assembly
9	814399 Whirlpool Receptacle Kit
10	WP3196154 Whirlpool Screw Assembly
11	WP660532 Whirlpool Oven Surface Element
11	WPW10259865 Whirlpool Range 8" Surface Element
