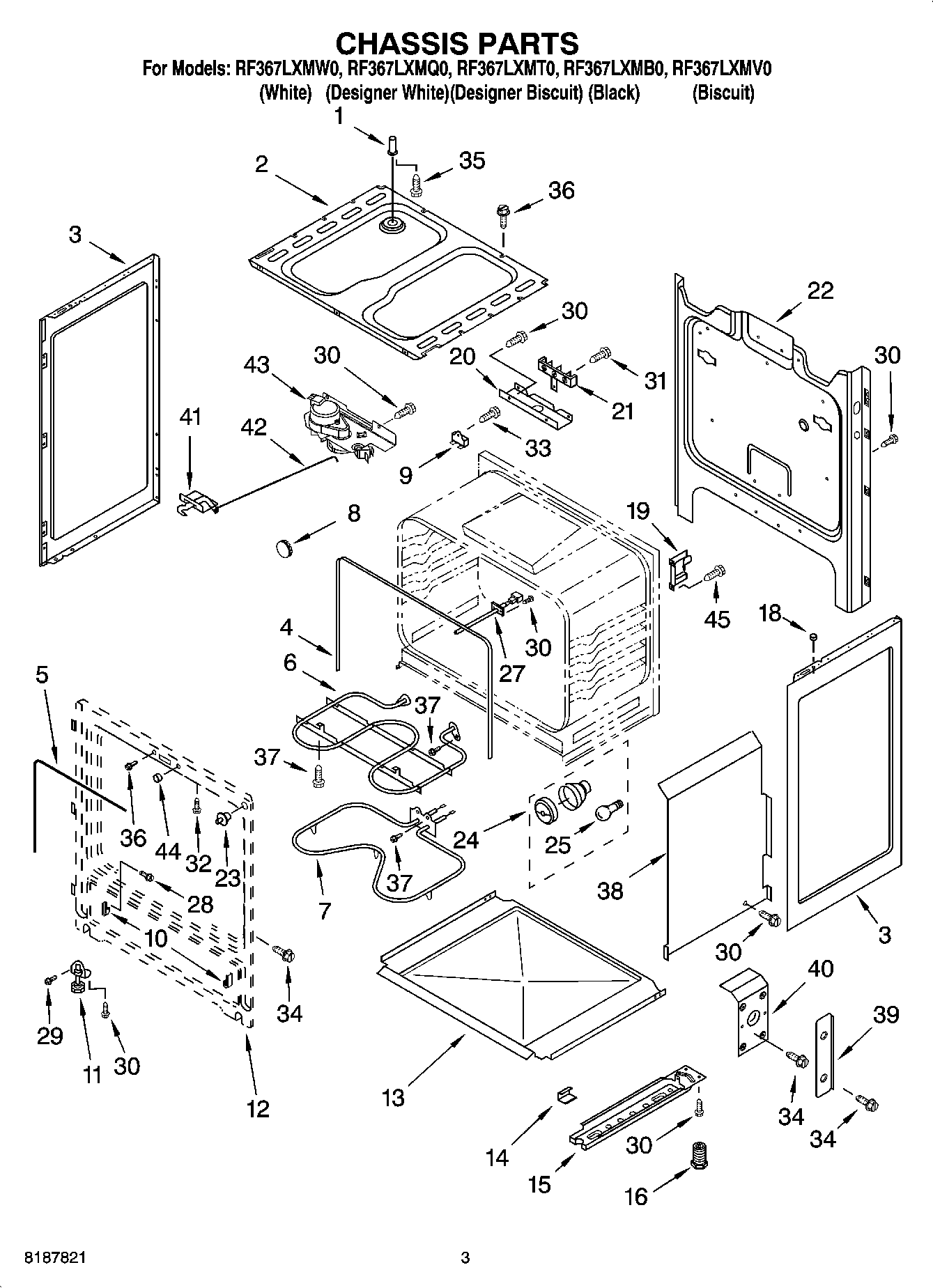

RF367LXMW0 03 – CHASSIS PARTS

RF367LXMW0 03 – CHASSIS PARTS

Written by

in

RF367LXMW0 03 – CHASSIS PARTS

Products

PositionProduct
19755804 Whirlpool Oven Vent Tube
2W11699791 Whirlpool Burner Box
3W10162246 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4Seal, Oven Flange
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
8Button, Plug
9WP3196548 Whirlpool Thermal Fuse
10WP3195546 Whirlpool Drawer Glide
11WP3196037 Whirlpool Leveling Foot
12Frame, Front Not Serviced
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
18238614 Whirlpool Bumper Hinge
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP112432 Whirlpool Nut Assembly
21WP9761958 Whirlpool Range Terminal Block
22Back, Main
23WP3195993 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29Screw
31WP3400016 Whirlpool Screw Assembly
32SCREW
333196172 Whirlpool Oven Screw
34WP7101P246-60 Whirlpool Screw
35WP3196567 Whirlpool Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38Retainer, Side (2)
39Shield, Outer (2)
40Shield, Inner (2)
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43WPW10107830 Whirlpool Stove Door Lock Latch Assembly
44W10877054 Whirlpool Spacer Assembly
45WP3196557 Whirlpool Screw
45WPW10208653 Whirlpool Insulation
45Insulation
45WP8272612 Whirlpool Insulation
