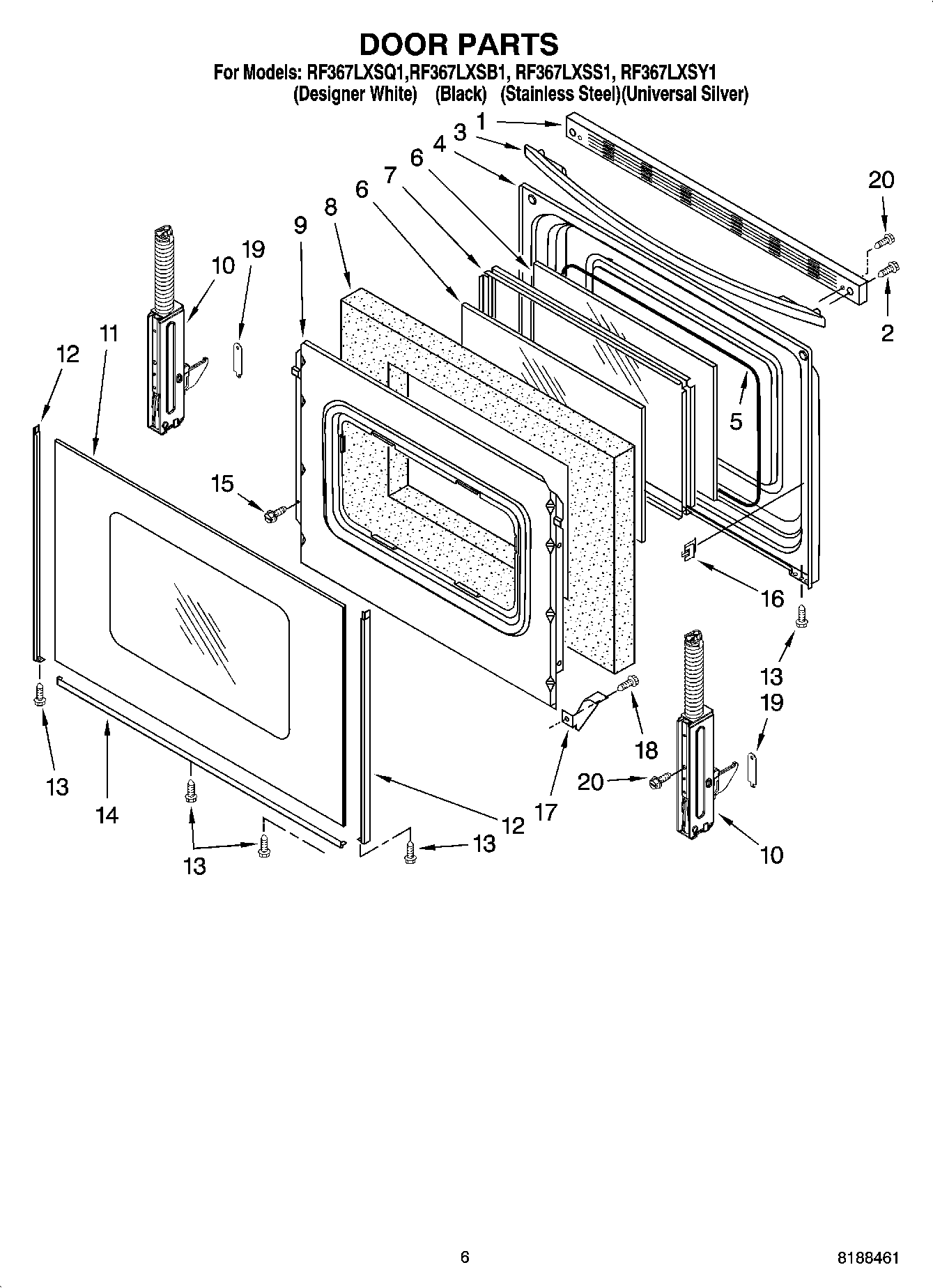

RF367LXSS1 05 – DOOR PARTS, OPTIONAL PARTS

RF367LXSS1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF367LXSS1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI161211A
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196154 Whirlpool Screw Assembly
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	3184020 Whirlpool Oven Wire
	Grease
	WPL 8524132
	WPL ARI161210A
	WPL ARI161209A
	WPL ARI161208A
	WPL ARI161207A
	WPL ARI161206A
	WPL 9762429
	WPL 9762955
	WPL W10115055
	WPL W10115056
	WPL ARI161212A
	242831 Whirlpool Oven Wire
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPL 799832
	W11447673 Whirlpool Range Tip Anchor
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350942 Whirlpool Spray Paint
	Clip, Ground Wire
	799344 Whirlpool Refrigerator Paint
1	Trim, Top (White)
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (Universal Silver)
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Universal Silver)
3	Handle, Door (Black)
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Stainless Steel)
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	8184858 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
14	Trim, Bottom (Universal Silver)
14	WP8523180 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	Clip, Glass (4)
17	WP3196794 Whirlpool Glass Bracket
18	WP3196175 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
20	W10777162 Whirlpool Screw
