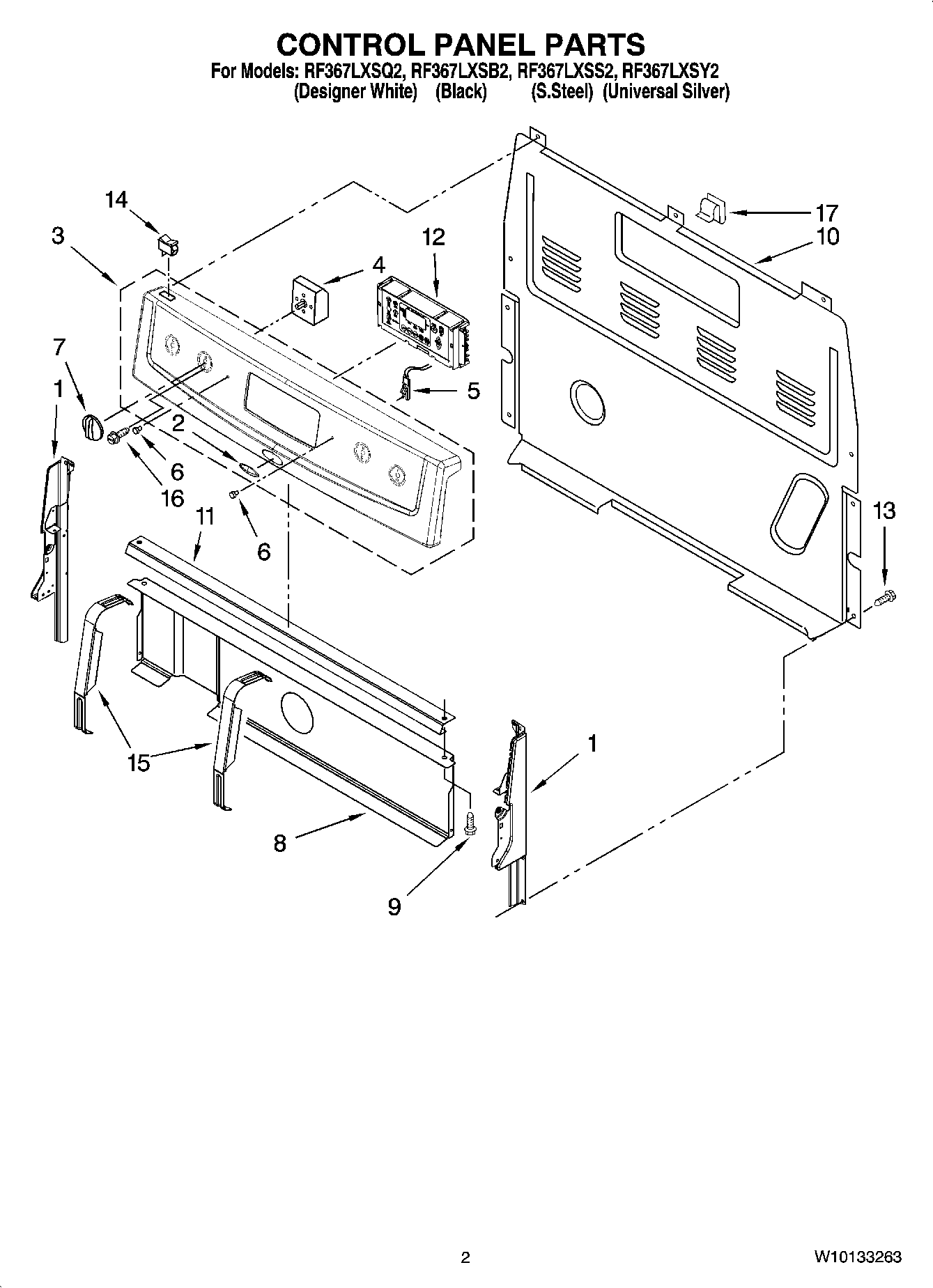

RF367LXSS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Control (Black)
3	Panel, Control (Stnls./Univ. Silv.)
3	Panel, Control (White)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9758060 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	Bracket, Console
12	Control, Range (White)
12	Control, Range (Black)
13	SCREW
14	3149360 Whirlpool Light Switch
14	WP4314961 Whirlpool Lite Switch
15	BRACKET, MOUNTING EOC
16	WP3400882 Whirlpool Screw
17	WP8273564 Whirlpool Clip
