RF367LXSY3 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in

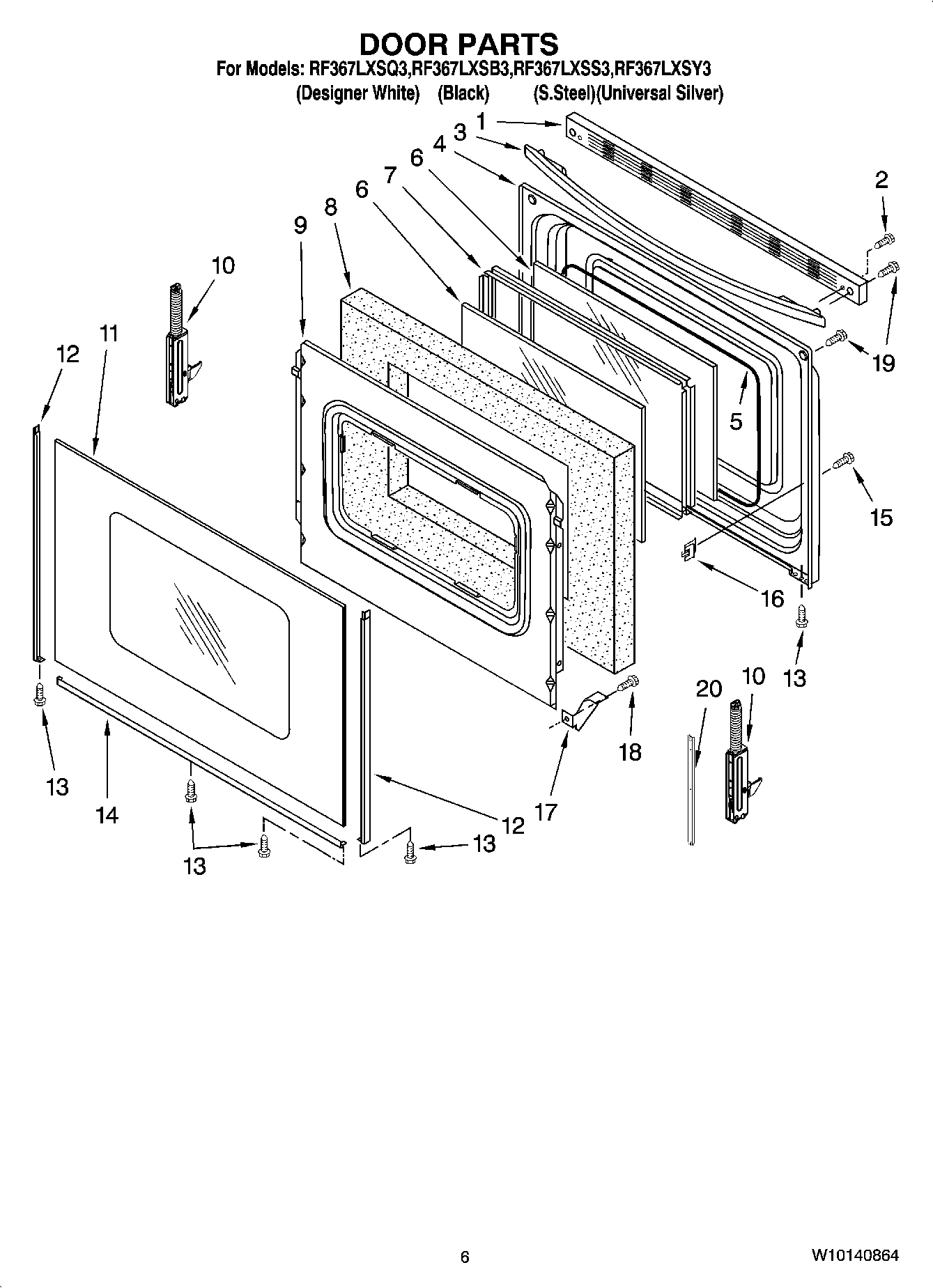

RF367LXSY3 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI161269A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL W10111767
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3184020 Whirlpool Oven Wire
Grease
WPL ARI161268A
WPL ARI161267A
WPL ARI161266A
WPL ARI161265A
WPL ARI161264A
WPL W10111777
WPL W10111791
W10084710 Whirlpool Wire Harness
WPL ARI161270A
WP3196154 Whirlpool Screw Assembly
Wire (14 Ga. 200 c Brown)
Clip, Ground Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392899 Whirlpool Biscuit Touch-Up Paint
W11447673 Whirlpool Range Tip Anchor
WPW10208653 Whirlpool Insulation
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (White)
1
Trim, Top (Universal Silver)
2
WP3196164 Whirlpool Screw
3
Handle, Door (White)
3
Handle, Door (Black)
3
Handle, Door (Universal Silver)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
10
W10347464 Whirlpool Door Hinge
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Stainless Steel)
12
WP8523172 Whirlpool Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
8184858 Whirlpool Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
14
Trim, Bottom (Universal Silver)
14
WP8523177 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
16
Clip, Glass (4)
17
WP3196794 Whirlpool Glass Bracket
18
WP3196175 Whirlpool Screw
19
W10777162 Whirlpool Screw
20
W11502236 Whirlpool Door Trim
←
