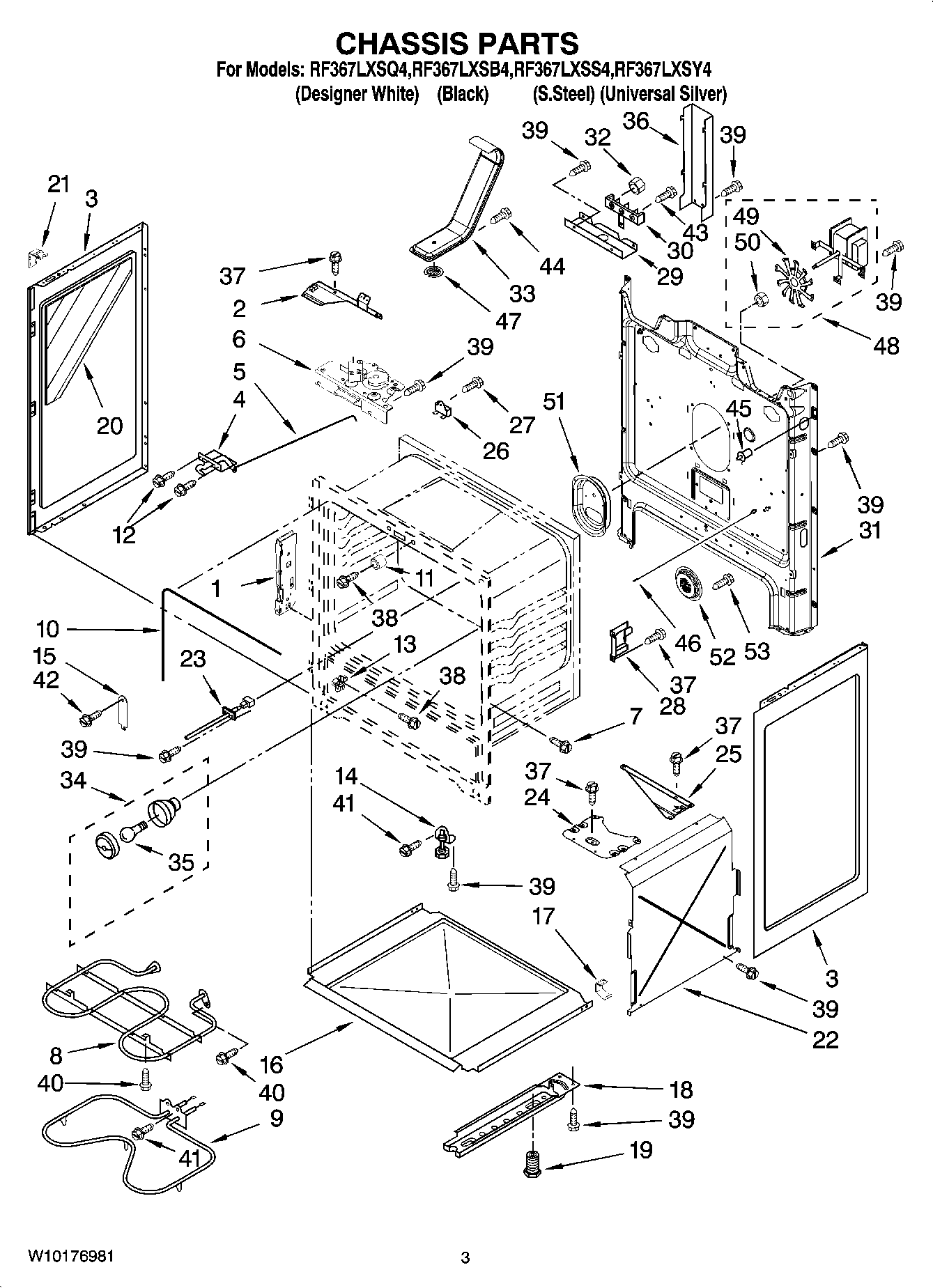

RF367LXSY4 03 – CHASSIS PARTS

Products

PositionProduct
1W10647259 Whirlpool Hinge Receiver
2Support, Corner LR
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4WP9761013 Whirlpool Door Latch
5Rod, Latch
6WPW10107830 Whirlpool Stove Door Lock Latch Assembly
7WPW10067840 Whirlpool Screw
8W10856603 Whirlpool Broil Element
9WPW10308477 Whirlpool Bake Element
10W11542153 Whirlpool Door Gasket
11W10877054 Whirlpool Spacer Assembly
12W11169708 Whirlpool Screw
13WPW10114344 Whirlpool Drawer Glide
14WP3196037 Whirlpool Leveling Foot
159761517 Whirlpool Oven Clip Assembly
16WP8054068 Whirlpool Retainer
17Clip, Panel (6)
18WPW10306546 Whirlpool Base Rail
19WPW10058460 Whirlpool Appliance Levelling Leg
20Insulation
21Clip, Mounting
22W10450380 Whirlpool Retainer
23WPW10181986 Whirlpool Oven Sensor
24Support, Front (2)
25Support, Corner RR
26WP3196548 Whirlpool Thermal Fuse
273196172 Whirlpool Oven Screw
28W10404688 Whirlpool Bracket Support
29W11728255 Whirlpool Service Bracket
30WP9761958 Whirlpool Range Terminal Block
31Back, Main
32WP112432 Whirlpool Nut Assembly
33WPW10134285 Whirlpool Vent Tube
34W11594027 Whirlpool Range Oven Light Socket
35RANGE ONLY 40W 120V APPL BULB
36WPW10326122 Whirlpool Black Cover
37WP3196175 Whirlpool Screw
38WP3400832 Whirlpool Screw
39SCREW
40WP3196174 Whirlpool Screw
41Screw
42W10777162 Whirlpool Screw
43WP3400016 Whirlpool Screw Assembly
44WP489491 Whirlpool Refrigerator Screw
45W11243424 Whirlpool Light Switch
469757239 Whirlpool Oven Door Rod
479761301 Whirlpool Oven Screen
48WP9758925 Whirlpool Convection Fan
49WP4452226 Whirlpool Convection Fan
50Nut
51Cover, Convection Fan
52WPW10134124 Whirlpool Fan Cover
53WP4449809 Whirlpool Screw
53WPW10208653 Whirlpool Insulation
53Insulation, Back
538053915 Whirlpool Oven Insulation
53Insulation
