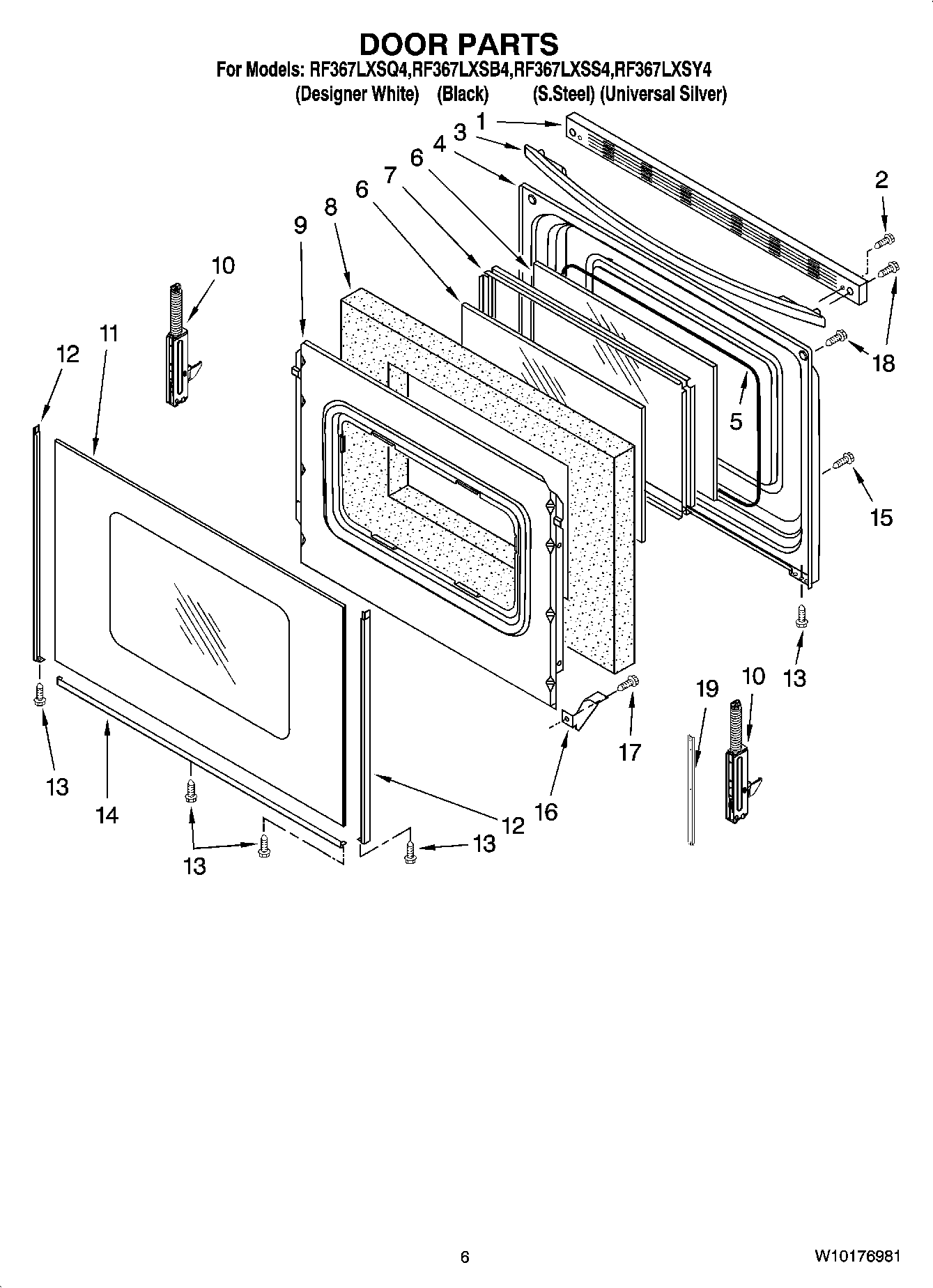

RF367LXSY4 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
RF367LXSY4 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI161278A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL W10111767
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI161277A
WPL ARI161276A
WPL ARI161275A
WPL ARI161274A
WPL ARI161273A
WPL ARI161272A
WPL W10111777
WPL W10111791
W10084710 Whirlpool Wire Harness
WPW10144763 Whirlpool Tie Wire
242831 Whirlpool Oven Wire
WPL 799832
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
W11447673 Whirlpool Range Tip Anchor
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Clip, Ground Wire
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1
Trim, Top (White)
1
Trim, Top (Universal Silver)
1
WP9762391 Whirlpool Door Trim Assembly
2
WP3196164 Whirlpool Screw
3
Handle, Door (Black)
3
Handle, Door (Universal Silver)
3
Handle, Door (White)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
10
W10347466 Whirlpool Door Hinge
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10330077 Whirlpool Door Glass
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523172 Whirlpool Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
8184858 Whirlpool Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
Trim, Bottom (Universal Silver)
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
16
WP3196794 Whirlpool Glass Bracket
17
WP3196175 Whirlpool Screw
18
W10777162 Whirlpool Screw
19
W11502236 Whirlpool Door Trim
←
