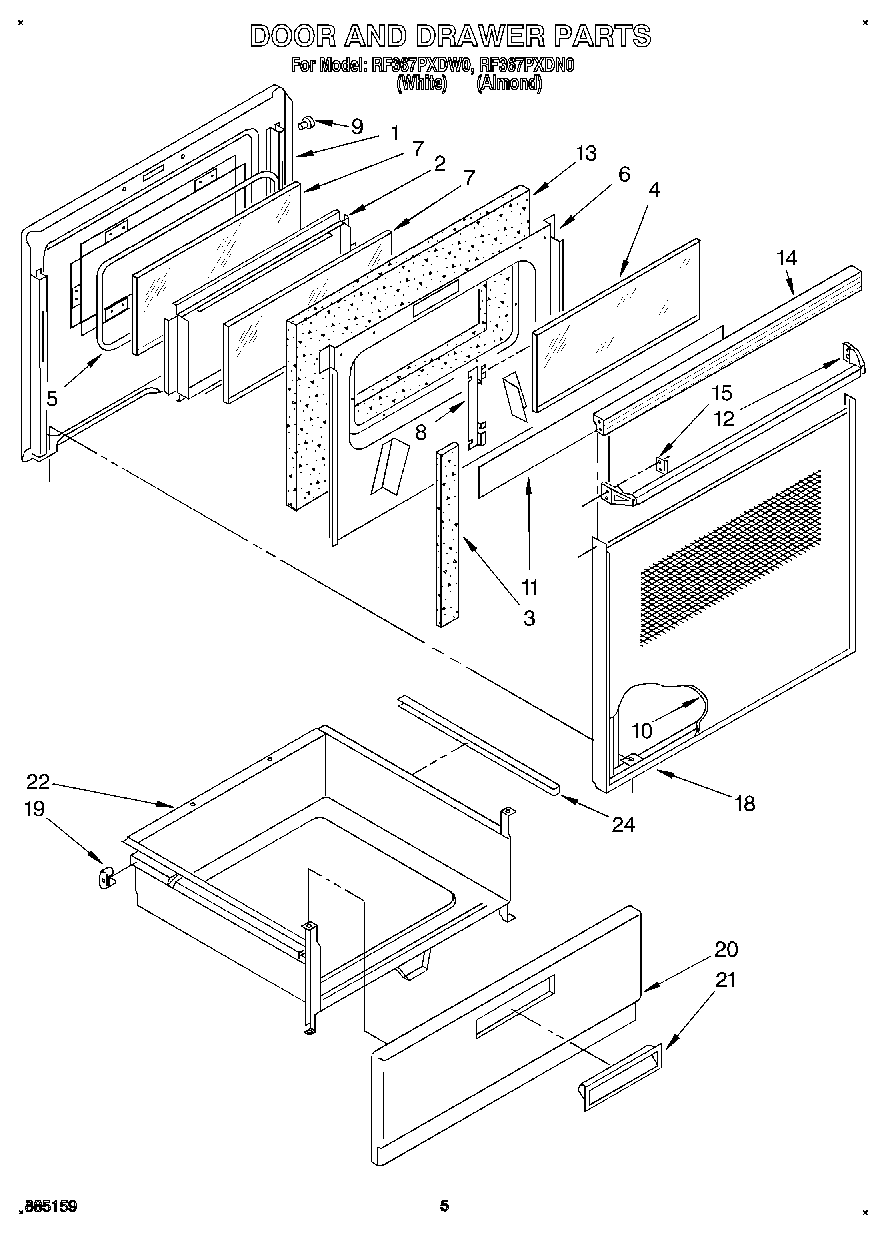

RF367PXDW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass Panel, Outer (Black)
11	Foil, Door
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (Black)
13	Insulation, Door
14	Top, Door Frame (Black)
15	Clip, Mtg (2)
18	Frame, Door (Black)
18	Handle, Door (Screw (4))
18	Back Splash (Screw (4) 10AB x 1/2“)
19	Glide, Rear (2)
20	Panel, Drawer (Almond)
20	Panel, Drawer (White)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Snap-In (Almond)
21	Handle, Snap-In (White)
22	Drawer, Utility
24	Protector, Drawer (2)
