RF367PXDW0 05 – UNIT, LIT/OPTIONAL

RF367PXDW0 05 – UNIT, LIT/OPTIONAL

Written by

in

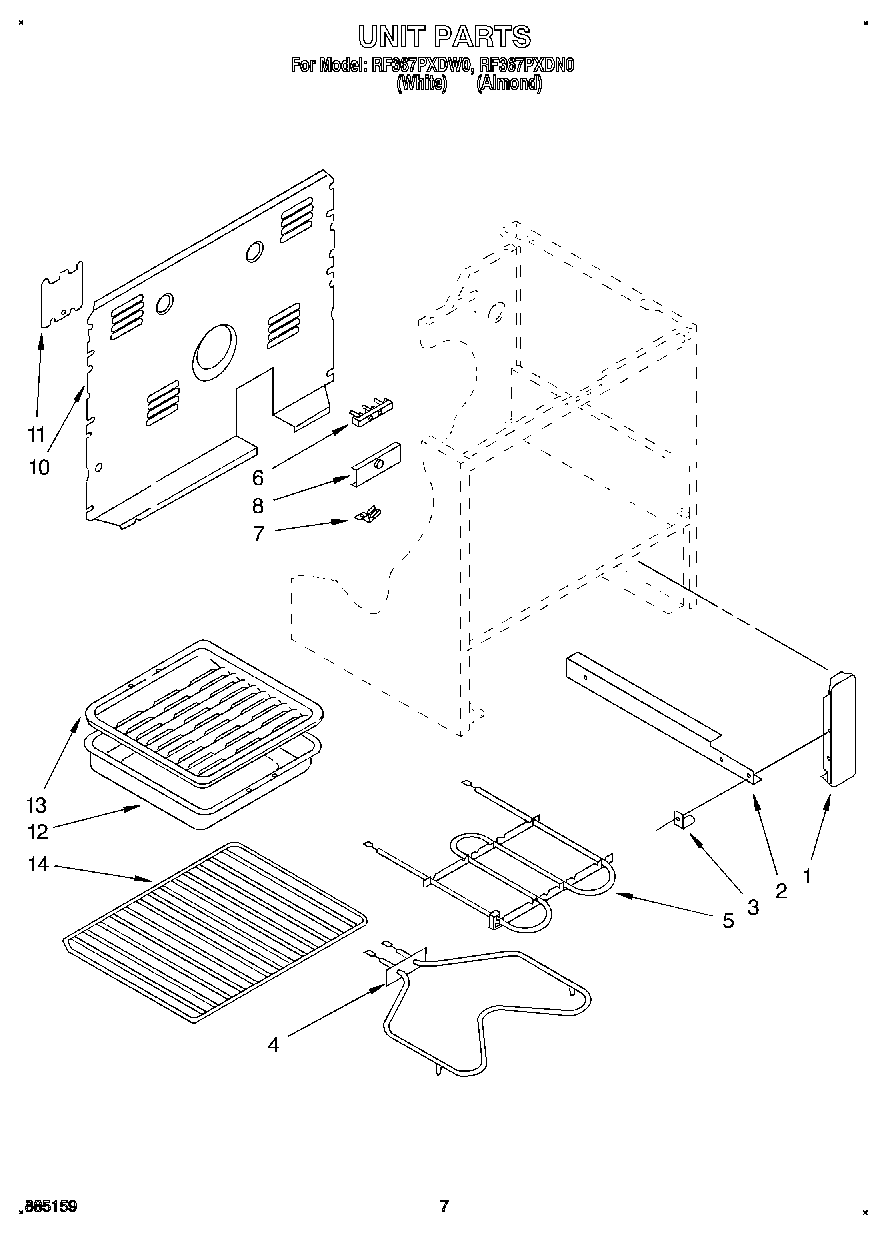

RF367PXDW0 05 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Harness, Wire (Oven)
FOIL, ALUMINUM OVEN (18“ X 25 )
Wiring Harness (Lock Switch)
Clip, Snap-In
Harness, Wire (Oven Light)
WPL LIT677973
BURNER RECEPTACLE KIT
Harness, Wire (Surface unit)
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
3Screw, 10A x 1/2 (2) (Black)
4ELMNT-BAKE
4WP312309 Whirlpool Bake Element
5Screw (2)
5Unit, Broil (208V)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14Leveler (Thinner) (2oz.)
14Wire (14 Ga. 150 c Yellow)
14Wire (12 Ga. 150 c Black)
1418 Ga. 80~c Rating (Red)
14Wire (14 Ga. 200 c Brown)
14350930 Whirlpool White Spray Paint
141
14Grease
148212471 Whirlpool Oven Paint
14WPL 308173
14Wire (14 Ga. 150 c Orange)
14Wire (14 Ga. 150 c Green)
14Platinum (Uncut)
14Enamal, Toast (1 Qt. Uncut)
14Paint, Spray (13 Oz.) (Platinum)
14Toast
14Golden Harvest (Uncut)
14Golden Harvest
1472113 Whirlpool Touch-Up Paint
1472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14Almond (Uncut)
14WP72107 Whirlpool Touchup
14799344 Whirlpool Refrigerator Paint
1472017 Whirlpool Appliance Touch-Up Paint White
14WPL 72112
14350942 Whirlpool Spray Paint
14511873 Whirlpool Refrigerator Paint
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Blue)
14242831 Whirlpool Oven Wire
14285006 Whirlpool Spray
14Paint, Spray 13 Oz. (Avocado)
14paint, spray 13 oz. (coffee)
14Paint, Touch-Up 1/2 Oz. (Coffee)
1472109 Whirlpool Dacor Avocado Touch-Up Paint
14Wire, 25“ Roll (White 14 GA.)
14Wire, 25` Roll (Red 14 Ga.)
14Wire, 25` Roll (Black 14 Ga.)
14WPL 799832
14350956 Whirlpool Spray Assembly
