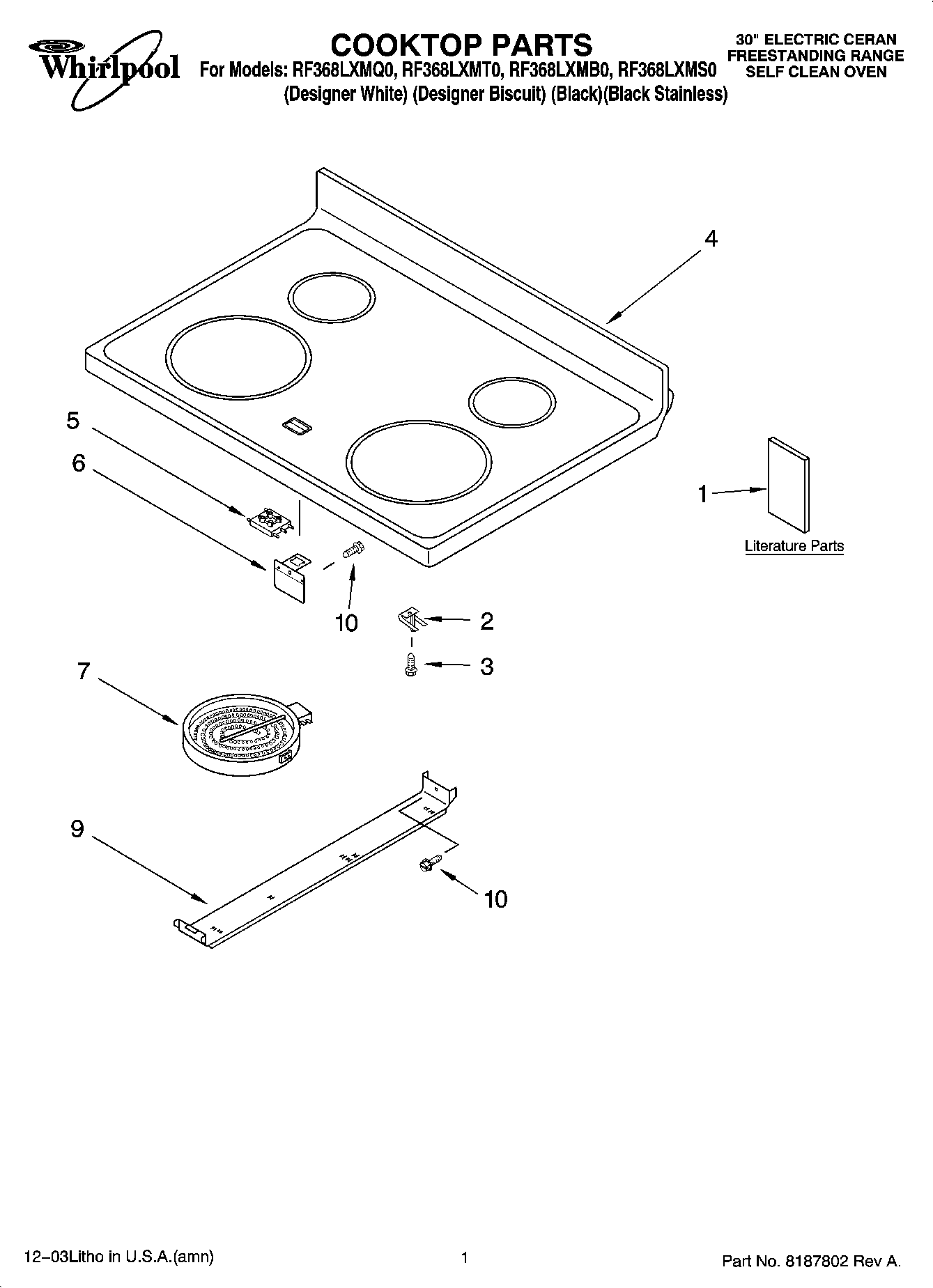

RF368LXMT0 01 – COOKTOP PARTS
Written by
in
RF368LXMT0 01 – COOKTOP PARTS
Products
Position
Product
1
Safer Cooking Tips
1
Guide, Use & Care
1
Literature Parts (Installation Instructions (English))
1
Literature Parts (Tech Sheet)
1
Literature Parts (English/Spanish)
2
Spring, Locator
3
WP3196170 Whirlpool Screw
4
Cooktop (Black (B & S Model))
4
Cooktop (Biscuit (T Model))
4
Cooktop (White (Q Model))
5
Light, Indicator (Hot Surface)
6
Bracket, Ind Light
7
ELMNT-SURF
7
W11047722 Whirlpool Radiant Surface Element
9
Bracket, Element ((2))
10
WP3196557 Whirlpool Screw
←
