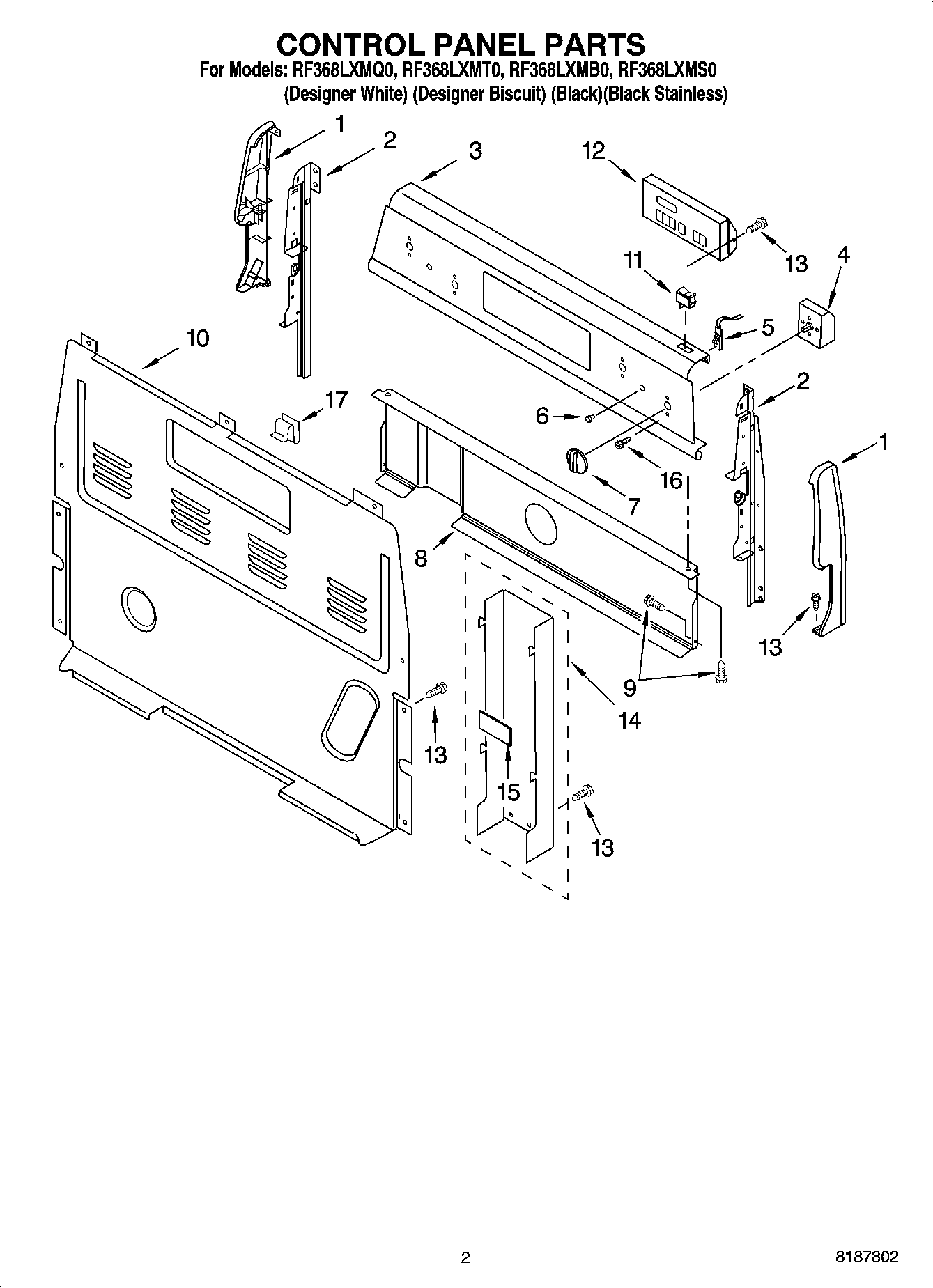

RF368LXMT0 02 – CONTROL PANEL PARTS

RF368LXMT0 02 – CONTROL PANEL PARTS

Written by

in

RF368LXMT0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (White Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Stainless)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Biscuit)
11WP4314961 Whirlpool Lite Switch
113149360 Whirlpool Light Switch
12Control, Range (Biscuit)
12WP6610457 Whirlpool Electronic Control Board + Core
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
15Card, Insulation
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
