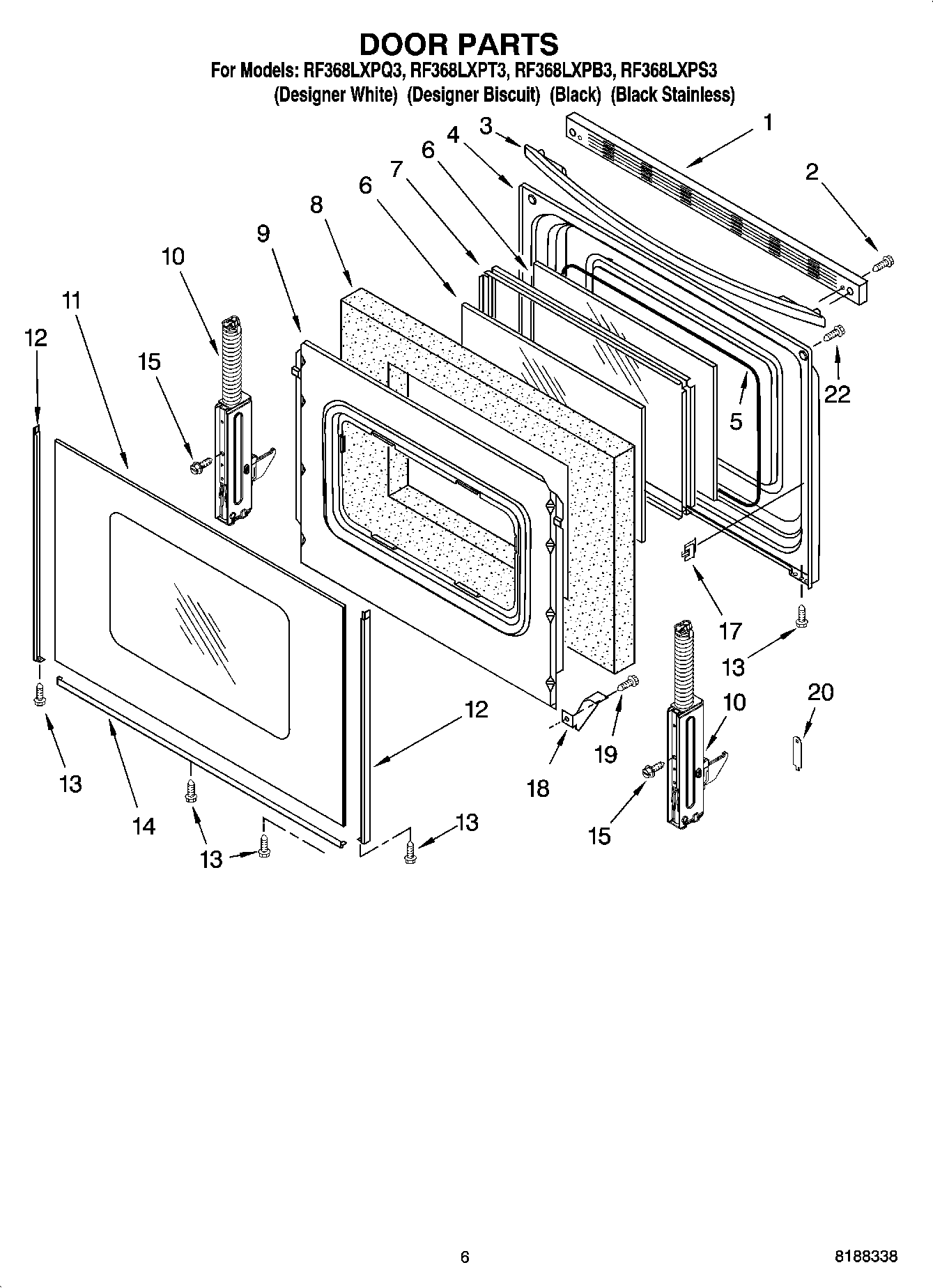

RF368LXPB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF368LXPB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF368LXPB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI161359A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
3184020 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL ARI161358A
WPL ARI161357A
WPL ARI161356A
WPL ARI161355A
WPL ARI161354A
WPL 9761467
WPL 9761457
WPL 4454063
WPL 9758173
WPL ARI161360A
WPL 8524132
Clip, Ground Wire
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
WPW10208653 Whirlpool Insulation
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
4396923 Whirlpool Broil Pan Set Gray Porcelain
W11447673 Whirlpool Range Tip Anchor
WPL 799832
511873 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350942 Whirlpool Spray Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Black and S.Steel Models)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Outer (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer (Stainless Steel)
11WPW10118454 Whirlpool Door Outer Glass White
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
209761517 Whirlpool Oven Clip Assembly
22W10777162 Whirlpool Screw
