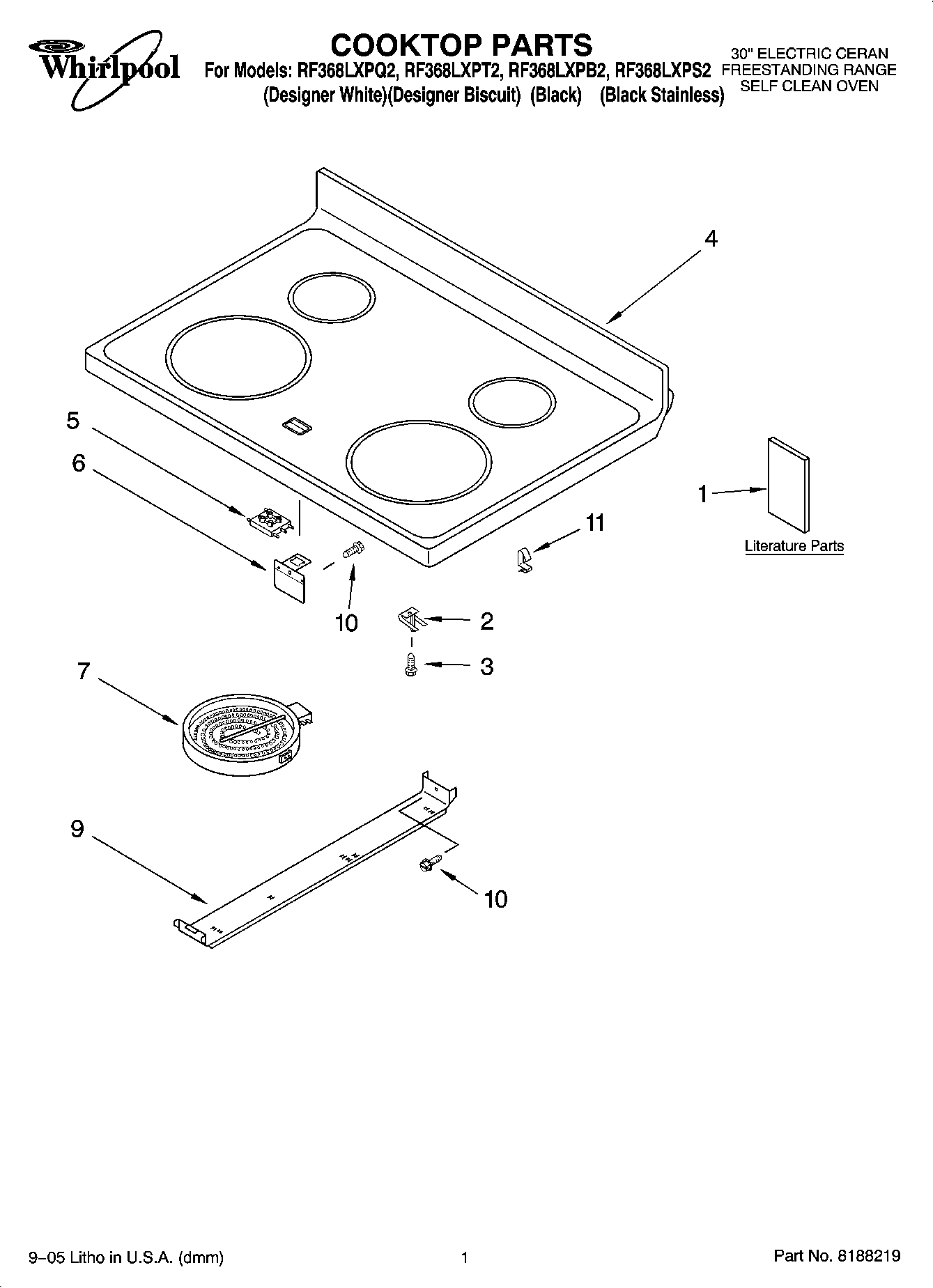

RF368LXPQ2 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Safe Cooking Tips
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	Installation Instructions Anti-Tip Template
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (White (Q Model))
4	Cooktop (Biscuit (T Model))
4	Cooktop (Black (B & S Model))
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
9	Bracket, Element ((2))
10	WP3196557 Whirlpool Screw
11	Clip - Mounting
