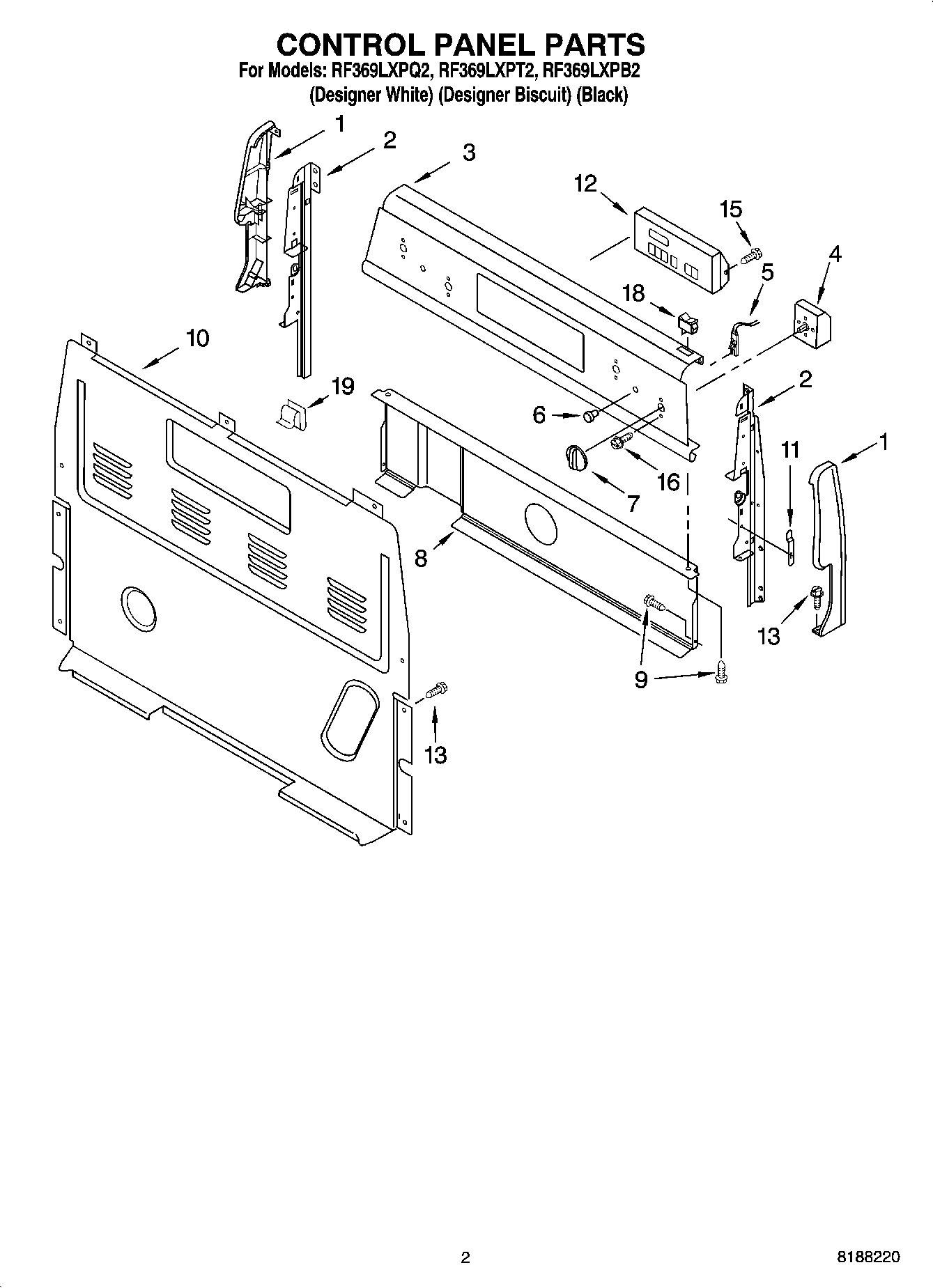

RF369LXPB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113196200 Whirlpool Clip
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
12Control, Range (Biscuit)
12WP6610457 Whirlpool Electronic Control Board + Core
13SCREW
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
18Switch, Rocker (Biscuit)
183149360 Whirlpool Light Switch
18WP4314961 Whirlpool Lite Switch
19WP8273564 Whirlpool Clip
