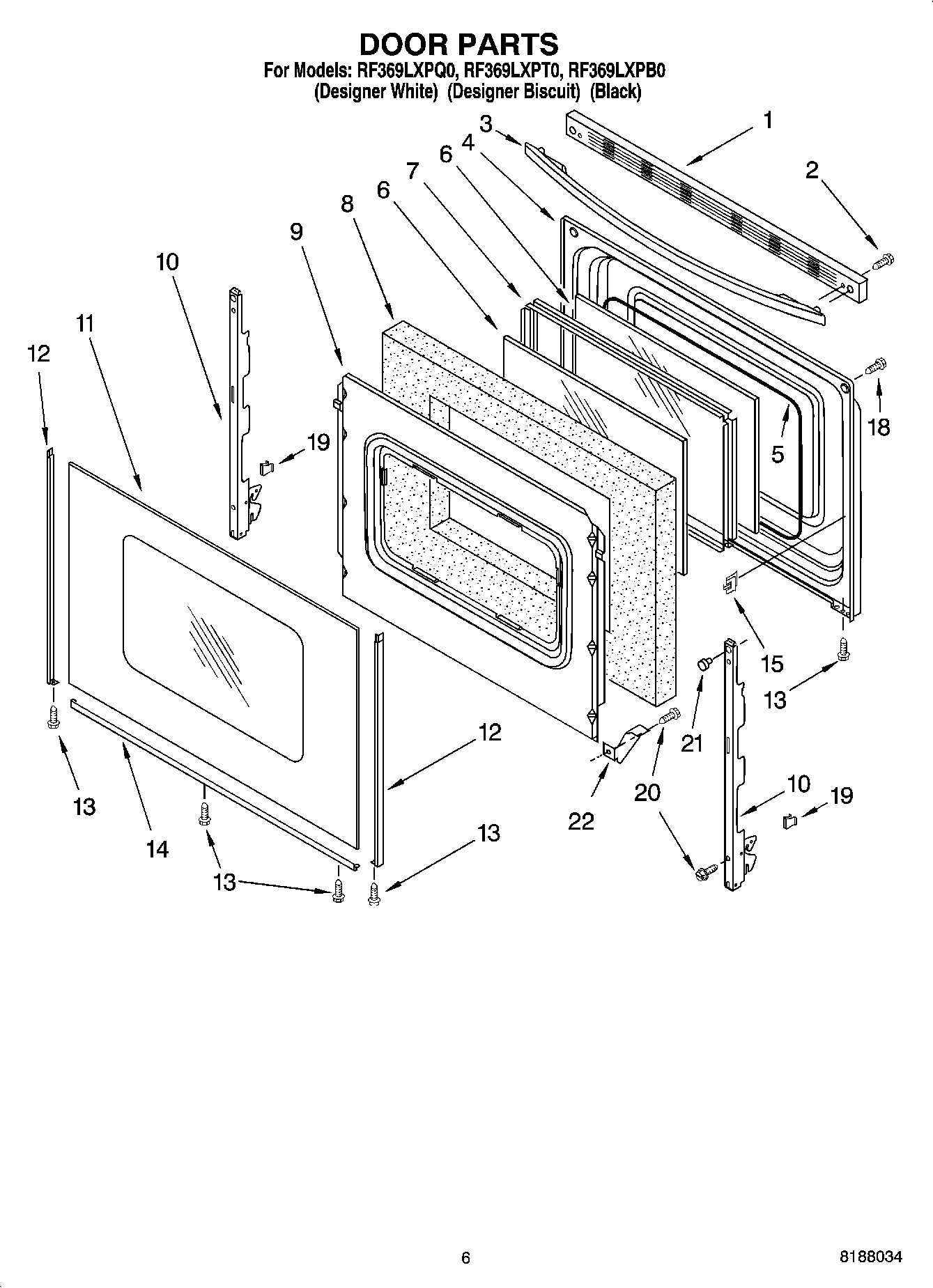

RF369LXPQ0 05 – DOOR PARTS, OPTIONAL PARTS

RF369LXPQ0 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF369LXPQ0 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI122988A
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL ARI122995A
WPL ARI122994A
WPL ARI122993A
WPL ARI122992A
WPL ARI122991A
WPL ARI122990A
WPL 8523718
WPL 4454241
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI122989A
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4392899 Whirlpool Biscuit Touch-Up Paint
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer (Biscuit)
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523178 Whirlpool Door Trim
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
22WP3196794 Whirlpool Glass Bracket
