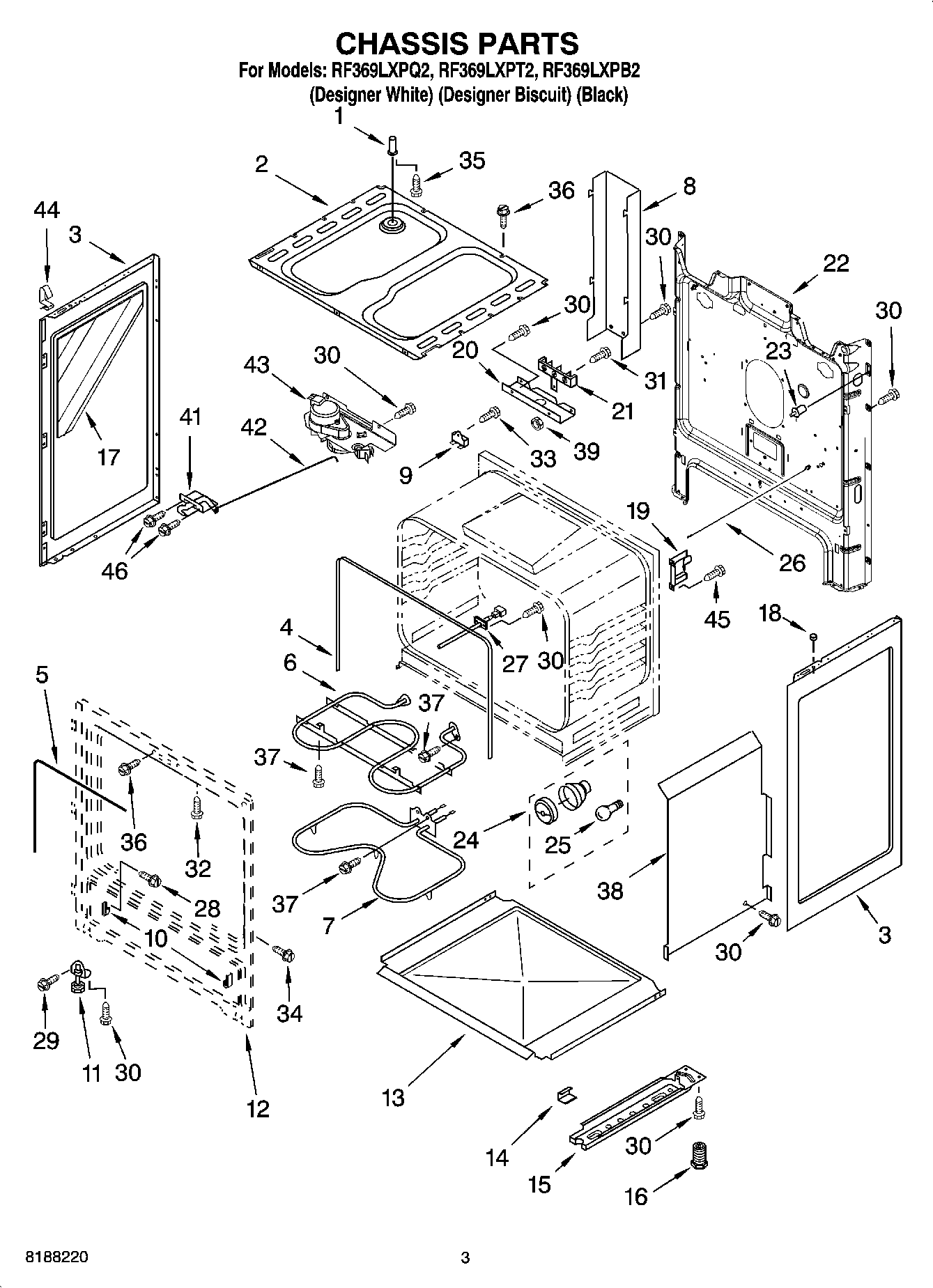

RF369LXPQ2 03 – CHASSIS PARTS

RF369LXPQ2 03 – CHASSIS PARTS

Written by

in

RF369LXPQ2 03 – CHASSIS PARTS

Products

PositionProduct
19755804 Whirlpool Oven Vent Tube
2W11699791 Whirlpool Burner Box
3W10162246 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4Seal, Oven Flange
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
8WPW10326122 Whirlpool Black Cover
9WP3196548 Whirlpool Thermal Fuse
10WPW10114344 Whirlpool Drawer Glide
11WP3196037 Whirlpool Leveling Foot
12Frame, Front Not Serviced
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Insulation
18238614 Whirlpool Bumper Hinge
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP9761958 Whirlpool Range Terminal Block
22Back, Main
23W11243424 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
269757239 Whirlpool Oven Door Rod
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29Screw
31WP3400016 Whirlpool Screw Assembly
32SCREW
333196172 Whirlpool Oven Screw
34WP7101P246-60 Whirlpool Screw
35WP3196567 Whirlpool Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38Retainer, Side (2)
39WP112432 Whirlpool Nut Assembly
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43WPW10107830 Whirlpool Stove Door Lock Latch Assembly
44Clip – Mounting
45WP3196557 Whirlpool Screw
46WP8272612 Whirlpool Insulation
46WPW10208653 Whirlpool Insulation
46W11169708 Whirlpool Screw
46Insulation
