RF369LXPT1 05 – DOOR PARTS, OPTIONAL PARTS

RF369LXPT1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

RF369LXPT1 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI123041A
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Harness, Wire (Pyro Rocker)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	WPL ARI123040A
	WPL ARI123039A
	WPL ARI123038A
	WPL ARI123037A
	WPL ARI123036A
	WPL ARI123035A
	WPL 9758173
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI123042A
	WP3196154 Whirlpool Screw Assembly
	Wire (14 Ga. 150 c Orange)
	814381 Whirlpool Pin
	FOIL, ALUMINUM OVEN (18“ X 25 )
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPW10208653 Whirlpool Insulation
	W11447673 Whirlpool Range Tip Anchor
	4392899 Whirlpool Biscuit Touch-Up Paint
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	WPL 799832
	511873 Whirlpool Refrigerator Paint

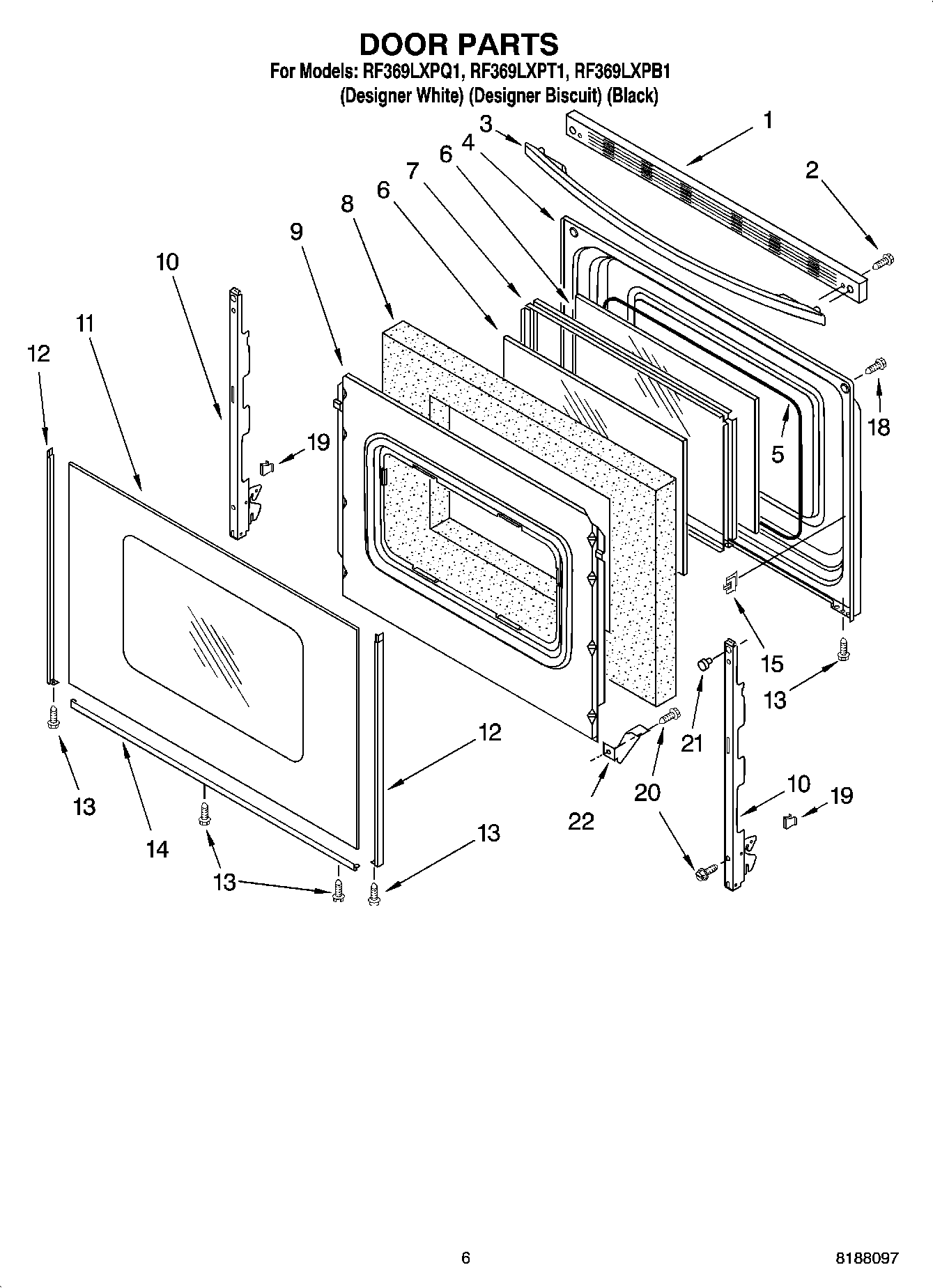

1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
12	WP8523166 Whirlpool Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	WP3196794 Whirlpool Glass Bracket
