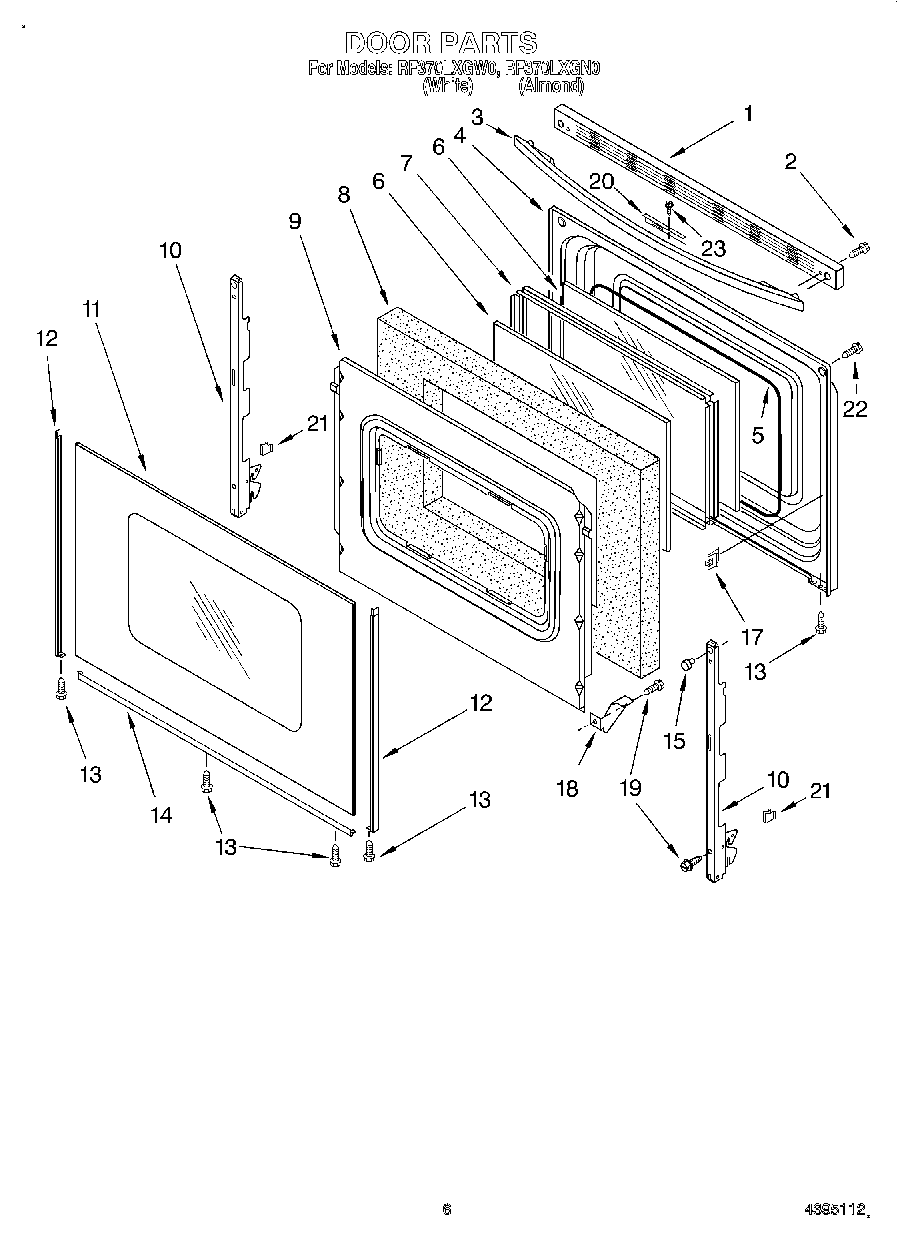

RF370LXGN0 05 – DOOR, LIT/OPTIONAL

RF370LXGN0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF370LXGN0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	WP3196154 Whirlpool Screw Assembly
	Harness, Wire (Door Switch)
	3196696 Whirlpool Clip
	Literature (Installation, Instructions (Template))
	3400964 Whirlpool Oven Clip
	3184020 Whirlpool Oven Wire
	Literature (Instruction, Installation)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 8053623
	814381 Whirlpool Pin
	Literature Parts (Tech Sheet)
	Safer Cooking Tips
	Clip, Ground Wire
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
15	238614 Whirlpool Bumper Hinge
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	Wire (12 Ga. 150 c Black)
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 200 c Brown)
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	1
23	Grease
23	72113 Whirlpool Touch-Up Paint
23	WP3400832 Whirlpool Screw
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	350942 Whirlpool Spray Paint
23	WPL 72112
23	Platinum (Uncut)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	511873 Whirlpool Refrigerator Paint
23	WPL 799832
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	350930 Whirlpool White Spray Paint
