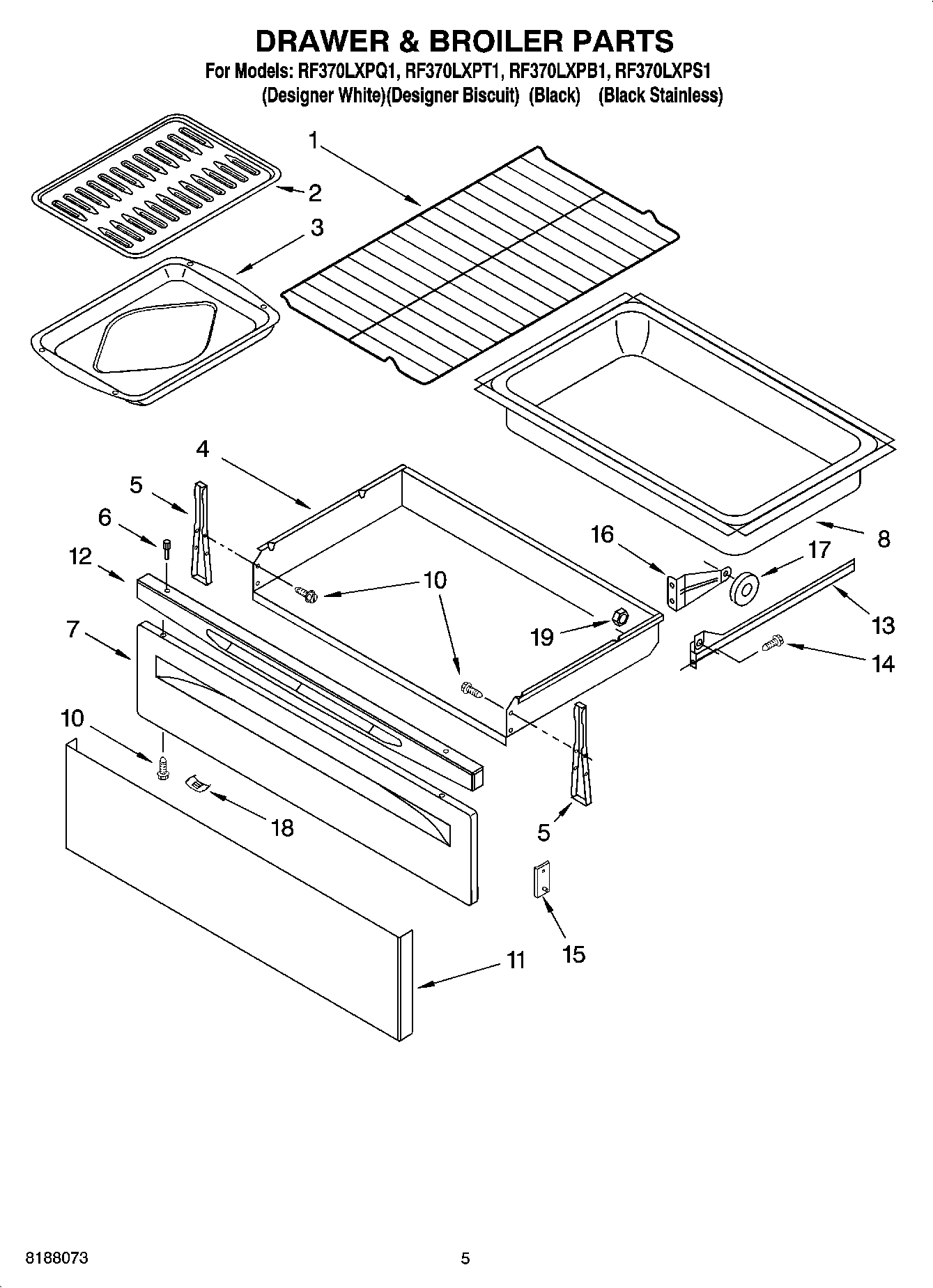

RF370LXPB1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11219377 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
8Liner, Drawer
10WP3400832 Whirlpool Screw
11Panel, Stainless
12Handle
13Rail, Drawer (Right Hand)
13Rail, Drawer (Left Hand)
14WP3196175 Whirlpool Screw
15Spacer, Glide
16W10838990 Whirlpool Mounting Bracket
17814229 Whirlpool Primary Roller
18WP9781235 Whirlpool Clip
19WP487939 Whirlpool Refrigerator Nut
