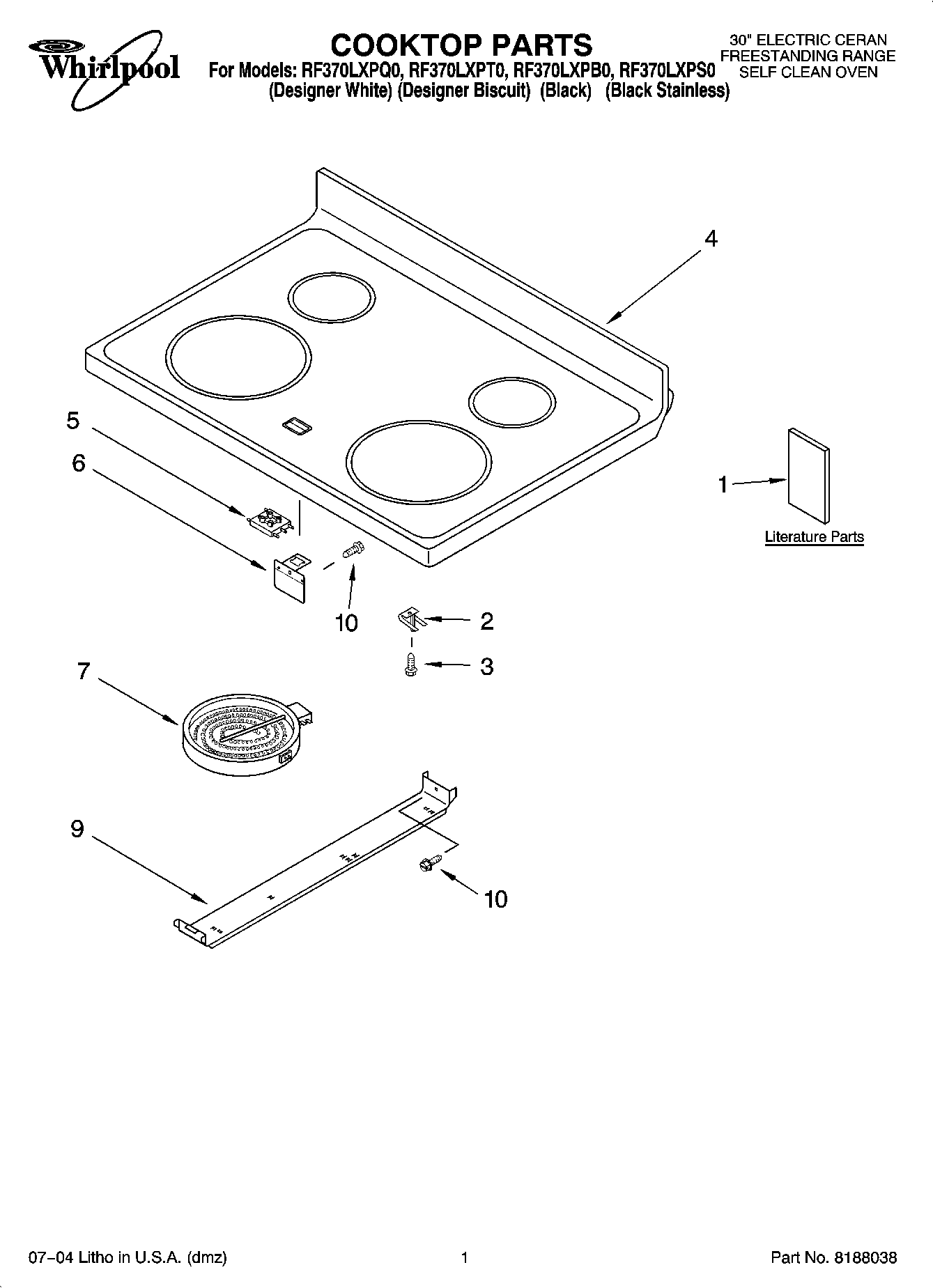

RF370LXPQ0 01 – COOKTOP PARTS

RF370LXPQ0 01 – COOKTOP PARTS

Written by

in

RF370LXPQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions Anti-Tip Template
1English/French
1Guide, Use & Care
1Tech Sheet
1English/Spanish
1Safe Cooking Tips
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Biscuit (T Model))
4Cooktop (White (Q Model))
4Cooktop (Black (B & S Model))
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W11047722 Whirlpool Radiant Surface Element
7ELMNT-SURF
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
