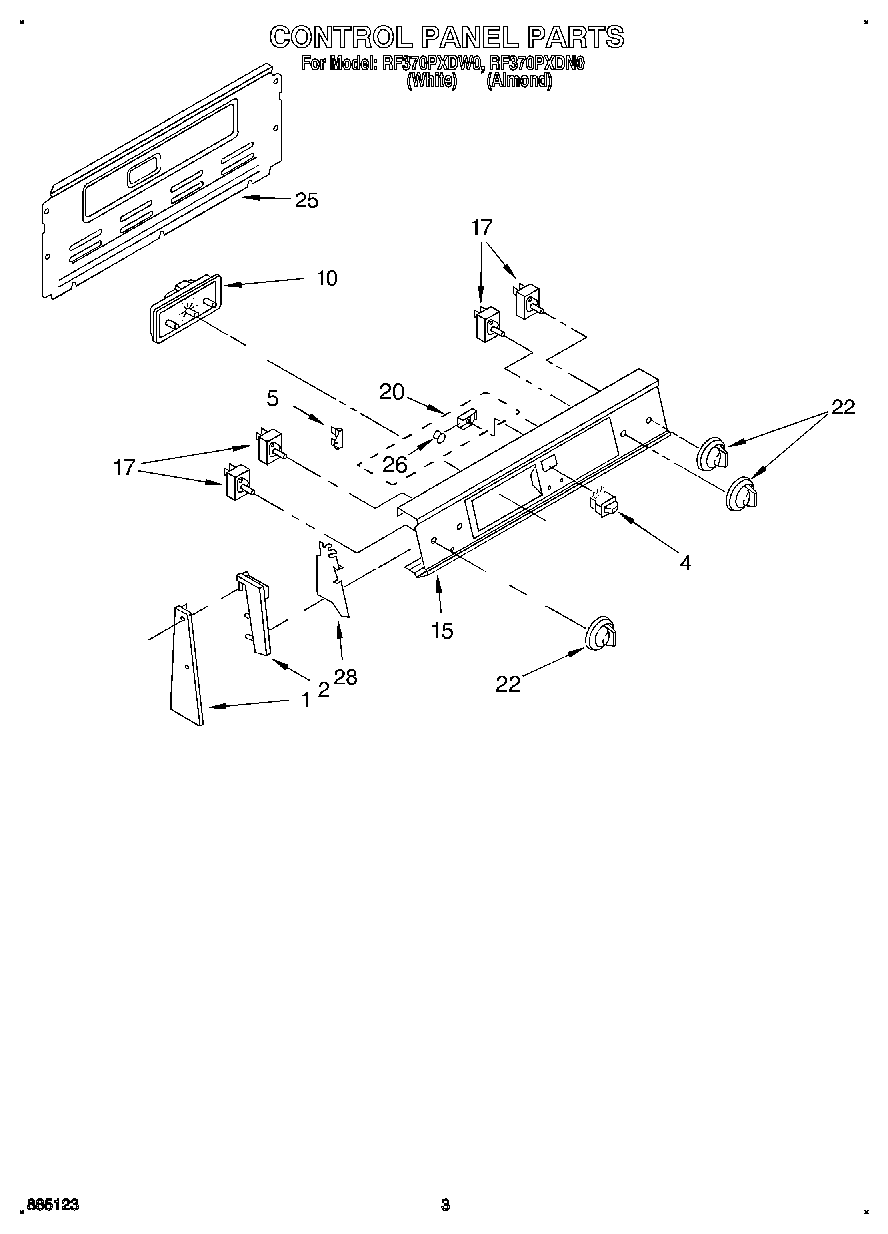

RF370PXDN0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap, R.H. (Black)
2	Screw,
4	Switch, Rocker
5	Fuse, Thermal
10	Electronic Control (White/Almond Mdl.)
15	Panel, Control (Black)
17	WP3149400 Whirlpool Oven Infinite Switch
17	Screw, 8-32 x 3/16 (2)
17	WP3148952 Whirlpool Oven Infinite Switch
20	Indicator Light (Surface Unit On)
22	WP3196231 Whirlpool Knob
25	Rear Cover Contr
25	SCREW
26	Lens, Amber
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
