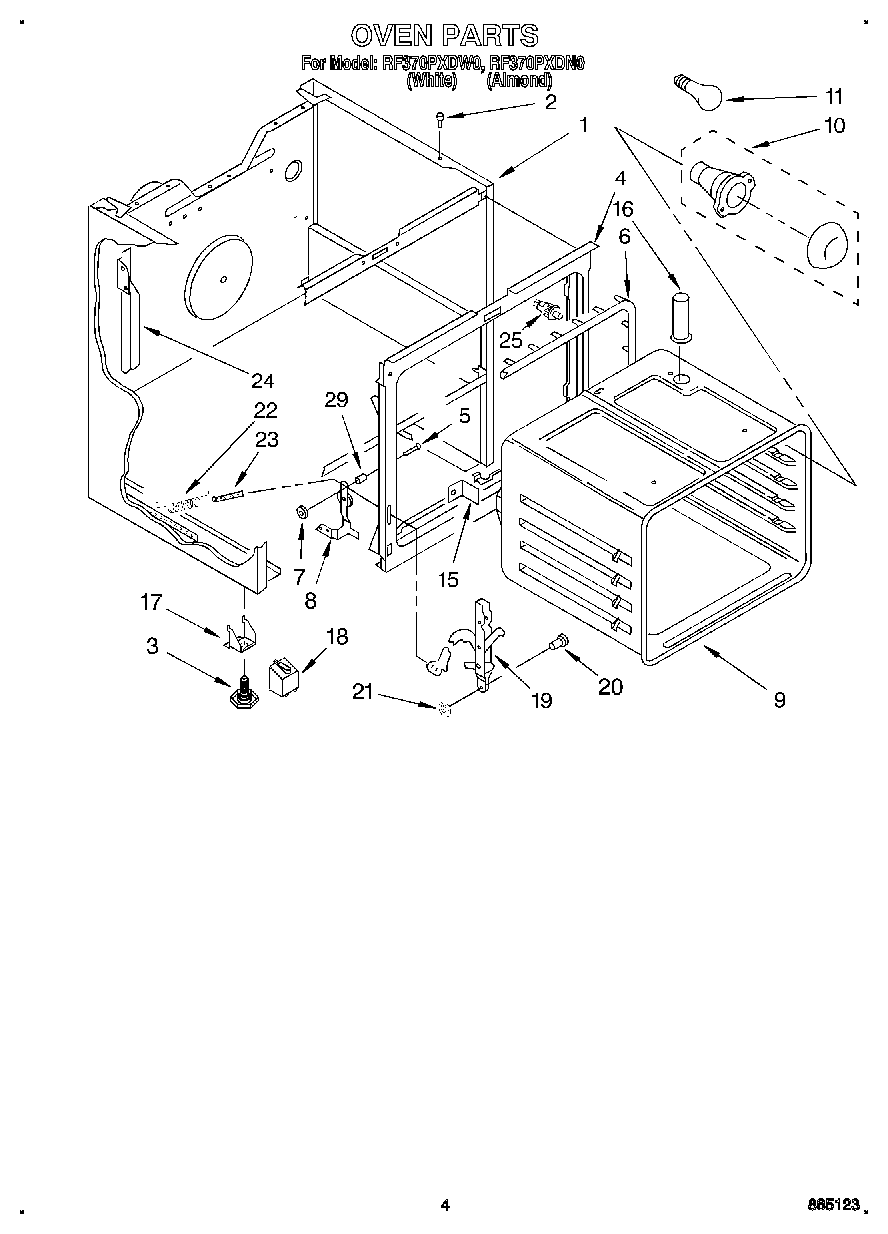

RF370PXDW0 03 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Screw (Top)
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	9755804 Whirlpool Oven Vent Tube
17	Support, Foot (2)
18	Cover, Foot (2)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	SCREW
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Switch, Door
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	WPL 3169093
29	Snubber, Door (2)
29	WPL 3169094
