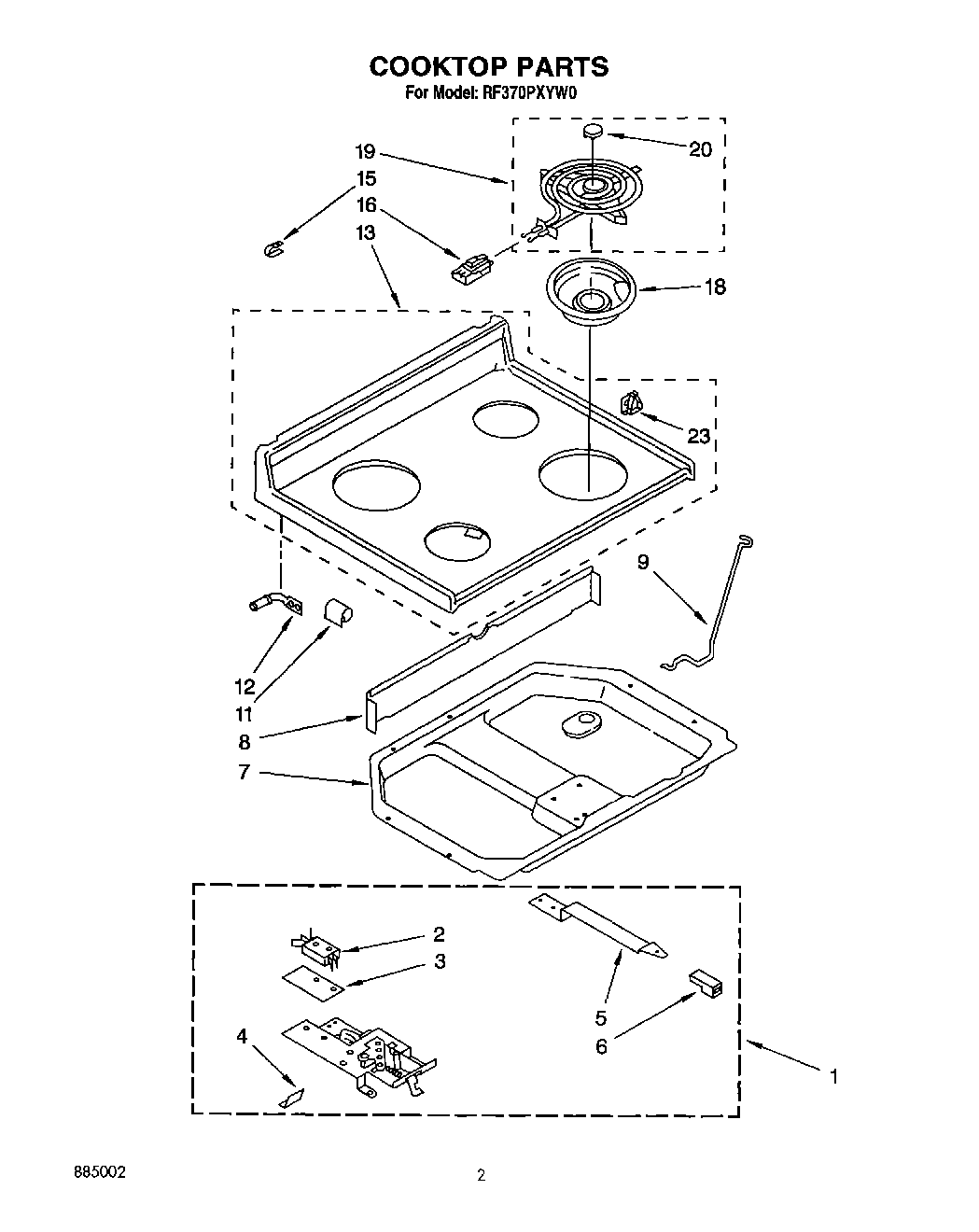

RF370PXYW0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3150288
	WPL LIT3147395
	WPL LIT3183707
1	Latch Asm Complete W/Wiring Harness (White/Almond)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
4	Screw
5	WP486579 Whirlpool Air Conditioner Screw
5	Handle, Latch
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
18	WPW10290350 Whirlpool Stove Drip Bowl
18	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	814103 Whirlpool Clip
23	WP487887 Whirlpool Refrigerator Screw
23	Nut (4)
