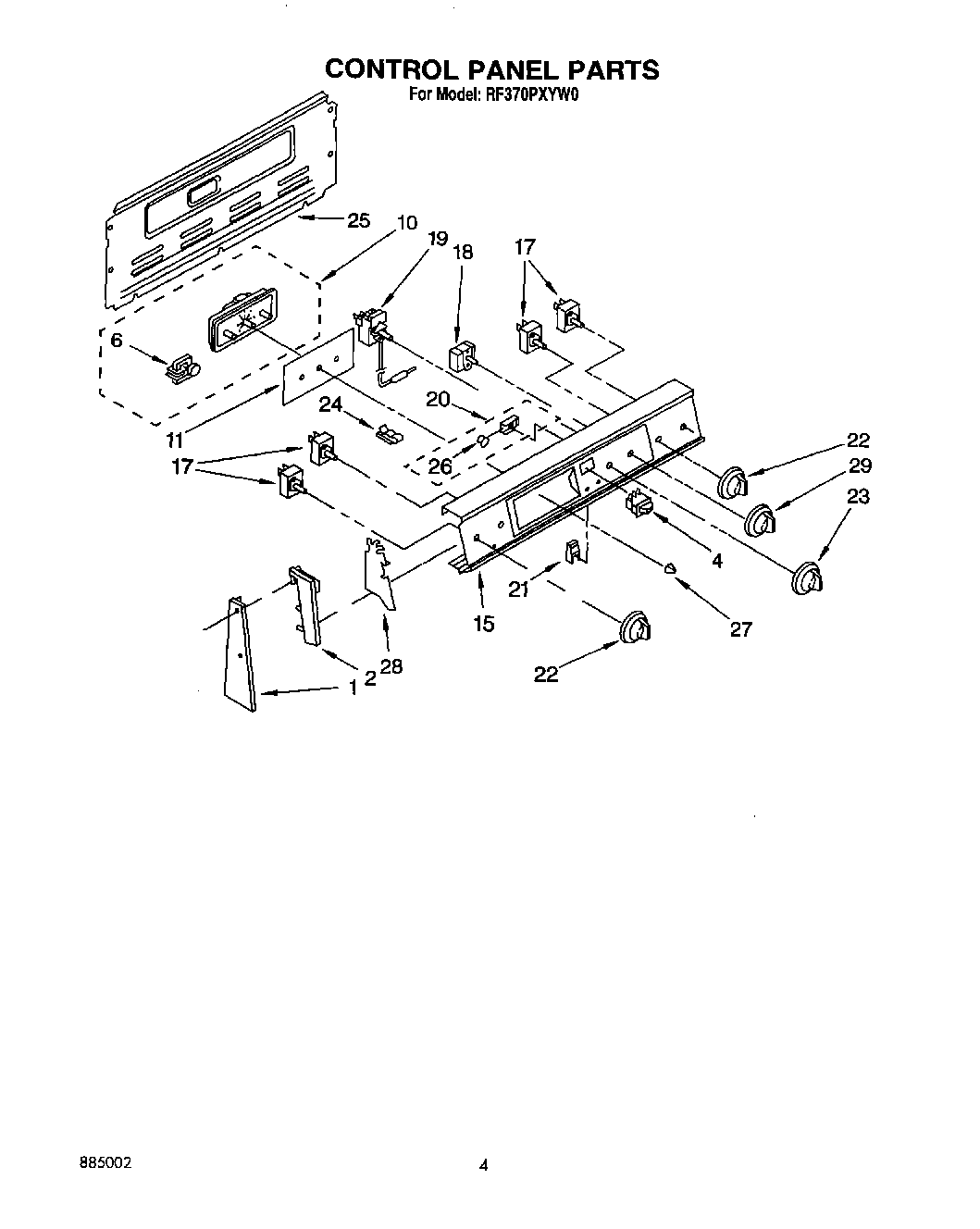

RF370PXYW0 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
10	Timer, Control
11	Glass, Timer
15	Washer
15	Panel, Control (White/Almond)
17	WP3149404 Whirlpool Oven Surface Element Switch
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
22	Knob, (4) Infinite Switch (White/Almond/Gold)
23	Knob (Temp) (White/Almond)
24	Clip, Tube
25	Harness-Conduit Asm.
25	SCREW
26	Lens, Amber
27	WP3169181 Whirlpool Knob
28	Shield (2)
28	WP965173 Whirlpool Dishwasher Screw
29	Knob (Selector)
